À propos du produit
Cisco HyperFlex™ Systems unlock the full potential of hyperconvergence. The systems are based on an end-to-end software-defined infrastructure, combining software-defined computing in the form of Cisco Unified Computing System (Cisco UCS) servers; software-defined storage with' the powerful Cisco HX Data Platform and software-defined networking with the Cisco UCS fabric that will integrate smoothly with Cisco Application Centric Infrastructure (Cisco ACI™). Together with a single point of connectivity and hardware management, these technologies deliver a preintegrated and adaptable cluster that is ready to provide a unified pool of resources to power applications as your business needs dictate.
- Connect USB-enabled devices via 2 USB ports
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- 12Gb/s SAS interface for high speed and reliability
- Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
- Perform computational tasks effectively accrediting the Xeon Platinum processor
Spécifications techniques
| Storage | |
| Optical Drive Type | No |
| Warranty | |
| Additional Warranty Information |
|
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 8 MB |
| I/O Expansions | |
| Number of Total Expansion Bays | 24 |
| Total Number of Expansion Slots | 5 |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Gigabit Ethernet | |
| Operating System | |
| Operating System Supported | Windows Server 2019 Standard |
| Windows Server 2019 Datacenter | |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Number of VGA Ports | 1 |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Plug/Connector Type | C14 |
| Memory | |
| Maximum Memory Supported | 8 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Intel Optane Memory Ready | Yes |
| Total Number of Memory Slots | 32 |
| Physical Characteristics | |
| Weight (Approximate) | 61.73 lb (28000 g) |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.42" (86.87 mm) |
| Width | 16.90" (429.26 mm) |
| Depth | 30" (762 mm) |
| Processor | |
| Processor Supported | Xeon Gold |
| Xeon Platinum | |
| Xeon Bronze | |
| Xeon Silver | |
| 64-bit Processing | Yes |
| Number of Processors Supported | 2 |
| General Information | |
| Product Type | Server Barebone System |
| Manufacturer Part Number | HXAF-E-240-M6SX |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |

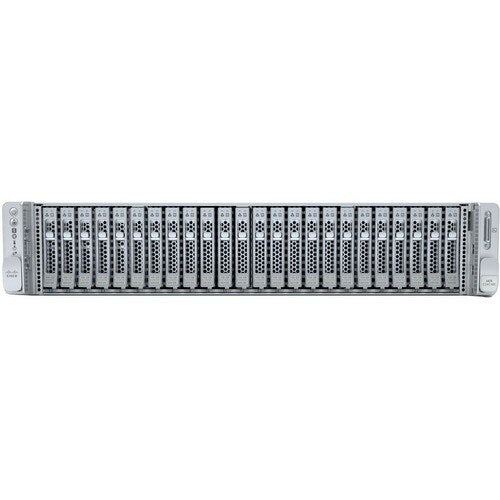

| Product Name | HyperFlex HX240C M6 Barebone System |
| Product Line | HyperFlex |
| Product Series | HX240C M6 |
| Brand Name | Cisco |
