À propos du produit

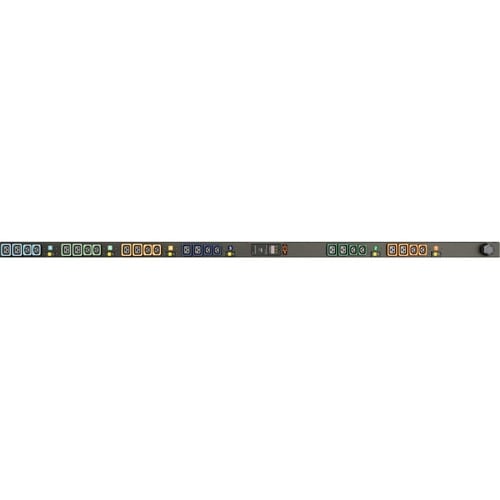

The I10068L provides real-time power metrics to help prevent overloads and safely optimize load levels. Using Visible Light Communication (VLC) technology, I10068L optically transmits power usage data from its LED display to a handheld device over the Geist Mobile App, presenting comprehensive real-time power usage data down to the phase and circuit levels. With the Geists Upgradeable hot-swap technology, users may easily transform Metered PDUs to Monitored by replacing the Interchangeable Monitoring Device (IMD) module, without causing any interruption.
- PDU provides active metering enabling energy optimization and circuit protection
- Metered PDU offers reliable, rack-mount and multi-outlet power source
Spécifications techniques
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Input Current | 60 A |
| Power Rating (Watt) | 17.20 kW |
| Physical Characteristics | |
| Length | 72" (1828.80 mm) |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Width | 2.25" (57.15 mm) |
| Depth | 3.44" (87.38 mm) |
| Mounting Orientation | Vertical |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | I10068L |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | MN01D8W1-24PBB8-6PS15B0A10-S |
| Product Name | MN01D8W1-24PBB8-6PS15B0A10-S 24-Outlets PDU |
| Brand Name | Vertiv Geist |
| Technical Information | |
| Protection Type | Overcurrent Protection |
| Plug/Connector Type | 3P+E (IP44) |
| Phase | Three Phase |
| Receptacle Type | U-Lock IEC 60320 C13 |
| U-Lock IEC 60320 C19 | |
| PDU Type | Metered |
| Receptacle Detail | 12 x U-Lock IEC 60320 C13 |
| 12 x U-Lock IEC 60320 C19 | |
| Plug/Connector Detail | 1 x 3P+E (IP44) |
