À propos du produit

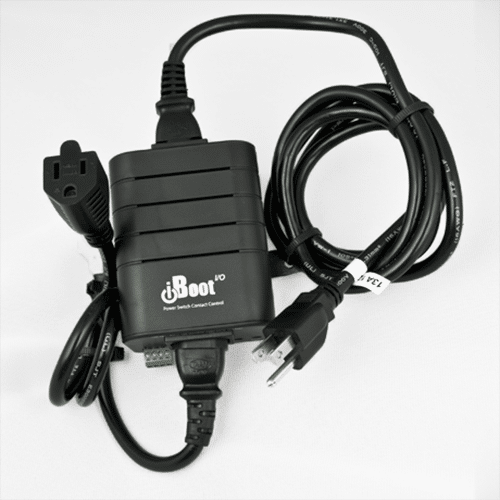

Dataprobe iBoot-IO Ethernet & Internet Relay Control
Single-Outlet, Contact Closure, and Logic Level Remote Power Control!
Leverage your existing GPIO contact closures or logic levels into AC power control with iBoot-IO. A single outlet power switch with I/O control, iBoot-IO allows you to easily integrate remote power control into your existing management system and manage devices remotely. iBoot-IO is perfect for a remote reboot, test automation, environmental control, security access, or any remote or automated facilities. Four models are available to cover any I/O Controlled power application. Select between default power ON typically for remote reboot applications or default power OFF to reverse the logic of the inputs. Models are also available for either wet or dry control inputs. Wet (Logic Level) inputs trigger on +3 to +12 VDC and are suitable for TTL and RS-232 control signals. Request a hands-on demo of our products here!
Top Features
- UL Listed Power Switch
- 12 Amps Switching 120 VAC
- 10 Amps Switching 240 VAC
- Contact Closure Input
- Positive Feedback Output
- Screw Terminal I/O connections
- Default Power ON Model
- Default Power OFF Model
Dataprobe iBoot-IO Relay Control Features
Instant Remote Control
From closing a gate on a ranch to causing an alarm to sound, to managing a boiler room from another building, iBoot-IO gives you the flexibility to monitor and respond to physical alert conditions from wherever you are.
iBoot-IO is easy to install - just attach it to the device you want to control, plug it into the power outlet and close the control contacts, and you'll gain remote access.
Powerful Features
iBoot-IO uses industry-standard IEC connections and ships complete with input and output cords for North America. It's available in four versions: default power on, a standard for remote reboot applications, and default power off, where closure is required to turn the power on. Also, select between dry contact closure versions and wet logic level versions:
Specifications of iBoot-IO GPIO Controlled Power Features
- Power: 105 - 240 VAC Auto Ranging
- Power Switching:
- 12 Amps at 105-125 VAC
- 10 Amps at 210-240 VAC
- Power Connectors:
- Power Inlet:
- IEC 320 C13 Plug.
- Line cord for North America Included. 16AWGX3C
- Power Out:
- IEC 320 C14 Receptacle.
- Extension Cord for N. America Included. 16AWGX3C
- Power Inlet:
- External I/O:
- Three-position removable screw terminals. 18AWG maximum. The maximum distance to control the relay is 330 feet/100m using a 24AWG wire.
- I Control Input:
- Dry Contact Version iBoot-IO:
- Dry Contact Closure OnlyLead Sense Version - iBoot-IO-LS
- Open, <1.5 VDC
- Asserted: +3-12 VDC
- Voltages > 1.5 <3 VDC are an undefined state and will result in unpredictable power status.
- G Ground: Common Ground
- O Feedback Output: High(Open) = Power OFF,
- Low (Ground) = Power ON
- I Control Input:
- Three-position removable screw terminals. 18AWG maximum. The maximum distance to control the relay is 330 feet/100m using a 24AWG wire.
- Physical:
- Dimensions: H x W x D: 2.0"" x 3.2"" x 4.2"" (60mm x 82mm x 107mm)
- Weight: 8.6 oz. / 244g
- Operating Temperature: 0 to 50 Deg. C
- Reliability:
- MTBF 420,000 Hours
- Operating Cycles 10,000,000 Mechanical. 100,000 at Maximum Load
- Compliance:
- UL/cUL UL60950
- Listed I.T.E File No. E225914
- CE Directives 89/336/EEC, 92/31/EEC, and 93/68/EEC
- RoHS/WEEE
- FCC Part 15 Class B
Spécifications techniques
Dataprobe iBoot-IO Ethernet & Internet Relay Control
Single-Outlet, Contact Closure, and Logic Level Remote Power Control!
Leverage your existing GPIO contact closures or logic levels into AC power control with iBoot-IO. A single outlet power switch with I/O control, iBoot-IO allows you to easily integrate remote power control into your existing management system and manage devices remotely. iBoot-IO is perfect for a remote reboot, test automation, environmental control, security access, or any remote or automated facilities. Four models are available to cover any I/O Controlled power application. Select between default power ON typically for remote reboot applications or default power OFF to reverse the logic of the inputs. Models are also available for either wet or dry control inputs. Wet (Logic Level) inputs trigger on +3 to +12 VDC and are suitable for TTL and RS-232 control signals. Request a hands-on demo of our products here!
Top Features
- UL Listed Power Switch
- 12 Amps Switching 120 VAC
- 10 Amps Switching 240 VAC
- Contact Closure Input
- Positive Feedback Output
- Screw Terminal I/O connections
- Default Power ON Model
- Default Power OFF Model
Dataprobe iBoot-IO Relay Control Features
Instant Remote Control
From closing a gate on a ranch to causing an alarm to sound, to managing a boiler room from another building, iBoot-IO gives you the flexibility to monitor and respond to physical alert conditions from wherever you are.
iBoot-IO is easy to install - just attach it to the device you want to control, plug it into the power outlet and close the control contacts, and you'll gain remote access.
Powerful Features
iBoot-IO uses industry-standard IEC connections and ships complete with input and output cords for North America. It's available in four versions: default power on, a standard for remote reboot applications, and default power off, where closure is required to turn the power on. Also, select between dry contact closure versions and wet logic level versions:
Specifications of iBoot-IO GPIO Controlled Power Features
- Power: 105 - 240 VAC Auto Ranging
- Power Switching:
- 12 Amps at 105-125 VAC
- 10 Amps at 210-240 VAC
- Power Connectors:
- Power Inlet:
- IEC 320 C13 Plug.
- Line cord for North America Included. 16AWGX3C
- Power Out:
- IEC 320 C14 Receptacle.
- Extension Cord for N. America Included. 16AWGX3C
- Power Inlet:
- External I/O:
- Three-position removable screw terminals. 18AWG maximum. The maximum distance to control the relay is 330 feet/100m using a 24AWG wire.
- I Control Input:
- Dry Contact Version iBoot-IO:
- Dry Contact Closure OnlyLead Sense Version - iBoot-IO-LS
- Open, <1.5 VDC
- Asserted: +3-12 VDC
- Voltages > 1.5 <3 VDC are an undefined state and will result in unpredictable power status.
- G Ground: Common Ground
- O Feedback Output: High(Open) = Power OFF,
- Low (Ground) = Power ON
- I Control Input:
- Three-position removable screw terminals. 18AWG maximum. The maximum distance to control the relay is 330 feet/100m using a 24AWG wire.
- Physical:
- Dimensions: H x W x D: 2.0"" x 3.2"" x 4.2"" (60mm x 82mm x 107mm)
- Weight: 8.6 oz. / 244g
- Operating Temperature: 0 to 50 Deg. C
- Reliability:
- MTBF 420,000 Hours
- Operating Cycles 10,000,000 Mechanical. 100,000 at Maximum Load
- Compliance:
- UL/cUL UL60950
- Listed I.T.E File No. E225914
- CE Directives 89/336/EEC, 92/31/EEC, and 93/68/EEC
- RoHS/WEEE
- FCC Part 15 Class B
