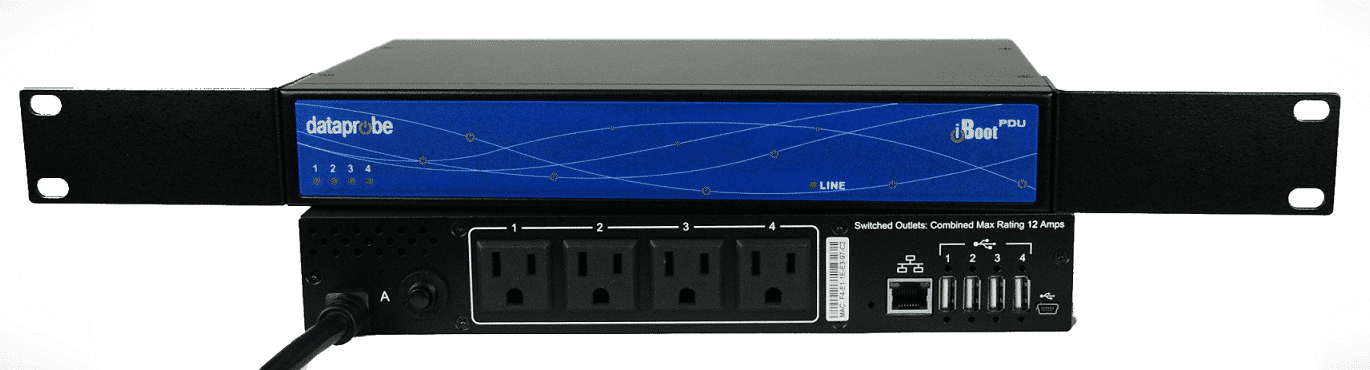

The IBOOT-PDU4A-N15 is a web-accessible managed PDU with an independent outlet. It allows multiple users to reboot from anywhere remotely using any preferred web browser, Telnet client or SNMP manager.
SIMPLE INTERFACE
The web browser interface provides a means of managing outlets. One master unit can be connected to up to 15 expansion units, with the ability to handle 128 outlets from a single web page interface.
The page displays the status indication of each outlet, along with the current draw across all inputs and auto-pinging. Each outlet can be selected individually, or multiple can be picked for simultaneous operation.
<iframe width=""624"" height=""351"" src=""https://www.youtube.com/embed/wHmixH8rGOM"" title=""iBoot-PDU Web Interface"" frameborder=""0"" allow=""accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture"" allowfullscreen></iframe>
CLOUD FUNCTIONALITY
The iBoot Cloud Service (iBCS) lets users access and control multiple units in different locations from a single portal with one sign-on. The service makes using this device easier by combing all units into one interface. Other perks include:
- Users with Dynamic IP addresses can always access their iBoot from any location
- Service providers manage multiple customer accounts with diverse security configurations
MULTI-LOCATION AND MULTI-USER
One iBoot-PDU can be linked to and manage multiple additional PDUs, creating a single, easy-to-manage system. Outlets can be grouped together to be controlled simultaneously. Outlets can be on the same PDU or across all PDUs in the system.
AUTOMATION
Users can monitor relevant parameters and take immediate action by building complex notification and reports systems. They can set trigger points to create responsive sequences, including:
- AutoPing
- Temperature with an accessory probe
- Mains Current
- Mains Voltage
- Time of Day
IBOOT-PDU4A-N15 Switched & Web Managed 115V, 15A PDU features:
- Independently controllable outlets designed to provide power distribution and remote power control
- Telnet and serial access use the same Command Line Interface (CLI) structure and syntax
- Simple web browser interface is easy to use
- Multiple outlets can be linked together in named groups and managed together
- Additional devices can be managed from a single unit
- Monitors voltage, current and temperature and automatically respond to the environment
- Real-Time event control - Set automatic power actions based on a schedule
- Supports landline modens
- Setup and Control functions can be linked to any SNMP v2c compatible manager
Specs:
- Current: 15A
- Voltage: 115V
- Input Plug: (Single) NEMA 5-15P, 10ft Chord
- Outlets: (4) NEMA 5-15R
- Mounting: 1U Rack Mount or Desktop
- Monitoring: Temperature (optional), Voltage, Current (A), Date-Time
- Switching: Outlets, Outlet Groups, Complex Custom Sequences
- Management: Web Browser, Free Cloud, Local Network, Telnet/CLI, Landline Modem (optional), SNMP, Advanced Automation
