Startech

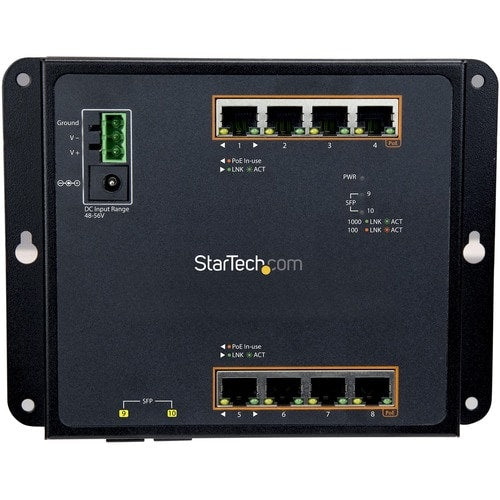

COMMUTATEUR GBE GÉRÉ 8 PORTS COMMUTATEUR GBE 8 PORTS POE + 2 PORTS SFP

COMMUTATEUR GBE GÉRÉ 8 PORTS COMMUTATEUR GBE 8 PORTS POE + 2 PORTS SFP

Prix habituel $662.11 CAD
Prix habituel $761.43 CAD Prix promotionnel $662.11 CAD
-13% OFF Épuisé
Frais d'expédition calculés à l'étape de paiement.
StarTech.com Commutateur industriel Gigabit PoE+ 8 ports avec 2 emplacements SFP MSA 30 W Couche/L2 - Commutateur réseau Ethernet géré IP-30/-40 °C à 75 °C - Commutateur industriel Gigabit PoE+ - 8 emplacements RJ45 + 2 emplacements SFP MSA +75 °C à -40 °C - Max. 30 W par port PoE - Boîtier IP-30 - MTBF 500 000 h - Résistance aux vibrations/chocs/chutes libres - ESD 6 kV - Gestion couche/L2 complète - Montage DIN/mural inclus - Bornier ou adaptateur secteur

VPN : IES101GP2SFW SKU : 685622NDS UPC : 65030871198

  • POWER OVER ETHERNET : Commutateur industriel Gigabit PoE+ à 8 ports avec 2 ports SFP, adapté aux appareils PoE tels que les caméras, les capteurs et les points d'accès Wi-Fi utilisant des câbles réseau Cat5e ou supérieurs ; jusqu'à 30 W par port PoE avec un budget d'alimentation total de 200 W pour le commutateur
  • CONCEPTION PLATE : Le boîtier compact en acier permet un accès frontal pour une installation et un dépannage faciles ; indices de protection IP-30 / vibrations / chocs / chute libre et 6 kV ESD ; options de montage sur rail DIN ou mural disponibles avec tout le matériel inclus ; capuchons anti-poussière RJ45 inclus
  • CAPACITÉS DE GESTION COMPLÈTES DE COUCHE 2 : Interface utilisateur graphique Web intégrée / Telnet / SSH ; ce commutateur peut être géré pour configurer des fonctionnalités telles que les ports / VLAN / Agrégation de liens / SNMP / QoS / Spanning Tree, entre autres

Bloc de texte

Remise sur volume disponible - Demandez un devis.

Afficher tous les détails

Recently Viewed

COMMUTATEUR GBE GÉRÉ 8 PORTS COMMUTATEUR GBE 8 PORTS POE + 2 PORTS SFP

Résumé des informations sur le produit

COMMUTATEUR GBE GÉRÉ 8 PORTS COMMUTATEUR GBE 8 PORTS POE + 2 PORTS SFP

À propos du produit

Easily deploy or scale your network with this Gigabit Ethernet switch, by adding eight copper Gigabit Ethernet ports (PoE+) and two fiber-optic SFP slots. This IP30 industrial network switch provides intelligent Layer 2 management. Its rugged, compact design and wall-mount option with front access make it ideal for demanding applications, even where space is limited.

Expand your network

This versatile switch adapts to your network needs by providing two open SFP slots and eight RJ45 Ethernet ports (PoE+), providing both fiber and copper connections in a single network device. The MSA compliant SFP ports are compatible with 100/1000Mbps networks. The network switch enables you to connect up to eight RJ45 PoE+ devices, so different users can share files and devices, such as printers and scanners, over a LAN connection.

Supports PoE+ for flexible use

Dual power input (terminal block and DC plug) provides flexible power options. The switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (200W budget).

Wall-mountable with front access

Wall-mount the compact Gigabit switch to provide convenient front access to ports and indicators. It's ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable.

Efficient Layer 2 management

The switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability.

Rugged IP30 industrial design

This rugged network switch features an IP30-rated metal housing and extended temperature range of -40°C to 75°C, which makes it ideal for a wide range of operating conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments.

Reliable connection for seamless network performance

With support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required.

The IES101GP2SFW is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

  • POWER OVER ETHERNET: Industrial 8-port Gigabit PoE+ switch with 2 SFP ports, suitable for PoE devices such as cameras, sensors and WiFi APs using Cat5e or higher network cables; Up to 30W per PoE port with 200W total power budget for the switch
  • FLAT DESIGN: Compact steel enclosure allows front access for easy installation and troubleshooting; IP-30 / vibration / shock / free fall ratings & 6kV ESD; DIN rail or wall mounting options available with all hardware included; RJ45 dust caps included
  • FULL LAYER 2 MANAGEMENT CAPABILITIES: Built in web-based GUI / Telnet / SSH; This switch can be managed to configure features like Ports / VLAN / Link Aggregation / SNMP / QoS / Spanning Tree among others
  • TECH SPECS: 8 x RJ45; 2 x Open SFP slot (MSA Compliant); 48-56VDC power input; 10/100/1000 Mbps; MTBF 500,000+ hours; Redundant power inputs with terminal block kit or AC adapter (not included); IEEE 802.3af & IEEE 802.3at Compliant
  • THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 8 port Gigabit switch is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance

Spécifications techniques

Management & Protocols
ManageableYes
Power Description
PoE (RJ-45) PortYes
I/O Expansions
Expansion Slot TypeSFP
Number of SFP Slots2
Total Number of Expansion Slots2
Interfaces/Ports
Network (RJ-45)Yes
ModularYes
Total Number of Network Ports8
Port/Expansion Slot Details8 x Gigabit Ethernet PoE+
2 x Gigabit Ethernet Expansion Slot
Media & Performance
Network Technology1000Base-SX/LX
10/100/1000Base-T
Ethernet TechnologyGigabit Ethernet
Media Type SupportedOptical Fiber
Twisted Pair
General Information
Product TypeEthernet Switch
Manufacturer Part NumberIES101GP2SFW
Manufacturer Website Addresshttp://www.startech.com
Packaged Quantity1 Each
ManufacturerStarTech.com
Product Name8-Port PoE+ Gigabit Ethernet Switch plus 2 SFP Connections
Brand NameStarTech.com
Miscellaneous
Package Contents
  • 8-Port PoE+ Gigabit Ethernet Switch plus 2 SFP Connections
  • 1 x Terminal Block Connector
  • 4 x Screw Anchors
  • 4 x Screws
  • 4 x Attaching Pins
  • 4 x Locking Pins
  • 4 x Washers
  • 4 x Magnets
  • 1 x DIN Rail
  • 3 x DIN-rail Screws
  • 8 x RJ45 Dust Caps
  • 2 x SFP Dust Caps
  • 1 x Quick-start Guide
Country of OriginTaiwan
Environmentally FriendlyYes
TAA CompliantYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
Physical Characteristics
Weight (Approximate)1.36 lb (618.02 g)
Form FactorWall Mountable
Magnetic Mount
Rail-mountable
Length5.30" (134.62 mm)
Height1" (25.40 mm)
Width7" (177.80 mm)
Product MaterialSteel
Network & Communication
Layer Supported2
Networking StandardsIEEE 802.1s
IEEE 802.1w
IEEE 802.1x
IEEE 802.3ad
IEEE 802.1ab
IEEE 802.1D
IEEE 802.1p
IEEE 802.1Q
