Easily deploy or scale your network with this Gigabit Ethernet switch, features four dedicated PoE+ enabled ports, and one dedicated open SFP slot plus the flexibility of a switchable RJ-45/Open SFP port for use as an uplink or for non-PoE devices. It features an IP-30 housing, compact design, and is wall and DIN rail mountable.
Power Over Ethernet & Low VoltageIdeal for powering PoE devices in situations where a traditional power source is not available; it accepts power as low as 12VDC for applications such as transportation (auto/bus/rail) and solar. PoE output is boosted to PoE/PoE+ standards (IEEE 802.3af/at, 55V) in applications where non-standard 12V (or higher) power sources are available.
With a total power budget of 120W, this PSE Ethernet switch provides up to 30W of power per PoE port to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:
- Cameras
- Sensors
- Wi-Fi access points
Uses Cat 5e (or higher rated) Ethernet cabling.
Flexible Power Input & Low VoltagePower input flexibility between 12/24/48/56V DC and low voltage DC inputs reduces the complexities of installation by avoiding additional in-line devices to boost power before it reaches the switch.

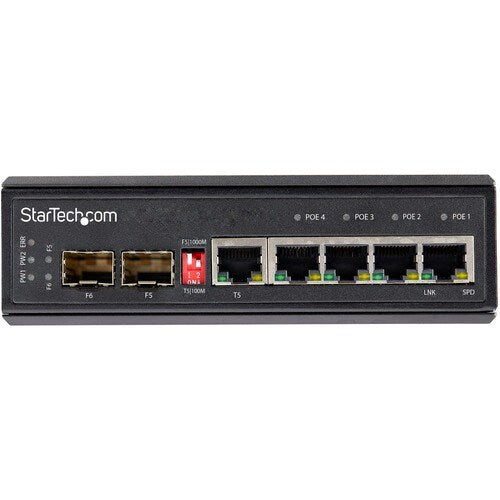

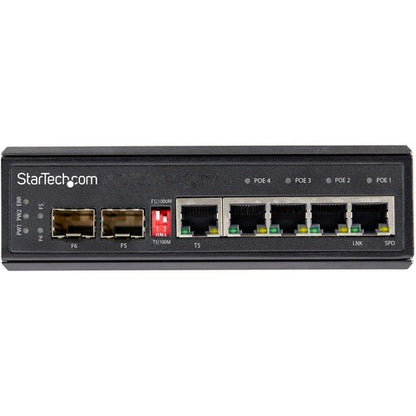

This unique switch allows for 5x RJ-45 ports (4x PoE) to be active + 1 SFP, or 4 x RJ-45 (all PoE) + 2 SFP, for 6 device connections total.
Designed for Harsh EnvironmentsIndustrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
- Vibration: EN 60068-2-6
- Shock: EN 60068-2-27
- Free-Fall: EN 60068-2-32
Includes an exterior aluminum heat sink for superior passive cooling; 600,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.

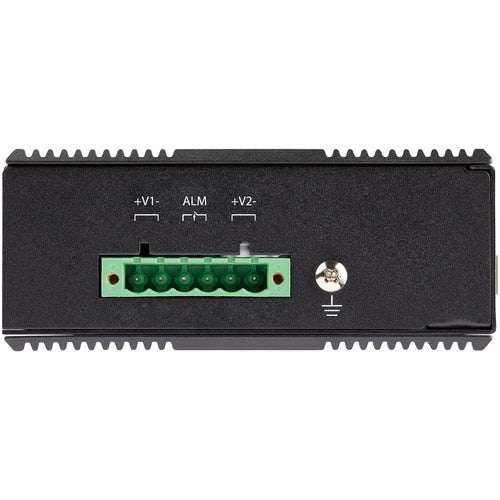

Dual Power InputsDual power inputs provide redundancy. Accepts dual terminal block power, allowing the product to be hardwired from multiple power sources for high availabilty applications.
The IES1G52UP12V is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- FIBER & PoE: Industrial 6 Port Gigabit Ethernet Switch IEEE 802.3af (PoE) or 802.3at (PoE+) 30W max per 4 x PoE ports PSE + 2 x open SFP slots | Use with devices like cameras, sensors, wi-fi APs
- TECH SPECS: 10/100/1000 Mbps Auto-Negotiation | Unmanaged | 6 Total Mixed Fiber/Copper Connections: 4 PoE ports + 1 SFP + 1 Flex Copper or SFP port (MSA Compliant) | Total power budget: 120W
- FLEXIBLE 12V POWER INPUT: Can be wired via dual redundant terminal block inputs with voltage as low as 12V DC, boosted as needed to PoE/PoE+ (55V) for applications like solar, rail, and automotive
- ROBUST DESIGN: Industrial Network Switch w/MTBF 500,000+hrs @ 50C | Vibration, shock & free fall rated | Rugged industrial IP-30 aluminum housing | -40C to 75C hardened operating temp | DIN/Wall Mount
- STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years | This Gigabit PoE switch is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
Spécifications techniques
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Plug/Connector Type | Terminal Block |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 120 W |
| I/O Expansions | |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Shared SFP Slot | Yes |
| Total Number of Expansion Slots | 2 |
| Media & Performance | |
| Network Technology | 1000Base-X |
| 1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Optical Fiber | |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3at |
| IEEE 802.3x | |
| IEEE 802.3af | |
| IEEE 802.3 | |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | IES1G52UP12V |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | Ethernet Switch |
| Brand Name | StarTech.com |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 5 |
| Port/Expansion Slot Details | 1 x Gigabit Ethernet Expansion Slot |
| 1 x Gigabit Ethernet TP/SFP Combo | |
| 4 x Gigabit Ethernet PoE+ | |
| Physical Characteristics | |
| Weight (Approximate) | 1.55 lb (703.07 g) |
| Form Factor | Wall Mountable |
| DIN Rail Mountable | |
| Length | 5.60" (142.24 mm) |
| Height | 1.70" (43.18 mm) |
| Width | 4.10" (104.14 mm) |
| Product Material | Steel |
| Aluminum |
