À propos du produit
Easily deploy or scale your network with this Gigabit Ethernet switch, features four dedicated PoE+ enabled ports, and one dedicated open SFP slot plus the flexibility of a switchable RJ-45/Open SFP port for use as an uplink or for non-PoE devices. It features an IP-30 housing, compact design, and is wall and DIN rail mountable.
Power Over Ethernet & 48V VoltageWith a total power budget of 120W, this PSE Ethernet switch provides up to 30W of power per PoE port to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:
- Cameras
- Sensors
- Wi-Fi access points
Uses Cat 5e (or higher rated) Ethernet cabling.
Designed for Harsh EnvironmentsIndustrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
- Vibration: EN 60068-2-6
- Shock: EN 60068-2-27
- Free-Fall: EN 60068-2-32
500,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.

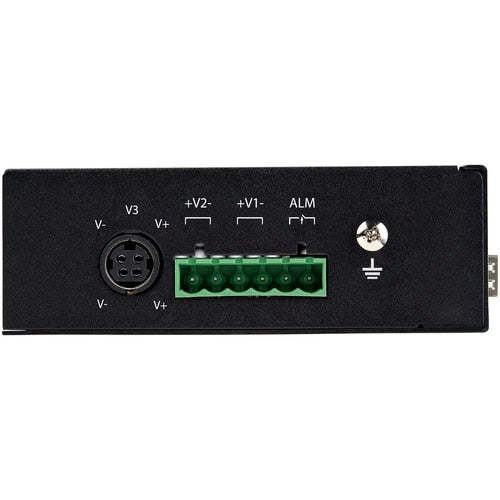

Dual Power InputsDual power inputs provide redundancy. Accepts terminal block power or DIN power connectors for additional power supply flexibility, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.
The IES1G52UPDIN is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- FIBER & PoE: Industrial 6 Port Gigabit Ethernet Switch IEEE 802.3af (PoE) or 802.3at (PoE+) 30W max per 4 x PoE ports PSE + 2 x open SFP slots | Use with devices like cameras, sensors, wi-fi APs
- FLEXIBLE POWER INPUT: Use a DIN power connector or hardwire using terminal block power, or use dual power sources for redundancy | Input voltage range is 48-56V DC
- ROBUST DESIGN: Industrial Network Switch w/MTBF 500,000+hrs @ 50C | Vibration, shock & free fall rated | Rugged industrial IP-30 aluminum housing | -40C to 75C hardened operating temp | DIN/Wall Mount
- TECH SPECS: 10/100/1000 Mbps Auto-Negotiation | Unmanaged | 6 Total Mixed Fiber/Copper Connections: 4 PoE ports + 1 SFP + 1 Flexible Copper or SFP port (MSA Compliant) | Total power budget: 120W
- STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years | This Gigabit PoE switch is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
Spécifications techniques
| Management & Protocols | |
| Manageable | No |
| I/O Expansions | |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Shared SFP Slot | Yes |
| Total Number of Expansion Slots | 2 |
| Media & Performance | |
| Network Technology | 1000Base-X |
| 1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | IES1G52UPDIN |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | Ethernet Switch |
| Brand Name | StarTech.com |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 5 |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet PoE+ |
| 1 x Gigabit Ethernet Expansion Slot | |
| 1 x Gigabit Ethernet TP/SFP Combo | |
| Physical Characteristics | |
| Weight (Approximate) | 1.09 lb (493.28 g) |
| Form Factor | DIN Rail Mountable |
| Wall Mountable | |
| Length | 5.60" (142.24 mm) |
| Height | 1.40" (35.56 mm) |
| Width | 4.10" (104.14 mm) |
| Product Material | Steel |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3ab |
| IEEE 802.3z | |
| IEEE 802.3af | |
| IEEE 802.3at | |
| IEEE 802.3u | |
| IEEE 802.3x | |
| IEEE 802.3 | |
| Power Description | |
| Power Source | Power Supply |
| PoE+ | |
| Power Consumption | 126 W |
| Plug/Connector Type | 4-pin Power DIN Connector Female |
| Terminal Block | |
| PoE (RJ-45) Port | Yes |
| Redundant Power Supply Supported | Yes |
| PoE Budget | 120 W |
