À propos du produit

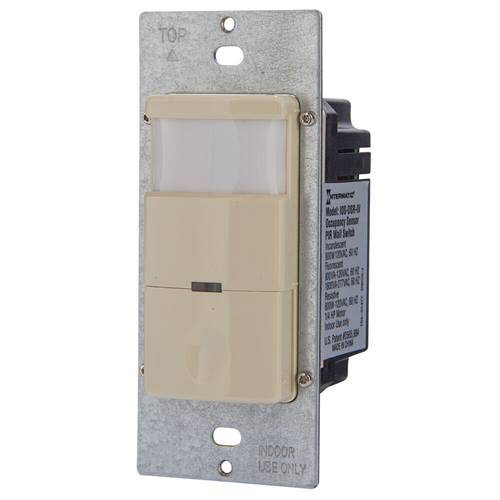

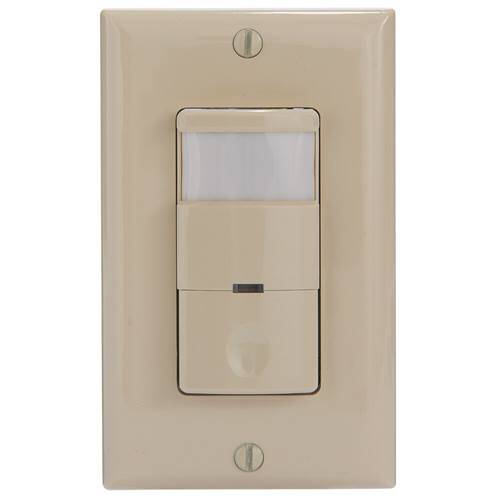

The Intermatic IOS-DSR-IV is a commercial grade wall mount occupancy sensor with vacancy mode suitable for incandescent, LED, fluorescent, ballasts and small motors/fans.
It does NOT require a neutral wire connection.
The IOS-DSR series uses PIR passive infrared technology to detect motion to automatically turn lights on when people enter and off after no motion is sensed.
It will automatically turn lights off in vacancy sensor mode, but users must turn them on manually.
As a commercial product, it features a 5-year limited warranty.
It's recommended for smaller rooms without partitions or obstacles.
Applications:
- Small office
- Copy room
- Closet
- Laundry room
Intermatic IOSDSR-IV In-Wall Commercial Occupancy Vacancy Sensor Features:
- PIR motion sensing
- Occupancy sensor
- Vacancy sensor mode
- Auto-off time delay 15 seconds to 30 minutes
- Self-adaptive off time adjusts itself to actual occupancy over time
- Coverage: 180 degrees, 1200 ft2 non obstructed
- Zero-crossing technology for long life and performance
- Adjustable ambient light sensor override
- Neutral connection NOT required
- Incandescent/Fluorescent/CFL/LED compatible
- Fits standard decorator wall plate (included)
- 5-year manufacturer's warranty
- Dimensions: 1 3/4"" H x 1 5/16"" W x 2 5/8""D
- cULus approved
Electrical Ratings:
- Incandescent 800W 120VAC
- Motor: 1/4 HP 120VAC
- Resistive: 800W 120VAC
- Inductive: 1600VA 2700VAC, 800VA 120VAC (electronic / magnetic ballasts)
- Tungsten 800W 120VAC
Spécifications techniques
The Intermatic IOS-DSR-IV is a commercial grade wall mount occupancy sensor with vacancy mode suitable for incandescent, LED, fluorescent, ballasts and small motors/fans.
It does NOT require a neutral wire connection.
The IOS-DSR series uses PIR passive infrared technology to detect motion to automatically turn lights on when people enter and off after no motion is sensed.
It will automatically turn lights off in vacancy sensor mode, but users must turn them on manually.
As a commercial product, it features a 5-year limited warranty.
It's recommended for smaller rooms without partitions or obstacles.
Applications:
- Small office
- Copy room
- Closet
- Laundry room
Intermatic IOSDSR-IV In-Wall Commercial Occupancy Vacancy Sensor Features:
- PIR motion sensing
- Occupancy sensor
- Vacancy sensor mode
- Auto-off time delay 15 seconds to 30 minutes
- Self-adaptive off time adjusts itself to actual occupancy over time
- Coverage: 180 degrees, 1200 ft2 non obstructed
- Zero-crossing technology for long life and performance
- Adjustable ambient light sensor override
- Neutral connection NOT required
- Incandescent/Fluorescent/CFL/LED compatible
- Fits standard decorator wall plate (included)
- 5-year manufacturer's warranty
- Dimensions: 1 3/4"" H x 1 5/16"" W x 2 5/8""D
- cULus approved
Electrical Ratings:
- Incandescent 800W 120VAC
- Motor: 1/4 HP 120VAC
- Resistive: 800W 120VAC
- Inductive: 1600VA 2700VAC, 800VA 120VAC (electronic / magnetic ballasts)
- Tungsten 800W 120VAC
