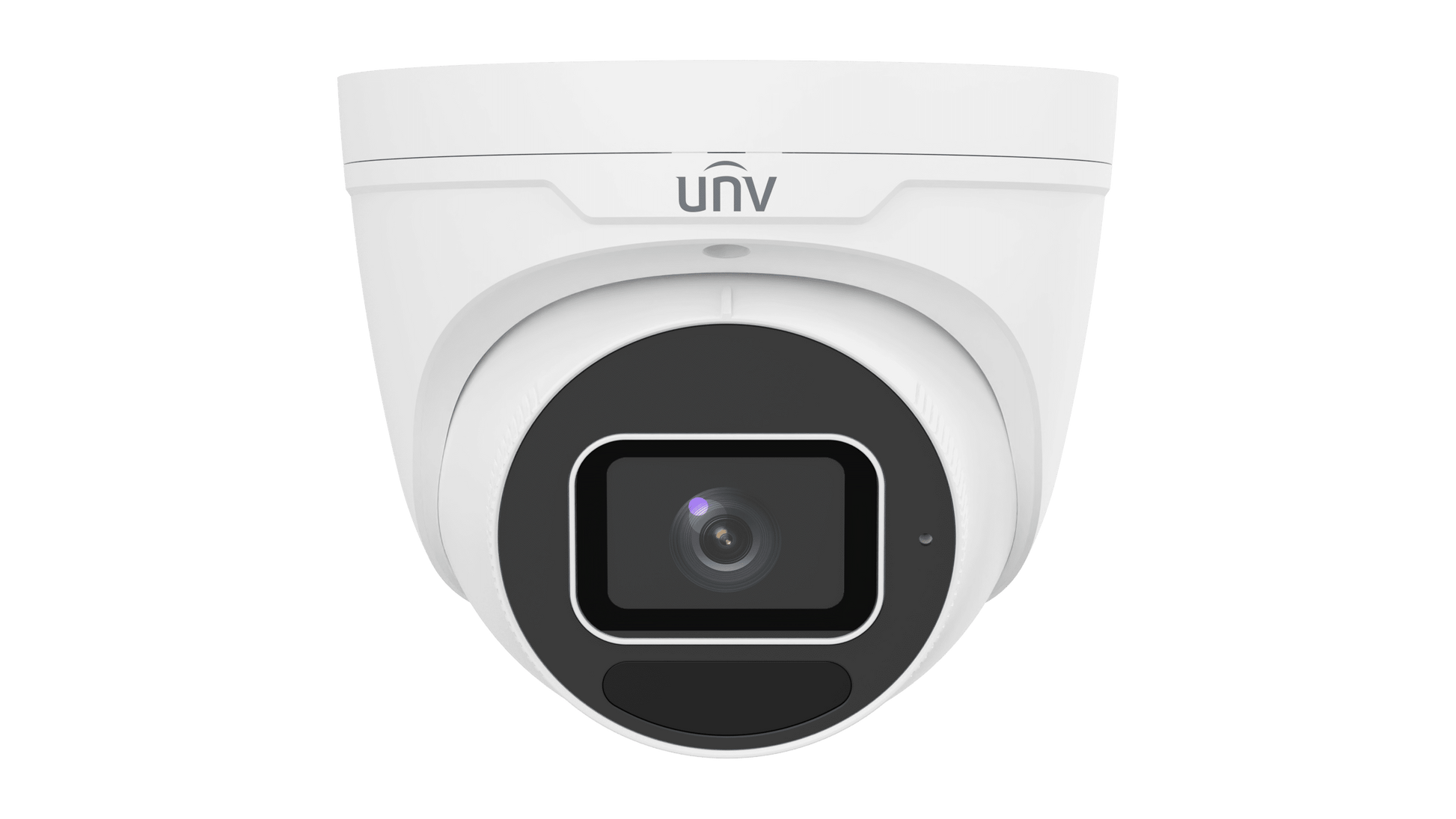

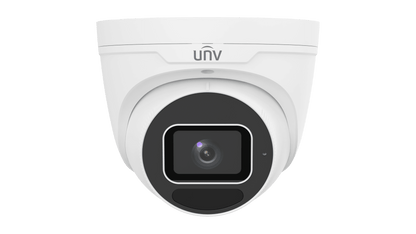

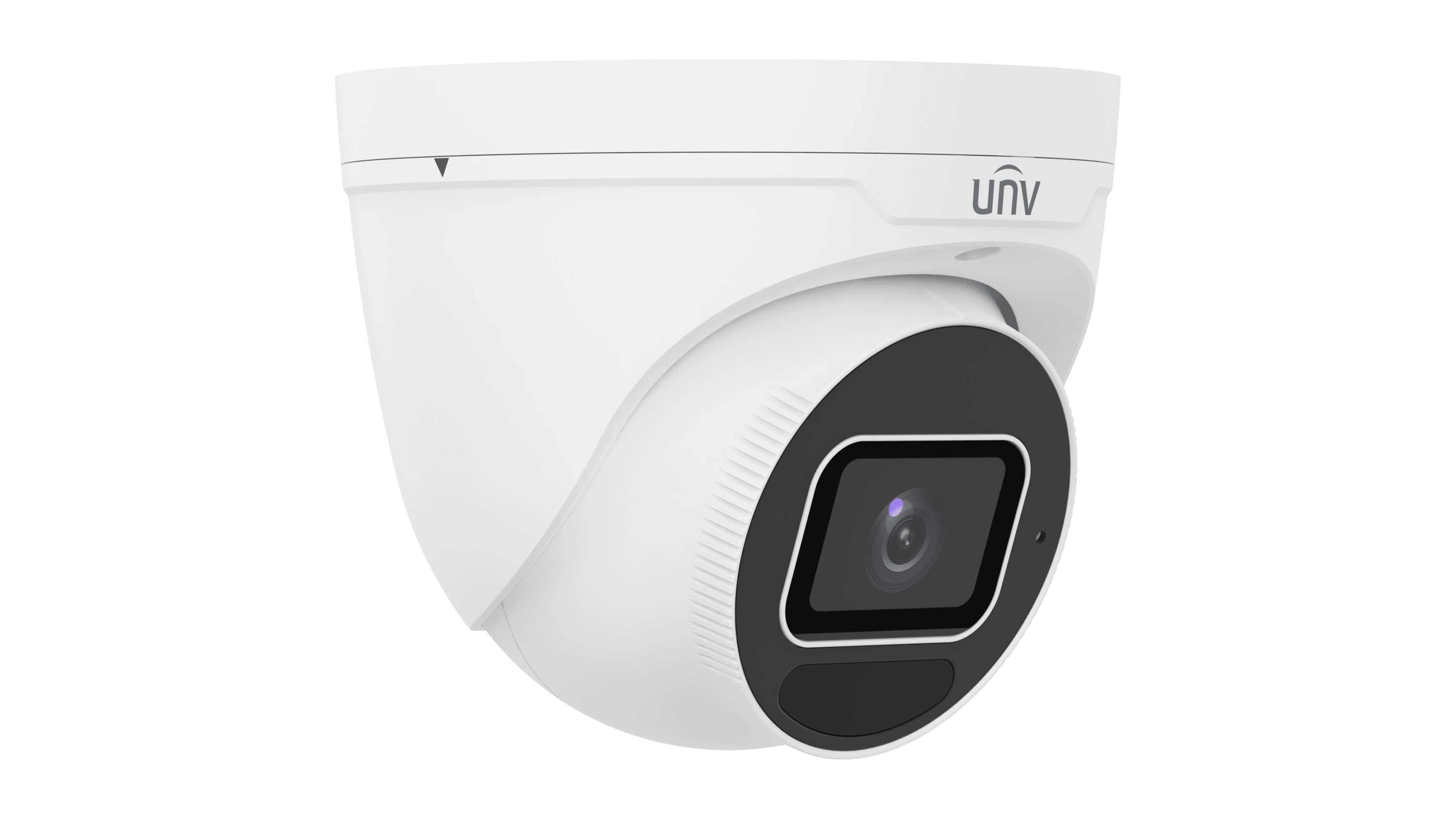

The Uniview 5MP Intelligent LightHunter Eyeball Turret Camera provides high fidelity, low-light performance at an excellent price point. Perfect for front-line security installation, smart features like intelligent target classification and smart intrusion significantly reduces false alarms and automatically focuses on human and vehicle targets. Uniview's LightHunter technology uses a wide aperture set at F1.6 to collect twice as much light as standard F2.0+ CCTV lenses, enabling full-colour recording even in environments as dim as 0.002 lux. The additional Smart IR automatically kicks in for even dimmer lighting, ensuring crystal-clear 24/7 recording, day or night up to 40m away. 130dB true WDR technology also ensures perfectly even lighting without blowouts or shadowing-- even in direct sunlight. IP67 protection ensures 24/7 indoor or outdoor installation in virtually any environment.
High-quality 5MP imaging with a 1/2.7'' CMOS sensor delivers crisp, clear HD video (2880 x 1620 @ 30 fps) in full-colour, even in low-light situations like rural properties, indoor server rooms and outbuildings, parking structures, pathways, and more. Additional smart analytics like people flow counting and crowd density monitoring can help manage high-traffic sites like outdoor events, commercial buildings, jobsites, etc.
Eyeball 'ball-in-socket' construction makes mounting and angling the camera simple and easy for installers, powered via PoE or DC12V (Ø5.5 mm coaxial power plug, sold separately). Built-in mic and audio out for optional speaker integration (not included) enables two-way audio for dedicated operator address, perfect for security offices and for remote addressing of trespassers, guests and visitors. Additional alarm input/output options enable users to integrate their camera system into a traditional panel alarm system; enabling system-wide alerting and automatic user notifications with minimal false alarms.
Includes microSD slot (supports up to 512GB) for additional external storage. Supports 9:16 corridor mode for filming sites in portrait orientation (ie. narrow walkways).
IPC3635SS-ADF28K-I1 Specs and Features
- Max Resolution: 5 MP
- Sensor: 1/2.7"" CMOS
- Min. Illumination:
- Colour: 0.002 lux (F1.6, AGC ON)
- 0 lux with IR on
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Adjustment Angle:
- Pan: 0° ~ 360°
- Tilt: 0° ~ 75°
- Rotate: 0° ~ 360°
- S/N: >56 dB
- WDR: 130 dB
- Focal Length: 2.8 mm
- Iris Type: Fixed
- Iris: F1.6
- Field of View
- (H) 110.0°
- (V) 58.7°
- (D) 130°
- Lens Type: Fixed
- DORI:
- (Detect) 63.0m (206.7ft)
- (Observe) 25.2m (82.7ft)
- (Recognize) 12.6m (41.3ft)
- (Identify) 6.3m (20.7ft)
- Supplemental Light: IR
- Illumination Distance (IR): 40 m (131.2 ft)
- IR On/Off Control: Auto/Manual
- Wavelength: 850 nm
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- H.264 Code Profile: Baseline profile, Main profile, High profile
- Frame Rate:
- Main Stream:5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps
- Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
- Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
- Video Bit Rate: 128 Kbps to 16 Mbps
- U-code: Supported
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Supported
- Video Stream: Triple Streams
- Auto Scene Match (ASM): Supported (Only WDR)
- White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Supported
- Flip: Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
- HLC: Supported
- BLC: Supported
- Defog: Digital Defog
- Smart Intrusion Prevention: Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
- People Counting: Supports People Flow Counting and Crowd Density Monitoring
- Attribute Collection: SIP with color retrieval
- Basic Detection: Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind
- General Function: Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output
- Audio Compression: G.711U, G.711A
- Audio Bitrate: 64 Kbps
- Built-in Mic: Supported
- Two-way Audio: Supported
- Audio I/O: 1 Input: impedance 35 k?, amplitude 2 V [p-p], 1 Output: impedance 600 ?, amplitude 2 V [p-p]
- Suppression: Supported
- Sampling Rate: 8 kHz
- Edge Storage: Micro SD, up to 512 GB
- Network Storage: ANR, NAS (NFS)
- Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
- Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
- Client: UNV-Link, UNV-Link Pro, EZStation
- Alarm I/O: 1/1
- Network: 1 × RJ45 10 M/100 M Base-TX Ethernet
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power Consumption: Max 6.0W
- Power Interface: Ø5.5 mm coaxial power plug
- Dimensions: Ø129 x 110mm (Ø5.1” x 4.3”) (Ø x H)
- Weight: 0.66kg (1.45lb)
- Material: Metal
- Working Environment: -30°C to 60°C (-22°F to 140°F), Humidity: ? 95% RH (non-condensing)
- EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130); FCC (FCC 47 CFR part15 B)
- Safety: CE-LVD (EN 62368-1); CB (IEC 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
- Protection: IP67 (IEC 60529)
