À propos du produit

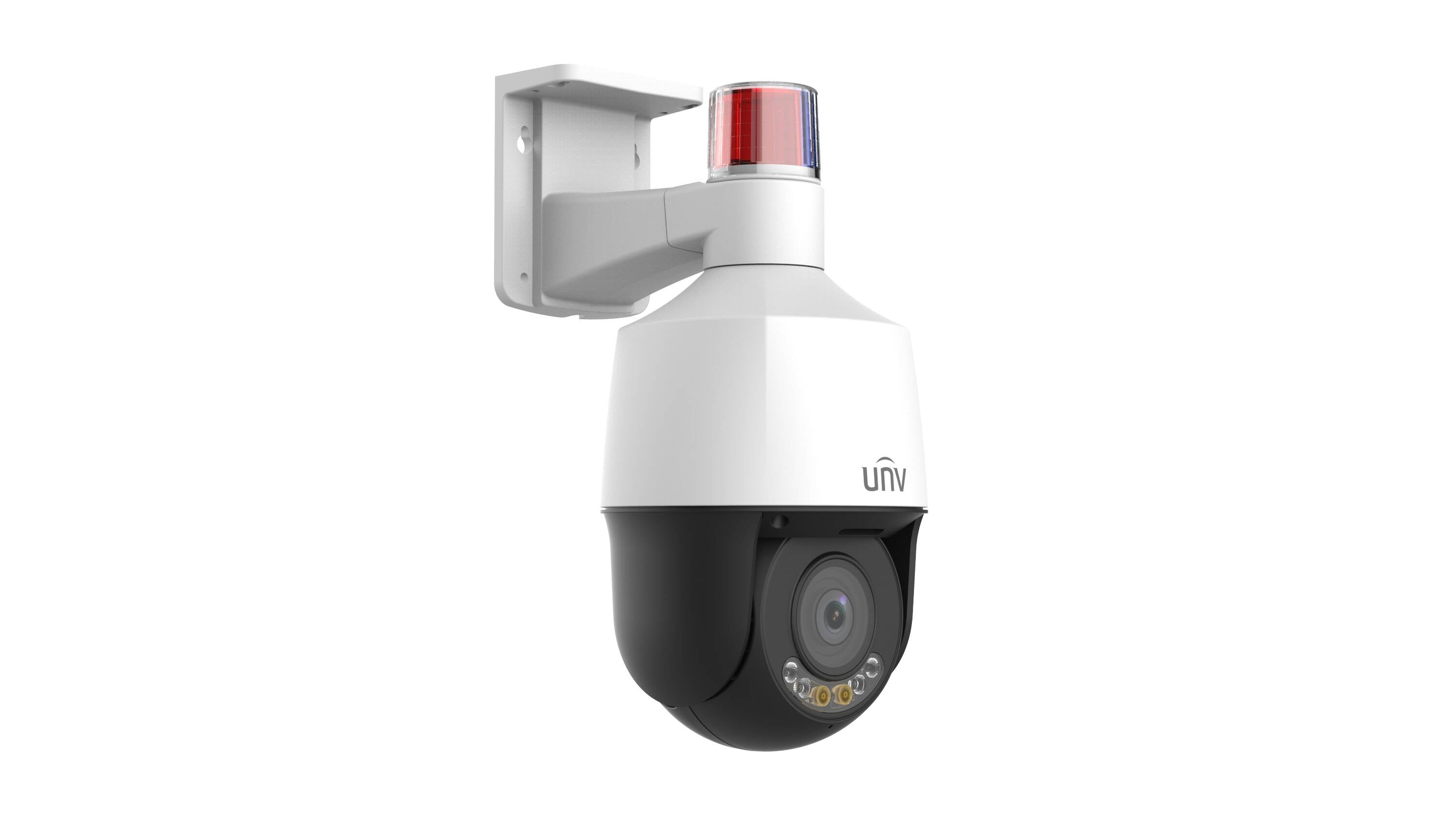

The Uniview Easy Series 5MP 5x Zoom ColorHunter PTZ Camera with Tri-Guard is a compact, high performance PTZ camera designed for low-light installs or sites where front-line security and trespasser deterrance is required. ColourHunter technology uses a wide aperture set at F1.2 to collect 3 times as much light as standard F2.0+ CCTV lenses, enabling full-colour recording even in environments as dim as 0.005 lux! Smart intrusion prevention like line crossing, enter/leave area and subject alarm filtering significantly reduces false alarms, and automatic or scheduled patrolling along with human subject tracking routines ensure that your whole property is protected.
The camera also features a built-in mic and speaker, as well as Tri-Guard bright flashing red and blue alarm lights for active deterrence of trespassers-- additional support for two-way audio and operator address creates a front-line security option for large or small security installs. Automatic Smart IR and white fill light ensures recording even when zero ambient light is available, illuminating subjects up to 50m away from the camera-- ideal for indoor or semi-covered installs like server rooms or outbuildings where no light is available; and 120dB true WDR technology also ensures perfectly even lighting without blowouts or shadowing-- even in direct sunlight.
Powered by PoE or 12VDC(±25%) with a Ø5.5 mm coaxial power plug (sold separately).
IPC6325LFW-AX5C-VG Specifications:
- Max Resolution: 5 MP
- Sensor: 1/2.7"" CMOS
- Min. Illumination:
- Colour: 0.005 Lux (F1.2, AGC ON)
- 0 Lux with IR
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 to 1/100000 s
- WDR: 120 dB
- S/N: >56 dB
- Lens Focal Length: 2.7 to 13.5 mm
- Optical Zoom: 5X
- Iris: F1.2
- Field of View
- (H): 106.9°~30.6°
- (V): 56°~17.7°
- (D): 131.5°-36.1°
- DORI:
- (Detect): 70.9 m ~ 247.5 m (232.5 ft ~ 812 ft)
- (Observe): 28.4 m ~ 99 m (93 ft ~ 324.8 ft)
- (Recognize): 14.2 m ~ 49.5 m (46.5 ft ~ 162.4 ft)
- (Identify): 7.1 m ~ 24.8 m (23.3 ft ~ 81.2 ft)
- Illumination Distance (Warm Light): 15 m (49.3 ft)
- Light On/Off Control: Auto/Manual
- Illumination Distance (IR): 50 m (164.0 ft)
- Wavelength: 850 nm
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- Frame Rate:
- Main Stream: 5MP (2880*1620), Max 30fps
- Sub Stream: 720P (1280*720), Max 30fps
- Third Stream: D1 (720*576), Max 30fps
- Video Bit Rate: 128 Kbps to 16 Mbps
- U-code: Supported
- ROI: Supported
- Video Stream: Triple Streams
- Privacy Mask: Up to 4 areas
- OSD: Up to 8 OSDs
- Basic Detection: Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind, Scene Change, Defocus Detection
- General Function: Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication
- Audio Compression: G.711U, G.711A
- Audio Bitrate: 128 Kbps
- Two-way Audio: Supported
- Suppression: Supported
- Sampling Rate: 16KHZ
- Edge Storage: Micro SD, up to 512 GB
- Network Storage: ANR, NAS (NFS)
- Exception Detection: Object Removed, Object Left Behind, Scene Change, Defocus Detection
- Auto Tracking: Support, target filtering: human only
- Smart Intrusion Prevention: Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
- People Counting: Supports People Flow Counting and Crowd Density Monitoring
- Network Protocols: TLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T, Profile M),API, SDK
- Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
- Client: EZStation, UNV-Link, UNV-Link Pro
- Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
- White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
- Digital Noise Reduction: 2D/3D DNR
- Flip: Normal, Flip Vertical, Flip Horizontal, 180°
- HLC: Supported
- BLC: Supported
- Smart IR: Supported
- Defog: Digital Defog
- Number of PTZ Presets: 1024
- Preset Patrol: 16 patrols, up to 64 presets for each patrol
- Patrol Stay Time: 120 s to 1800 s
- Home Position: Supported
- Pan Range: 0° ~ 345°
- Pan Speed: 1°/s - 50°/s
- Tilt Range: -10° ~ 100°
- Tilt Speed: 1°/s - 40°/s
- Audio I/O: 1 Input: impedance 1 k?, amplitude 2.5 V [p-p], 1 Output: impedance 600 ?, amplitude 2.5 V [p-p]
- Alarm I/O: 1/1
- Built-in Mic: Supported
- Built-in Speaker: Supported
- Two-Way Audio: Supported
- Network: 1 × RJ45 10 M/100 M Base-TX Ethernet
- EMC: CE-EMC (EN 55032: 2015+A11: 2020+A1: 2020, EN 50130-4: 2011+A1: 2014, EN 61000-3-3: 2013+A1: 2019+A2: 2021, EN IEC 61000-3-2: 2019+A1: 2021)
- Safety: CE LVD (EN 62368-1: 2020+A11: 2020)UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
- Environment: CE-ROHS (2011/65/EU;(EU)2015/863)
- Protection: IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
- Power: DC12V(±25%), PoE(IEEE 802.3at)
- Power Consumption: 18 W
- Power Interface: Ø5.5 mm coaxial power plug
- Dimensions: 185 x 133 x 286mm (7.3"" x 5.2"" x 11.3"") (L x W x H)
- Weight: 1.32 kg
- Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
- Surge Protection: 2 KV
- Reset Button: Supported
- Web Client Language: 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
- Heater: Supported
