À propos du produit

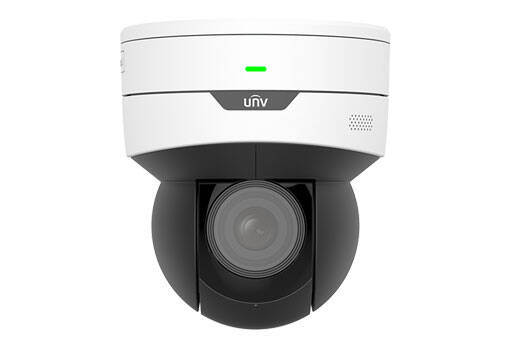

The IPC6415SR-X5UPW-VG is an IP IR speed dome camera that can be used indoors for a wide variety of applications. Thanks to the integrated IR radiator with a range of up to 30m, monitoring in the dark or in poor visibility is not a problem. The camera can be flexibly positioned thanks to the integrated WLAN. This camera offers extensive functions and setting options. eg multiple streaming, Ultra H.265, U-Code, and integrated audio. The special feature of this camera is the two-way communication via the integrated microphone and the loudspeaker. In this way, people can be addressed directly from afar.
Uniview IPC6415SR-X5UPW-VG WDR Starlight IR Network Indoor Mini PTZ Camera, Mic 5MP, 2.7~13.5mm Features:
- High quality image with 5MP,1/2.7"" CMOS sensor
- 2880*1620@30fps in the mainstream, 16:9 aspect ratio
- Ultra 265, H.265, H.264, MJPEG
- 5X optical zoom allows for closer viewing of subjects
- Smart intrusion prevention, support false alarm filtering, including Cross Line, Intrusion, Enter Area, and Leave Area Detection
- LightHunter technology ensures ultra-high image quality in low illumination environment
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- Wi-Fi connection and easy installation
- Built-in Mic & Speaker, support two-way audio
- Alarm 1 in and 1 out
- Smart IR, up to 30m (98 ft) IR distance
Uniview IPC6415SR-X5UPW-VG WDR Starlight IR Network Indoor Mini PTZ Camera, Mic 5MP, 2.7~13.5mm Specifications:
Camera
- Sensor 1/2.7"" progressive scan, 5.0 megapixel, CMOS
- Lens 2.7~13.5mm?AF automatic focusing and motorized zoom lens
- DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m)
- 2.7mm 60.8 24.3 12.2 6.1
- 13.5mm 303.8 121.5 60.8 30.4
- Angle of View (H) 27.9°~98.3°
- Angle of View (V) 20.6°~70.3°
- Angle of View (O) 30.0°~136.9°
- Shutter Auto/Manual, shutter time: 1 s ~ 1/100000 s
- Minimum Illumination Colour: 0.002 lux (F1.2,AGC ON)
- 0 lux with IR
- Iris F1.2
- Day/Night IR-cut filter with auto switch (ICR)
- Digital noise reduction 2D/3D DNR
- S/N >55 dB
- IR Range UP to 30m (98ft)
- WDR 120dB
Video
- Video Compression Ultra 265,H.265, H.264, MJPEG
- H.264 code profile Baseline profile, Main Profile, High Profile
- Frame Rate Main Stream:5M (2592*1944):Max. 30 fps;
- Sub Stream: 720P (1280×720):Max. 30 fps;
- Third Stream: D1 (720×576): Max. 30 fps
- BLC Supported
- OSD Up to 8 OSDs
- Privacy Mask Up to 24 areas
- ROI Up to 8 areas
- Motion Detection Up to 4 areas
- Smart
- General Function Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
- Audio Compression G.711
- Suppression Supported
- Sampling Rate 8 KHZ
- Storage
- Edge Storage Micro SD, up to 256 GB
- Network Storage ANR
Network
- Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL
- Compatible Integration ONVIF(Profile S, Profile G), API
Pan & Tilt
- Pan Range 350°
- Pan Speed 0.1°/s ~ 60°/s
- Preset speed: 60°/s
- Tilt Range 0° ~ 90°
- Tilt Speed 0.1° ~ 50°/s
- Preset speed: 50°/s
- Number of Presets 1024
- Home Position Supported
Interface
- Alarm I/O 1/1
- Serial Port 1 RS485
- Network 1 RJ45 10M/100M Base-TX Ethernet
- Built-in Mic Supported
- Built-in Speaker Supported
- WIFI Supported
General
- Power DC 12V±25%, PoE (IEEE802.3 at)
- Power consumption: Max 16W
- Dimensions (Ø x H) ?129mm×143mm(?5.07” x5.63”)
- Weight 0.75kg(1.65lb)
- Working Environment –10°C ~ +50°C (14°F ~ 122°F), Humidity:?95% RH(non-condensing)
- Reset Button Supported
Spécifications techniques
The IPC6415SR-X5UPW-VG is an IP IR speed dome camera that can be used indoors for a wide variety of applications. Thanks to the integrated IR radiator with a range of up to 30m, monitoring in the dark or in poor visibility is not a problem. The camera can be flexibly positioned thanks to the integrated WLAN. This camera offers extensive functions and setting options. eg multiple streaming, Ultra H.265, U-Code, and integrated audio. The special feature of this camera is the two-way communication via the integrated microphone and the loudspeaker. In this way, people can be addressed directly from afar.
Uniview IPC6415SR-X5UPW-VG WDR Starlight IR Network Indoor Mini PTZ Camera, Mic 5MP, 2.7~13.5mm Features:
- High quality image with 5MP,1/2.7"" CMOS sensor
- 2880*1620@30fps in the mainstream, 16:9 aspect ratio
- Ultra 265, H.265, H.264, MJPEG
- 5X optical zoom allows for closer viewing of subjects
- Smart intrusion prevention, support false alarm filtering, including Cross Line, Intrusion, Enter Area, and Leave Area Detection
- LightHunter technology ensures ultra-high image quality in low illumination environment
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- Wi-Fi connection and easy installation
- Built-in Mic & Speaker, support two-way audio
- Alarm 1 in and 1 out
- Smart IR, up to 30m (98 ft) IR distance
Uniview IPC6415SR-X5UPW-VG WDR Starlight IR Network Indoor Mini PTZ Camera, Mic 5MP, 2.7~13.5mm Specifications:
Camera
- Sensor 1/2.7"" progressive scan, 5.0 megapixel, CMOS
- Lens 2.7~13.5mm?AF automatic focusing and motorized zoom lens
- DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m)
- 2.7mm 60.8 24.3 12.2 6.1
- 13.5mm 303.8 121.5 60.8 30.4
- Angle of View (H) 27.9°~98.3°
- Angle of View (V) 20.6°~70.3°
- Angle of View (O) 30.0°~136.9°
- Shutter Auto/Manual, shutter time: 1 s ~ 1/100000 s
- Minimum Illumination Colour: 0.002 lux (F1.2,AGC ON)
- 0 lux with IR
- Iris F1.2
- Day/Night IR-cut filter with auto switch (ICR)
- Digital noise reduction 2D/3D DNR
- S/N >55 dB
- IR Range UP to 30m (98ft)
- WDR 120dB
Video
- Video Compression Ultra 265,H.265, H.264, MJPEG
- H.264 code profile Baseline profile, Main Profile, High Profile
- Frame Rate Main Stream:5M (2592*1944):Max. 30 fps;
- Sub Stream: 720P (1280×720):Max. 30 fps;
- Third Stream: D1 (720×576): Max. 30 fps
- BLC Supported
- OSD Up to 8 OSDs
- Privacy Mask Up to 24 areas
- ROI Up to 8 areas
- Motion Detection Up to 4 areas
- Smart
- General Function Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
- Audio Compression G.711
- Suppression Supported
- Sampling Rate 8 KHZ
- Storage
- Edge Storage Micro SD, up to 256 GB
- Network Storage ANR
Network
- Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL
- Compatible Integration ONVIF(Profile S, Profile G), API
Pan & Tilt
- Pan Range 350°
- Pan Speed 0.1°/s ~ 60°/s
- Preset speed: 60°/s
- Tilt Range 0° ~ 90°
- Tilt Speed 0.1° ~ 50°/s
- Preset speed: 50°/s
- Number of Presets 1024
- Home Position Supported
Interface
- Alarm I/O 1/1
- Serial Port 1 RS485
- Network 1 RJ45 10M/100M Base-TX Ethernet
- Built-in Mic Supported
- Built-in Speaker Supported
- WIFI Supported
General
- Power DC 12V±25%, PoE (IEEE802.3 at)
- Power consumption: Max 16W
- Dimensions (Ø x H) ?129mm×143mm(?5.07” x5.63”)
- Weight 0.75kg(1.65lb)
- Working Environment –10°C ~ +50°C (14°F ~ 122°F), Humidity:?95% RH(non-condensing)
- Reset Button Supported
