À propos du produit

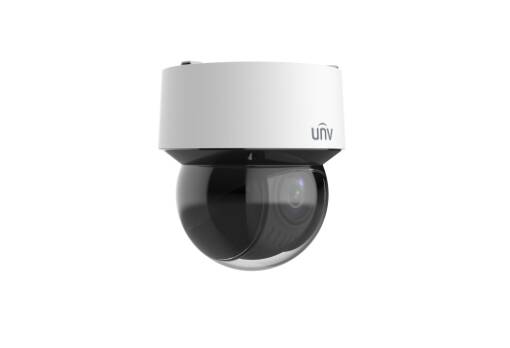

The Uniview Network PTZ Dome Starlight Dome with 16X Optical Zoom is designed for high-traffic installs in low-to-no-light sites. IP66 ingress protection ensures year-round indoor or outdoor installation, and the IK10 impact resistance prevents equipment damage from tresspassers and vandals; ideal for high-traffic public installs like parking garages, parks, university campuses, and more.
Featuring a high-quality 4MP 1/2.9'' CMOS sensor that delivers crystal-clear UHD video (2688 x 1520 @ 30 FPS) and 16x optical zoom, capable of narrowing in on subjects as far away as 2 km without losing visual fidelity. Uniview's LightHunter technology ensures high-quality, full-colour HD video, even in low light situations as dim as 0.005 lux. Adjustable F1.78-F3.73 lens aperture automatically selects for lighting conditions-- ensuring high-fidelity recording, in even the darkest conditions, and perfectly even lighting via 120dB WDR which prevents harsh shadowing or blowouts, even in direct sunlight.
Additional IO options like 2x alarm-in, 1x alarm-out and 1x audio I/O enable camera integration into traditional alarm systems, including support for two-way audio and direct operator address with additional hardware (sold separately).
IPC6434LR-X16-VG1 Specs and Features
- Resolution: 4MP
- Sensor: 1/2.9''CMOS
- Min. Illumination
- Colour: 0.005 Lux (F1.78, AGC ON)
- 0 Lux with IR
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- WDR: 120dB
- S/N: >56dB
- Lens type: 5.5~88mm
- Optical Zoom: 16X
- Iris: F1.78-F3.73
- Field of View:
- (H) 50.85°~3.47°
- (V) 29.94°~1.95°
- (D) 62.55°~4.09°
- DORI Distance
- (Detect): 127.6m~2048.4m(418.6ft~6720.5ft)
- (Observe):51.0m~819.4m(167.4ft~2688.2ft)
- (Recognize): 25.5m~409.7m(83.7ft~1344.1ft)
- (Identify): 12.8m~204.8m(41.9ft~670ft)
- Illumination Distance(IR): Up to 100m (328 ft) IR range
- Wavelength: 850nm
- IR On/Off: Control Auto/Manual
- Video Compression: Ultra 265; H.265; H.264; MJPEG
- Video stream: Dual streams
- Frame Rate
- Main Stream: 4MP(2688*1520),Max 30fps
- Sub Stream: 720P(1280*720), Max 30fps
- Video Bit Rate: 128 Kbps~16 Mbps
- U-code: Supported
- ROI: Supported
- OSD: Up to 4 OSDs
- Privacy Mask: 24 areas, up to 4 areas per scene
- White Balance: Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
- Digital noise reduction: 2D/3D DNR
- Smart IR: Supported
- Flip: Normal; Flip Vertical; Flip Horizontal; 180°
- HLC: Supported
- BLC: Supported
- Defog: Digital Defog
- Smart intrusion prevention: Supports false alarm filtering: Cross line detection, Intrusion detection
- Auto-Tracking: Supported, target filtering: vehicle, human body
- Basic Detection: Motion detection; Tampering alarm; Audio detection
- General Function: Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; Alarm input
- Audio Compression: G.711U; G.711A
- Audio Bitrate: 128 Kbps
- Two-way Audio: Supported
- Suppression: Supported
- Sampling Rate: 16KHZ
- Edge Storage: Micro SD?up to 256 GB
- Network Storage: ANR; NAS(NFS)
- Protocols: IPv4; IPv6; IGMP; RTP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; 802.1x; SNMP; QoS; SSL/TLS
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T); API; SDK
- User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
- Security: Password protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF
- Client: EZStation; EZLive; EZView
- Pan Range: 360°(endless)
- Pan Speed: 0.1°/s~240°/s
- Tilt Range: –5°~90°(auto flip)
- Tilt Speed: 0.1°/s~120°/s
- Number of Presets: 1024
- Preset Patrol: 16 patrols, up to 64 presets for each patrol
- Route Patrol: 16 patrols, up to 32 actions fo each patrol
- Recorded Patrol: 16 patrols, up to 128 actions for each patrol
- Patrol Stay Time: 15s~1800s
- Home Position: Supported
- Audio I/O: 1/1
- Alarm I/O: 2/1
- Serial Port: 1*RS485
- Network: 1*RJ45 10M/100M Base-TX Ethernet
- Power: DC12V(±10%,3A), PoE+(IEEE 802.3at)
- Power Consumption: Max 23W
- Power Interface: Ø 5.5mm coaxial power plug
- Dimensions: Ø 167 x 181mm(Ø 6.6” x 7.1”)
- Weight: 2.3Kg(5.07lb)
- Working Environment: -40?~65? (-40°F~149°F), Humidity: ?95% RH (non-condensing)
- EMC: CE-EMC (EN 55032: 2015+A11:2020+A1?2020,EN IEC 61000-3-2: 2019+A1: 2021,EN; 61000-3-3: 2013+A1: 2019+A2:2021,EN 50130-4: 2011+A1:2014); FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
- Safety: CE LVD (EN 62368-1:2014+A11:2017); UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
- Environment: CE-RoHS (2011/65/EU;(EU)2015/863)
- Protection: IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013); IK10 (IEC 62262:2002)
