Caméra dôme PTZ réseau Uniview, 4 MP, 40 X Lighthunter, IR 250 m, commande spéciale (IPC6854ER-X40G-VF)

Name: Caméra dôme PTZ réseau Uniview, 4 MP, 40 X Lighthunter, IR 250 m, commande spéciale (IPC6854ER-X40G-VF)
Brand: UNV Uniview
SKU: AT657581
Price: 2429.99 CAD
Availability: InStock

$2,429.99 CAD

~~$2,721.99 CAD~~ $2,429.99 CAD

-10% OFF Épuisé

Frais d'expédition calculés à l'étape de paiement.

Caméra dôme PTZ réseau Uniview, 4 MP, 40 X Lighthunter, IR 250 m, commande spéciale (IPC6854ER-X40G-VF)

VPN : IPC6854ER-X40G-VF SKU : AT657581

Bloc de texte

Quantité

Remise sur volume disponible - Demandez un devis.

Afficher tous les détails

Résumé des informations sur le produit

Caméra dôme PTZ réseau Uniview, 4 MP, 40 X Lighthunter, IR 250 m, commande spéciale (IPC6854ER-X40G-VF)

À propos du produit

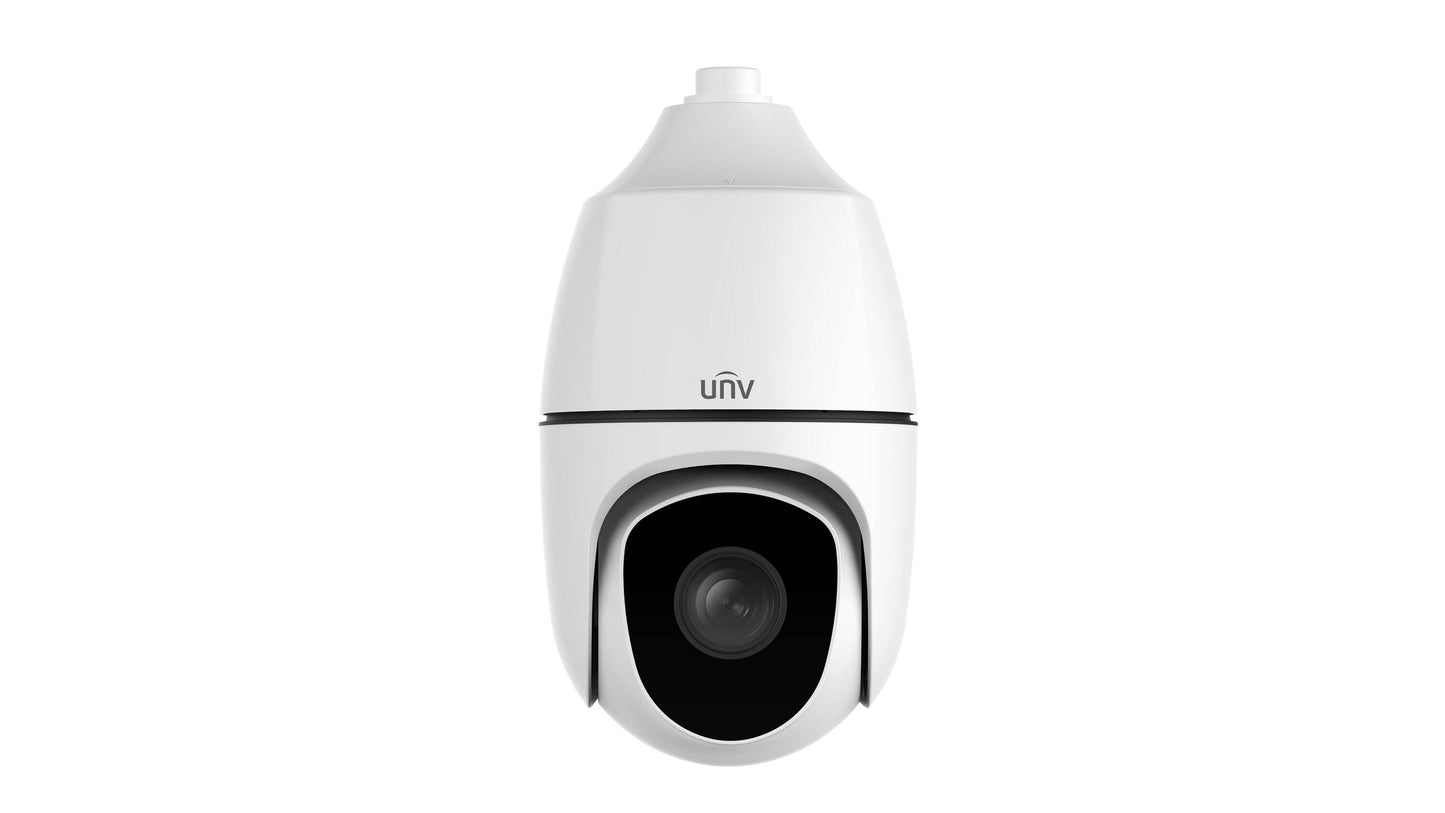

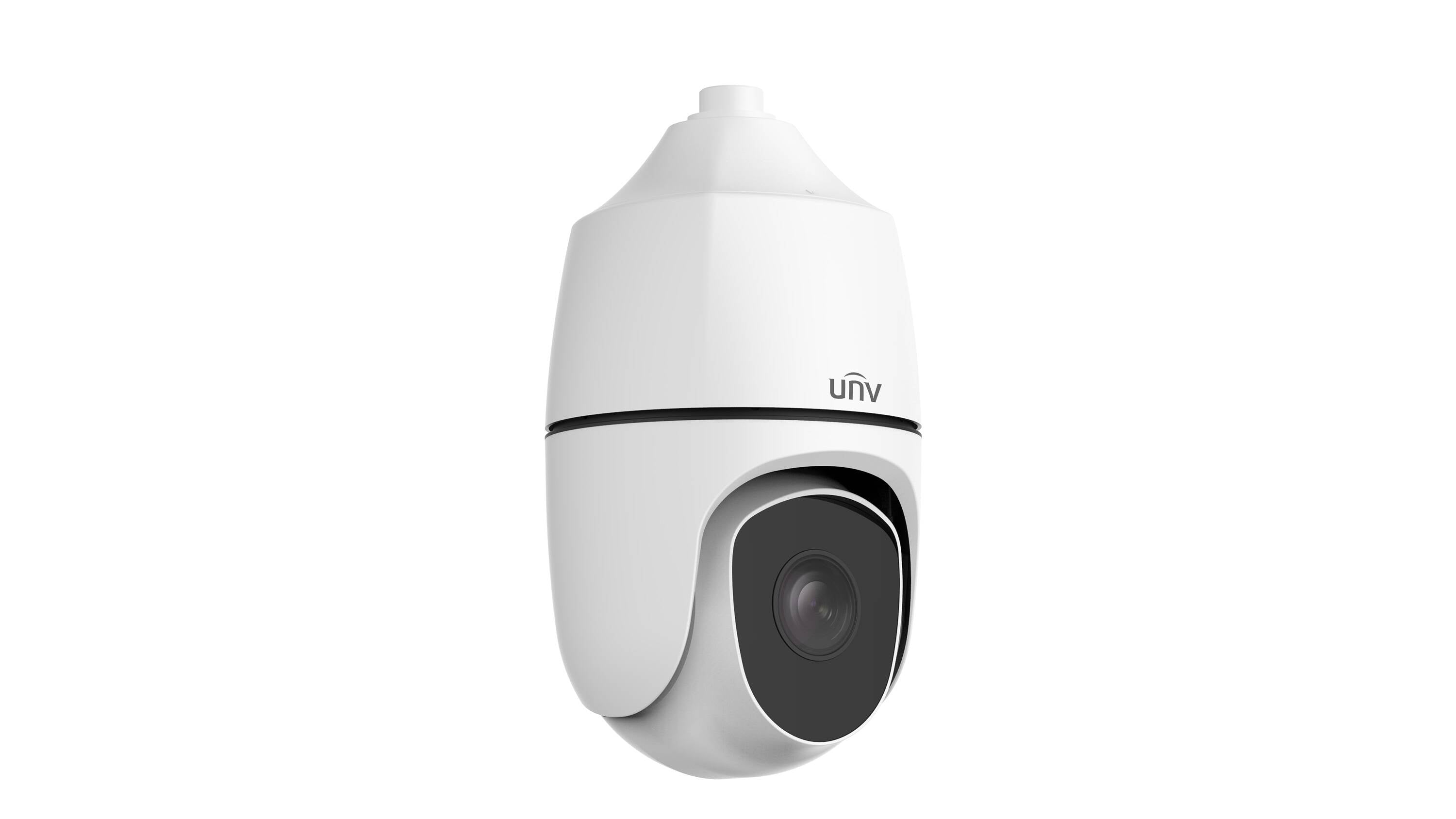

Uniview IPC6854ER-X40G-VF Network PTZ Dome, 4MP, 40X Lighthunter, IR cAMERA

Uniview IPC6854ER-X40G-VF Network PTZ Dome Camera Features:

High quality image with 4MP,1/1.8’’ CMOS sensor
2688*1520@30fps in the mainstream
Ultra 265, H.265, H.264, MJPEG
Triple streams
40X Optical Zoom
Smart intrusion prevention, supports false alarm filtering, including Cross Line, Intrusion, Enter Area, and Leave Area Detection
People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
Light hunter technology ensures ultra-high image quality in low illumination environment
Smart IR, up to 250m (820ft) IR distance
AC 24V±25%, DC 24V±25%,PoE++(IEEE802.3 bt)
Alarm 7 in and 2 out, Audio 1 in and 1 out
IP66 ingress protection

Uniview IPC6854ER-X40G-VF Network PTZ Dome Camera Specifications:

Camera
- Sensor: 1/1.8"", 8.0 megapixel, progressive scan, CMOS
- Minimum Illumination:
  - Colour: 0.005Lux (F1.2, AGC ON)
  - 0Lux with IR
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- WDR: Digital WDR
- S/N: >56dB
Lens
- Lens type: 5.7 ~ 228mm, AF automatic focusing and motorized zoom lens
- Digital Zoom: 16
- Optical Zoom: 40
- Iris: Auto; F1.2 ~ F4.6
- Field of View (H): 59.5° ~ 2.2°
- Field of View (V): 35.6° ~ 1.2°
- Field of View (D): 73.1° ~ 2.6°
Illuminator
- IR Range: Up to 250m (820 ft) IR range
- Wavelength: 850nm
- IR On/Off Control: Auto/Manual
Video
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- Frame Rate:
  - Main Stream: 4MP(2688*1520), Max 30fps;
  - Sub Stream: 2MP (1920*1080), Max 30fps;
  - Third Stream: D1 (720*576), Max 30fps;
- Video Bit Rate: 128 Kbps~16 Mbps
- U-code: Support
- ROI: Up to 8 areas
- Video stream: Triple streams
- OSD: Up to 8 OSDs
- Privacy Mask: 24 areas, up to 4 areas per scene
- White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital Noise Reduction: 2D/3D DNR
- Flip: Normal/Flip Vertical/Flip Horizontal/180°
- EIS: Support
- HLC: Support
- BLC: Support
- Defog: Optical Defog & Digital Defog
Intelligent
- Smart Intrusion Prevention: Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area Detection
- People Counting: Support people flow counting and crowd density monitoring
Events
- Basic Detection: Motion detection, Audio detection, Tampering Alarm
- Auto Tracking: Support
- General Function: Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
- Audio Compression: G.711U,G.711A
- Audio Bitrate: 64 Kbps
- Two-way Audio: Support
- Suppression: Support
- Sampling Rate: 8 kHz
Storage
- Edge Storage: Micro SD, up to 256GB
- Network Storage: ANR, NAS(NFS)
Network
- Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, operator, and common user
- Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE, and digest authentication for ONVIF
- Client:
  - EZStation
  - EZLive
  - EZView
- Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Pan & Tilt
- Pan Range: 360° (endless)
- Pan Speed:
  - 0.1°/s ~ 180°/s
  - Preset speed: 300°/s
- Tilt Range: -15° ~ 90° (auto reverse)
- Tilt Speed:
  - 0.1°/s ~ 180°/s
  - Preset speed: 240°/s
- Number of Presets: 1024
- Preset Patrol: 16 patrols, up to 64 presets for each patrol
- Route Patrol: 16 patrols, up to 32 actions for each patrol
- Recorded Patrol: 16 patrols, up to 128 actions for each patrol
- Patrol Stay Time: 15s~1800s
- Preset Image Freeze: Support
- Home Position: Support
Interface
- Audio I/O: 1/1
- Alarm I/O: 7/2
- Serial Port: 1 RS485
- Built-in Mic: N/A
- Built-in Speaker: N/A
- WIFI: N/A
- Network: 1 * RJ45 10M/100M Base-TX Ethernet
- Video output: N/A
Certification
- EMC:
  - CE-EMC (EN 55032:2015+A11:2020; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55035:2017+A11:2020)
  - FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
- Safety:
  - CE LVD (EN 62368-1:2014+A11:2017)
  - CB (IEC 62368-1:2014)
  - UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
- Environment: CE-ROHS (2011/65/EU;(EU)2015/863)
- Protection: IP66 (IEC 60529:2001)
General
- Power:
  - AC 24V ±25%, DC 24V±25%, PoE ++(IEEE 802.3bt)
  - Power consumption: MAX 61W
- Power Interface: Wires with cold-pressed terminal
- Dimensions (Ø x H): ?270 x 497mm (?10.6” x 19.6”)
- Weight: 9.69kg(21.36lb)
- Working Environment: -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ?95% RH (non-condensing)
- Storage Environment: -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ?95% RH (non-condensing)
- Surge Protection: 6KV
- Reset Button: Support
