The IS1800HGDV Isolator® Series Dual-Voltage 115/230V 1800W 50/60Hz Medical-Grade™ Transformer with full CAN/ES/IEC/EN 60601-1 listing is ideal for protecting sensitive electronic equipment in patient-care vicinities. It can be configured for either step-up voltage, step-down voltage or pass-through voltage operation. Along with line isolation and continuous EMI/RFI line noise filtering, its surge protection rating of 240 joules suppresses excess voltage to prevent it from damaging connected equipment.
An internal low-impedance isolation transformer component offers 100% isolation from the input mains AC line. Faraday shield reduces the cumulative leakage current of the IS1800HGDV and connected equipment to levels less than 100 microamps, while removing utility switching transients and harmonics generated by other on-site loads and reducing the impact of utility or lightning related surge conditions.
Transformer filtering provides continuous common-mode noise rejection with no wearable parts. The IS1800HGDV reduces 6000V IEEE 587 Category A and B ring wave and combination wave test surges to only 0.5V common mode.

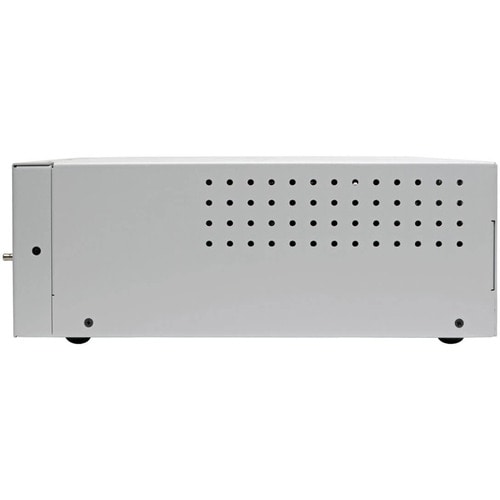

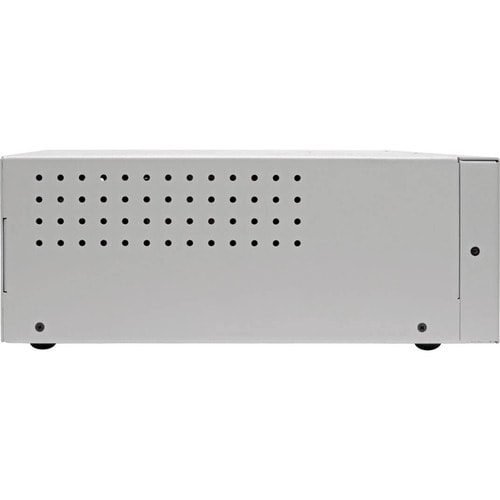

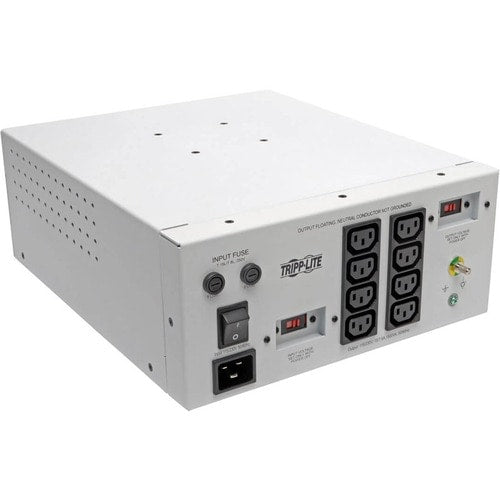

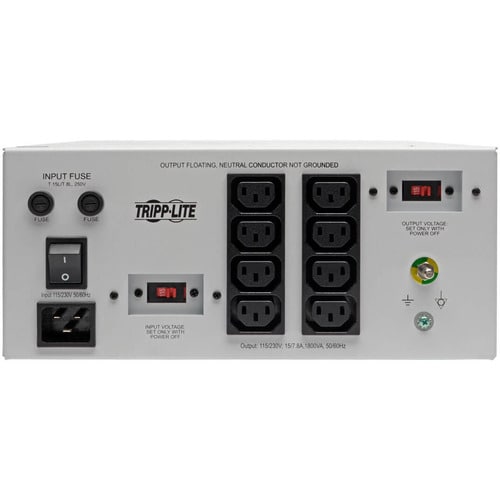

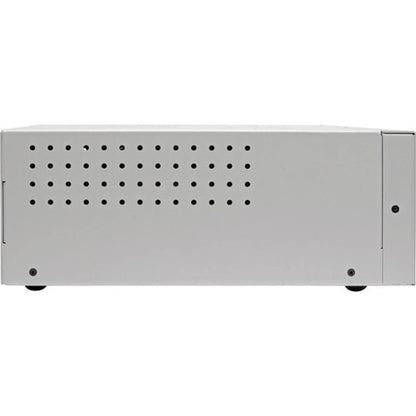

Components connect to eight C13 outlets with fuse overload protection and a lighted on/off switch. The rugged all-metal unit housing ships ready for placement in any industrial, medical, office, network or audio/video environment. Requires a C20-to-C19 AC input cord (sold separately).
An internal low-impedance isolation transformer component offers 100% isolation from the input mains AC line. Faraday shield reduces the cumulative leakage current of the IS1800HGDV and connected equipment to levels less than 100 microamps, while removing utility switching transients and harmonics generated by other on-site loads and reducing the impact of utility or lightning related surge conditions.
Transformer filtering provides continuous common-mode noise rejection with no wearable parts. The IS1800HGDV reduces 6000V IEEE 587 Category A and B ring wave and combination wave test surges to only 0.5V common mode.
Components connect to eight C13 outlets with fuse overload protection and a lighted on/off switch. The rugged all-metal unit housing ships ready for placement in any industrial, medical, office, network or audio/video environment. Requires a C20-to-C19 AC input cord (sold separately).
Spécifications techniques
| Technical Information | |
| Power Rating | 1.80 kVA |
| Input Receptacle Type | IEC 60320 C14 |
| Output Receptacle Detail | 8 x IEC 60320 C13 |
| Output Receptacle Type | IEC 60320 C13 |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Output Voltage | 115 V AC |
| 230 V AC | |
| Maximum Line Current | 15 A |
| Physical Characteristics | |
| Weight (Approximate) | 51.21 lb (23228.47 g) |
| Form Factor | Cabinet |
| Height | 5.51" (139.95 mm) |
| Width | 11.81" (299.97 mm) |
| Depth | 13.78" (350.01 mm) |
| Product Color | White |
| Color Family | White |
| General Information | |
| Product Type | Isolation Transformer |
| Manufacturer Part Number | IS1800HGDV |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | IS1800HGDV |
| Product Name | Isolator IS1800HGDV Isolation Transformer |
| Product Line | Isolator |
| Brand Name | Tripp Lite by Eaton |
