À propos du produit

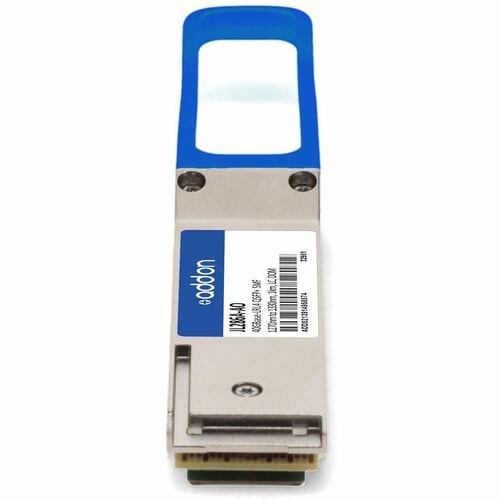

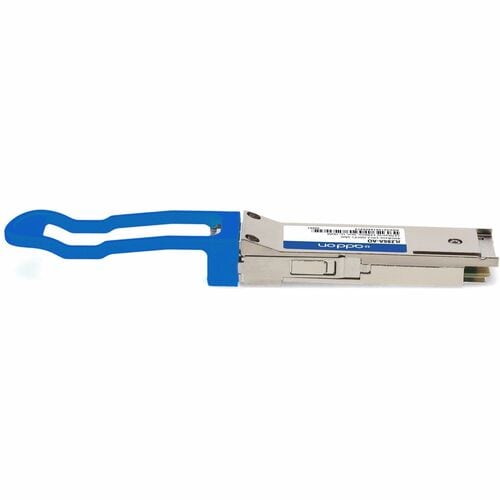

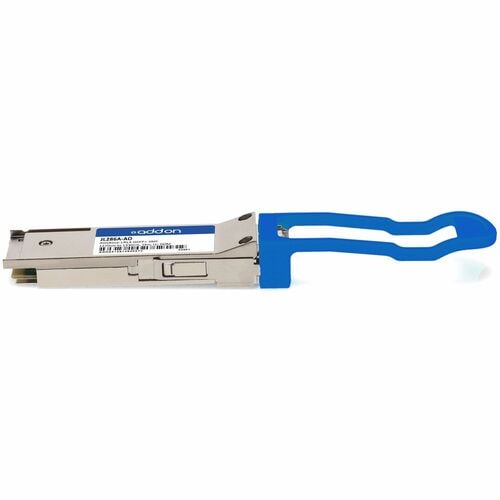

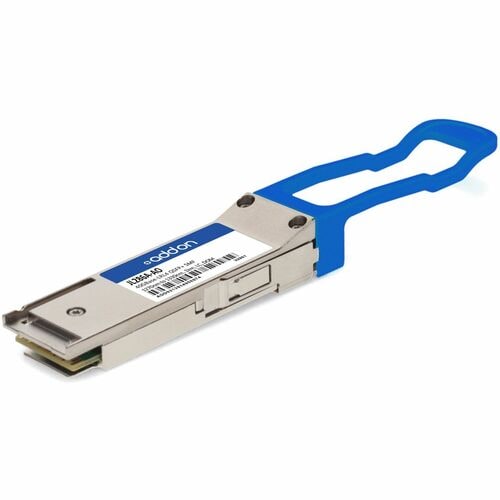

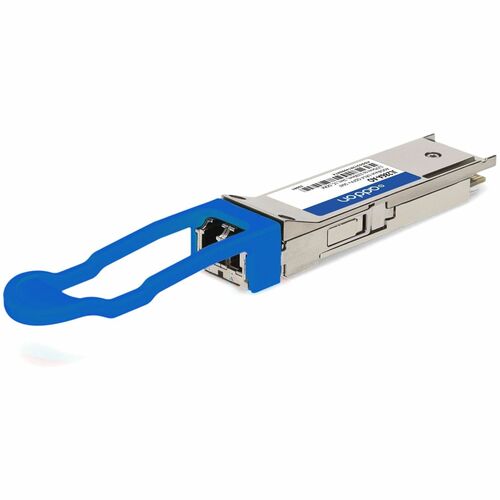

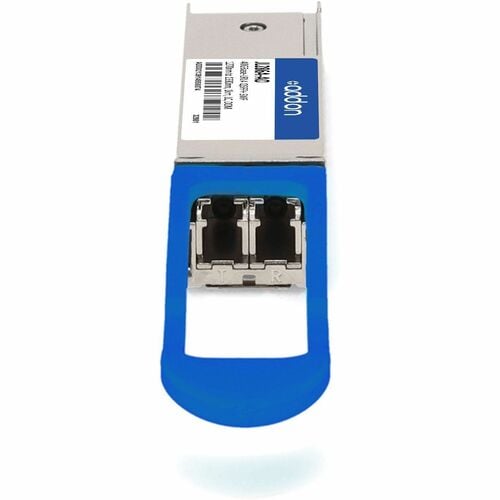

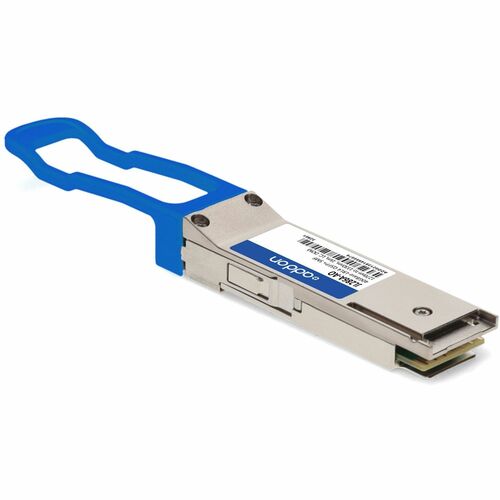

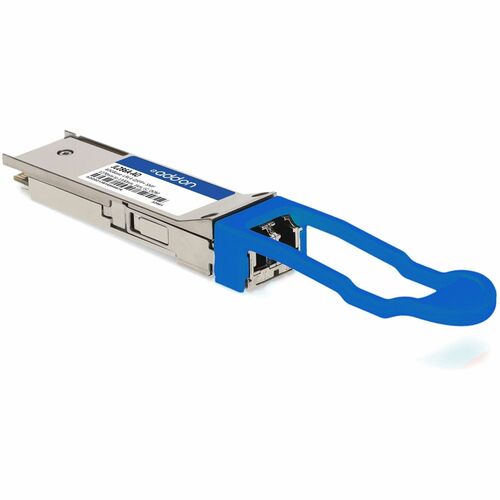

This HP JL286A compatible QSFP+ transceiver provides 40GBase-LRL4 throughput up to 2km over single-mode fiber (SMF) using a wavelength of 1270nm to 1330nm via an LC connector. It is guaranteed to be 100% compatible with the equivalent HP transceiver. This easy to install, hot swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters. This transceiver is Trade Agreements Act (TAA) compliant. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
- Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
- 40Gigabit Ethernet - Designed to provide high-performance Ethernet connection while minimizing power and CPU cycles' utilization
- With a single wavelength of light, the single mode fiber optic can carry data and transmit audio/video applications over miles of distance
- With 40GBase-LRL4 technology, enjoy up to 40Gbps data transfer rate over optical fiber cable
Spécifications techniques
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 158°F (70°C) |
| Interfaces/Ports | |
| Interfaces/Ports Details | LC 40GBase-LRL4 Network |
| Connector Type | LC |
| Total Number of Ports | 1 |
| Technical Information | |
| Application/Usage | Data Networking |
| Optical Network | |
| Features | Digital Optical Monitoring (DOM) |
| Miscellaneous | |
| Country of Origin | United States/United Kingdom |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Physical Characteristics | |
| Weight (Approximate) | 3.20 oz (90.72 g) |
| Form Factor | Hot-swappable |
| Height | 0.40" (10.16 mm) |
| Width | 0.80" (20.32 mm) |
| Depth | 4.90" (124.46 mm) |
| General Information | |
| Product Type | QSFP+ |
| Manufacturer Part Number | JL286A-AO |
| Manufacturer Website Address | http://www.addoncomputer.com |
| Packaged Quantity | 1 |
| Manufacturer | AddOn |
| Product Name | HP QSFP+ Module |
| Brand Name | AddOn |
| Media & Performance | |
| Maximum Distance Supported | 2 km (1.24 Mile) |
| Network Technology | 40GBase-LRL4 |
| Maximum Data Transfer Rate | 40 Gbit/s |
| Ethernet Technology | 40 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 0.05 mil (0 mm) |
