À propos du produit
La gamme de commutateurs Aruba Instant On 1830 offre une solution filaire simple d'utilisation et abordable pour les réseaux prenant en charge les applications informatiques, mobiles et cloud. Abordable et facile à déployer, cette gamme de commutateurs intelligents et administrables est idéale pour les petites entreprises à la recherche d'une infrastructure filaire économique pour répondre à l'évolution des besoins réseau. Ces commutateurs d'entrée de gamme, intelligents et administrables, offrent des capacités de commutation de couche 2, une connectivité Gigabit et des modes de gestion flexibles, le tout à un prix abordable. Dotés d'un tableau de bord de gestion flexible, d'options Power over Ethernet (PoE) et de fonctionnalités écoénergétiques, ces commutateurs offrent un réseau professionnel robuste aux PME aux budgets limités.
Spécifications techniques
| Primary Information | |

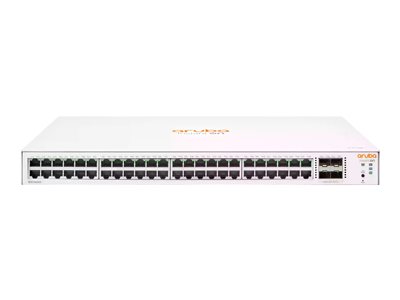

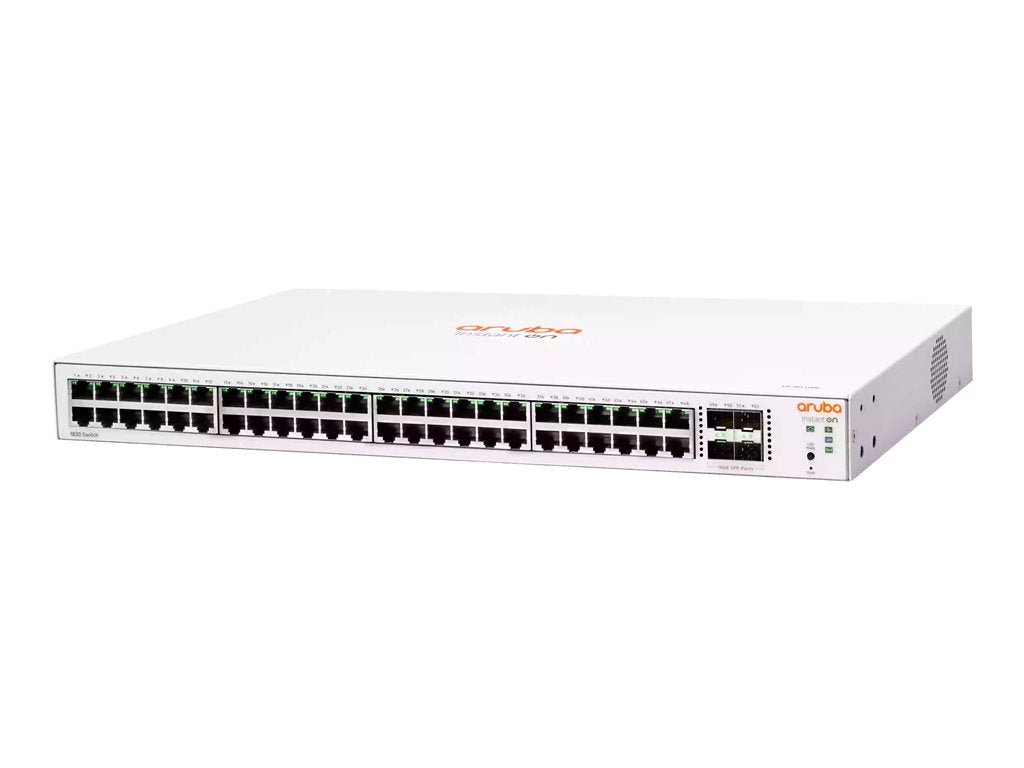

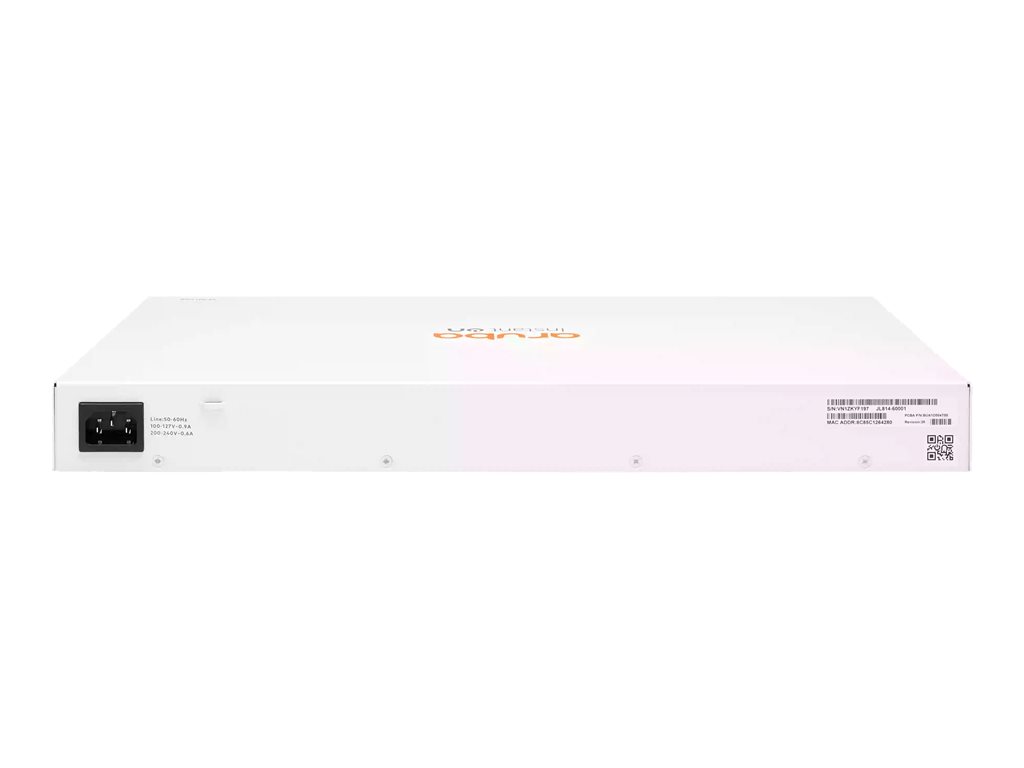

| Product Description: | HPE Networking Instant On 1830 48G 4SFP Switch - switch - 48 ports - smart - rack-mountable |
| Device Type: | Switch - 48 ports - smart |
| Enclosure Type: | Rack-mountable 1U |
| Subtype: | Gigabit Ethernet |
| Ports: | 48 x 10/100/1000 + 4 x Gigabit SFP |
| Performance: | Latency (100 Mbps): 5.2 µs ¦ Latency (1 Gbps): 2.8 µs ¦ Throughput: 77.37 Mpps ¦ Switching capacity: 104 Gbps |
| MAC Address Table Size: | 16000 entries |
| Jumbo Frame Support: | 9216 bytes |
| Routing Protocol: | IGMPv2, IGMP |
| Remote Management Protocol: | SNMP 1, SNMP 2c, HTTP, HTTPS, TFTP, SCP, ICMP |
| Features: | Flow control, auto-sensing per device, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, firmware upgradable, SNTP support, wall mountable, STP support, event log, QoS, TPM, Cable Diagnostics Function, LLDP support, DHCP client, CoS, cloud managed, 1.5MB packet buffer, SCP, Link Aggregation, dual image support, DoS protection, EEE, BPDU Filter, loop protection, Global Storm Control, Port Scheduling |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ac, IEEE 802.1ab (LLDP), IEEE 802.3az |
| Power: | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH): | 17.4 in x 10 in x 1.7 in |
| Weight: | 7.8 lbs |
| Localization: | English / United States |
| Manufacturer Warranty: | Limited lifetime warranty |
| General | |
| Device Type: | Switch - 48 ports - smart |
| Enclosure Type: | Desktop, rack-mountable 1U |
| Subtype: | Gigabit Ethernet |
| Ports: | 48 x 10/100/1000 + 4 x Gigabit SFP |
| Performance: | Latency (100 Mbps): 5.2 µs ¦ Latency (1 Gbps): 2.8 µs ¦ Throughput: 77.37 Mpps ¦ Switching capacity: 104 Gbps |
| MAC Address Table Size: | 16000 entries |
| Jumbo Frame Support: | 9216 bytes |
| Routing Protocol: | IGMPv2, IGMP |
| Remote Management Protocol: | SNMP 1, SNMP 2c, HTTP, HTTPS, TFTP, SCP, ICMP |
| Encryption Algorithm: | SSL |
| Features: | Flow control, auto-sensing per device, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, firmware upgradable, SNTP support, wall mountable, STP support, event log, QoS, TPM, Cable Diagnostics Function, LLDP support, DHCP client, CoS, cloud managed, 1.5MB packet buffer, SCP, Link Aggregation, dual image support, DoS protection, EEE, BPDU Filter, loop protection, Global Storm Control, Port Scheduling |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ac, IEEE 802.1ab (LLDP), IEEE 802.3az |
| Processor: | 1 x ARM: 800 MHz |
| RAM: | 512 MB SDRAM |
| Flash Memory: | 256 MB |
| Status Indicators: | Port status, port duplex mode, link/activity, speed |
| Expansion / Connectivity | |
| Interfaces: | 48 x 1000Base-T RJ-45 ¦ 4 x Gigabit LAN SFP |
| Power | |
| Power Device: | Internal power supply |
| Voltage Required: | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational: | 40.2 Watt |
| Miscellaneous | |
| MTBF: | 144.4 years |
| Compliant Standards: | IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, ICES-003 Class A, CNS 13438 Class A, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 55032:2015, UL 62368-1 Second Edition, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, IEC/EN 60825-1:2014 Class 1, CISPR 32 Class A, EN 55035, CISPR 35, IEC 62368-1 Second Edition, CAN/CSA-C22.2 No. 62368-1 Third Edition, UL 62368-1 Third Edition, IEC 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, FCC CFR47 Part 15 B Class A 2018 |
| Localization: | English / United States |
| Dimensions & Weight | |
| Width: | 17.4 in |
| Depth: | 10 in |
| Height: | 1.7 in |
| Weight: | 7.8 lbs |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - lifetime ¦ Technical support - live chat - lifetime ¦ Technical support - phone consulting - 90 days from date of purchase |
