À propos du produit

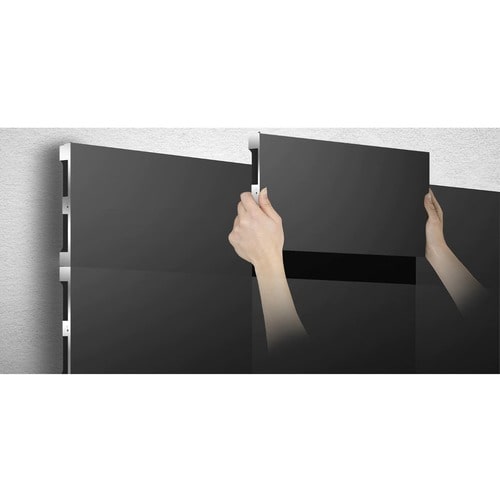

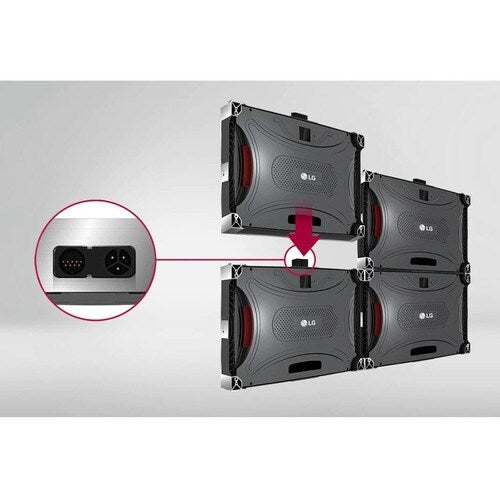

Cableless Installation and Clean Design

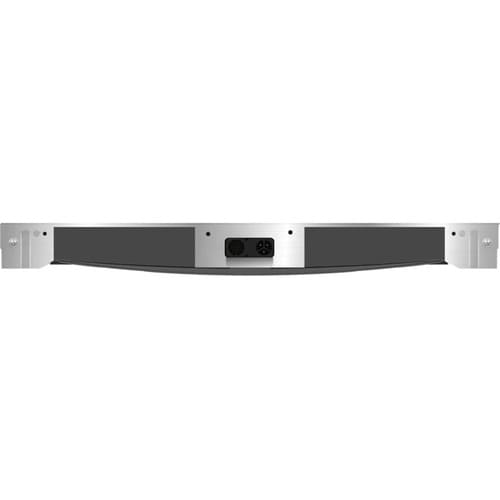

Cabinets are stackable, with sockets on the top and bottom that align. Thanks to the built-in power and signal connector protruding from the top, there is no need for wiring between cabinets. With easy installation and seamless appearance, this design eliminates the need for cables or additional space.
16:9 Aspect Ratio Optimized for FHD/UHD Content
Each cabinet uses a 16:9 aspect ratio, the same most commonly used in displays for FHD and UHD content. This allows you to enjoy existing content without additional editing.
Easy-handling Lightweight Cabinet
It's lightweight and easy to install, preventing damage during installation. A full set of LED screens is still lightweight, reducing strain on the structure holding the screens.
Signal / Power Redundancy
With an additional controller and power unit, a back-up controller activates if a signal transmission error occurs, preventing a screen blackout error (Signal Redundancy). The product also offers Power Redundancy as an option. Two power units are provided in single LED cabinet one activates to provide power when the other fails.

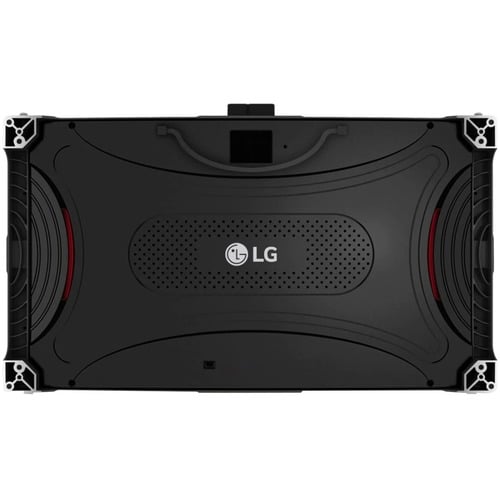

Front Serviceability
The product offers front access, freeing customers from needing rear access space.
Compatibility with LG Software Solutions
Powered by LG's high performance system controller, the LAS-F series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and Signage365Care, which help customers operate their own business flawlessly.
Uniform Picture Quality
Every step from production is strictly managed, while factory calibration ensures consistent quality between the LED units. The display provides seamless content with 97? brightness uniformity.

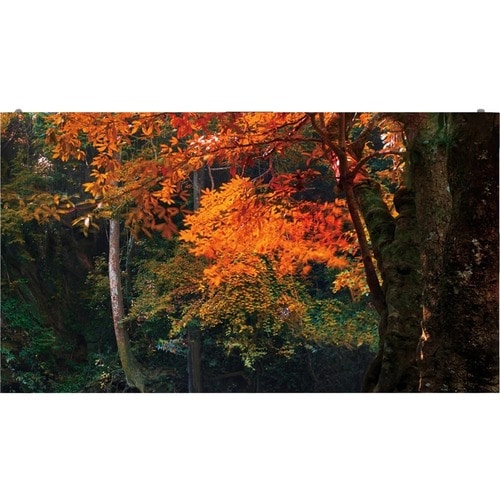

Vividness with Color Accuracy
LG's rigorous quality standards also make LG LED signage reproduce accurate colors, vividly displaying the original colors of objects without distortion.
RoHS Certified Safe Product
Boasting RoHS certification, all LG LED signage models are environmentally-friendly products that do not use materials harmful to the environment and people.
- Digital Signage Display delivers a highly realistic sound and immersive visual experience thanks to the high pixel density that shows even the most subtle details
- Experience luminescent visual images with LCD display
- LED backlight enhances display performance that delivers an outstanding color range and contrast ratios
Spécifications techniques
| Technical Information | |
| Ingress Protection (IP) Rating | IP5X |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Video | |
| Brightness | 600 cd/m² |
| Color Depth | 16-bit |
| Dynamic Contrast Ratio | 7,000:1 |
| Miscellaneous | |
| Application/Usage | Business |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Physical Characteristics | |
| Weight (Approximate) | 7.40 kg |
| Height | 13.39" (340.20 mm) |
| Width | 23.81" (604.80 mm) |
| Depth | 2.85" (72.50 mm) |
| Display & Graphics | |
| Pixel Pitch | 74.41 mil (1.89 mm) |
| Display Resolution | 320 x 180 |
| Display Screen Type | LCD |
| Backlight Technology | LED |
| Number of Modules Per Cabinet | 2x2 |
| General Information | |
| Product Type | Digital Signage Display |
| Manufacturer Part Number | LAS018DB7-F |
| Manufacturer Website Address | http://www.lg.com |
| Manufacturer | LG Electronics |
| Product Model | LAS018DB7-F |
| Product Name | LAS018DB7-F Digital Signage Display |
| Product Line | Fine-pitch Essential |
| Product Series | LAS-F |
| Brand Name | LG |
