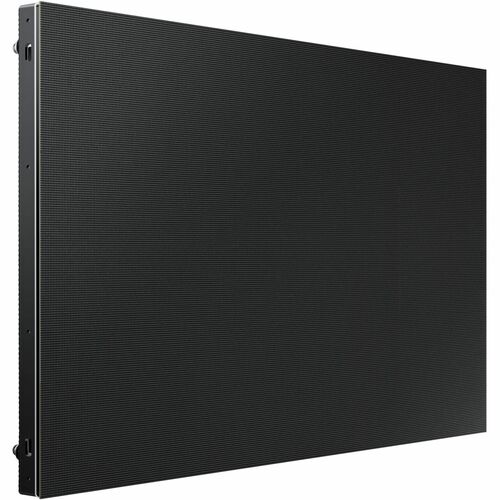

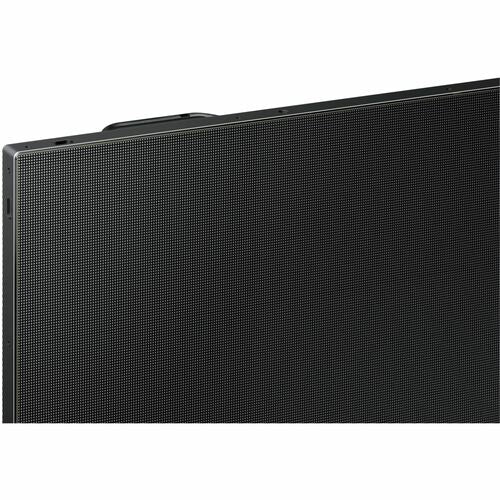

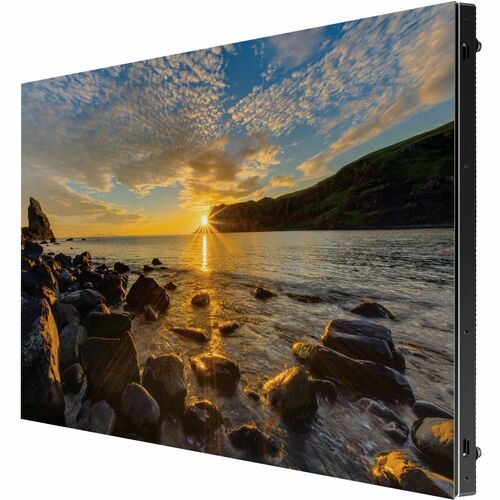

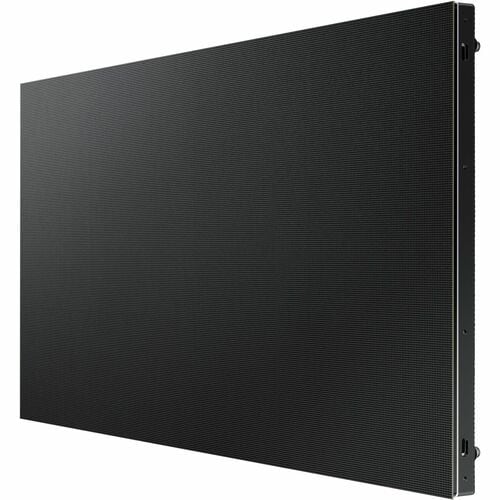

Écran d'affichage numérique Samsung IF020R - LCD - Plage dynamique élevée (HDR)
Écran d'affichage numérique Samsung IF020R - LCD - Plage dynamique élevée (HDR)
Bloc de texte
Impossible de charger la disponibilité du service de retrait
Remise sur volume disponible - Demandez un devis.
Afficher tous les détails
















Recently Viewed
Écran d'affichage numérique Samsung IF020R - LCD - Plage dynamique élevée (HDR)
Résumé des informations sur le produit

À propos du produit

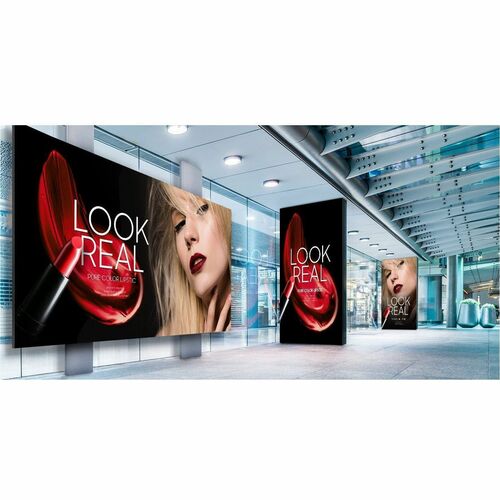

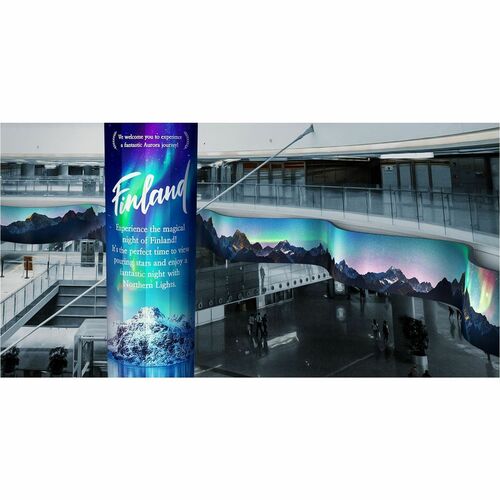

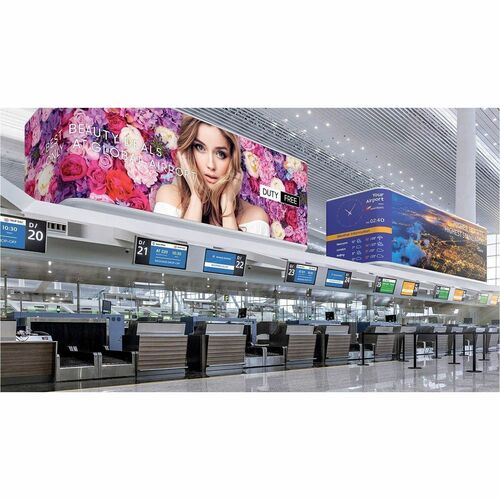

Digital signage has become an important targeting tool in both public and business indoor environments. In indoor spaces often flooded by natural sunlight, it is important to choose the right technology to engage potential customers. LED signage is ideally suited to locations flooded by natural sunlight, providing brilliant picture quality regardless of direct sunlight and glare. LED signage is constantly evolving and well-suited to corporate lobbies, hospitality venues and busy transportation hubs such as airports and railways - providing eye-catching displays whether greeting customers at reception or providing critical information throughout their travels. LED signage is now seen as an integral part of any modern business and as a result, the market is growing fast. Regardless of size, light or configuration, LED signage has the advanced visual capability and flexibility to enhance any business environment.
Why Samsung IFR Series

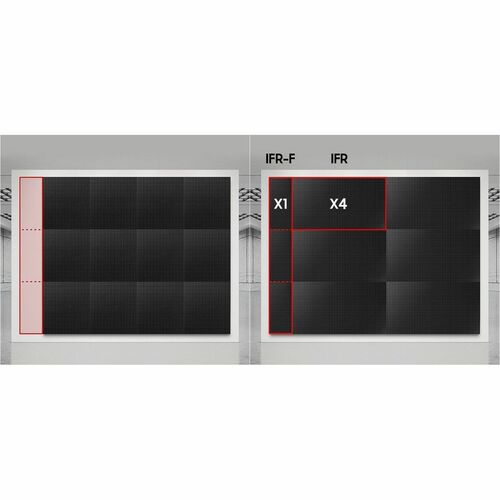

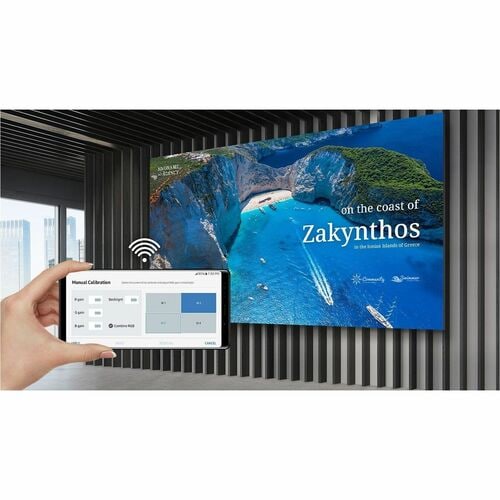

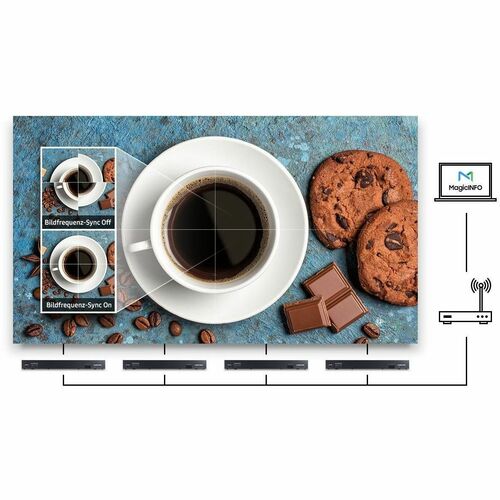

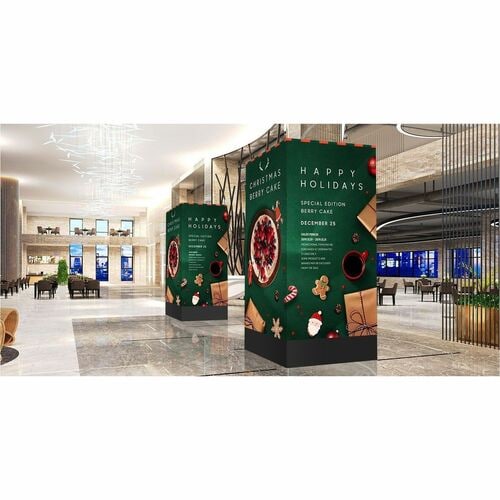

Samsung's IFR series is almost perfectly engineered for public and business environments, providing high picture quality, efficient operation and design flexibility. Best-in-class LED display is partnered with advanced HDR technology for up to 8K resolution, creating a truly immersive viewing experience. This is enhanced by rigorous factory calibration and easy mobile calibration for seamless viewing on a fully uniform screen. The IFR series enables smooth viewing, eliminating screen tearing without the need for any additional video processor. A redundancy system is also embedded within the IFR series to prevent any screen failures or downtime for a business' messaging and promotions. The IFR series supports two kinds of cabinets with landscape, portrait, curved and L-shaped installation options, allowing businesses to utilize a flexible design regardless of any environmental constraints.
Best-in-class LED picture quality
Drawing on Samsung's industry leadership experience, technical knowhow and years of innovation in visual display technology, Samsung has developed LED signage with visual clarity that is second to none. The IFR series provides an impressive viewing experience with best-in-class picture quality for LED, producing images with exact color expression, reduced noise and a full range of grays and blacks.
Key features | Pin-sharp clarity, bright or dark
Discover the true beauty no matter how bright or dark a scene is. The IFR series supports HDR10+ which optimizes brightness and contrast ratio scene-by-scene to ensure each frame looks exactly as intended. With conventional displays, some scenes may look saturated or too dark, but with HDR10+ tone is fine-tuned continuously as content plays, making the picture is as detailed as it is in the real world.
Clearly refined visuals
Utilizing a propriety algorithm, LED HDR creates true-to-life images, turning any content into HDR-level quality without requiring any special metadata. Dynamic Peaking and Inverse Tone Mapping ensure content is always being delivered at optimal peak brightness levels while avoiding glare. Additionally, in-depth Color Mapping prevents color distortion delivering refined and accurate color presentation.
HDR experience in large scale

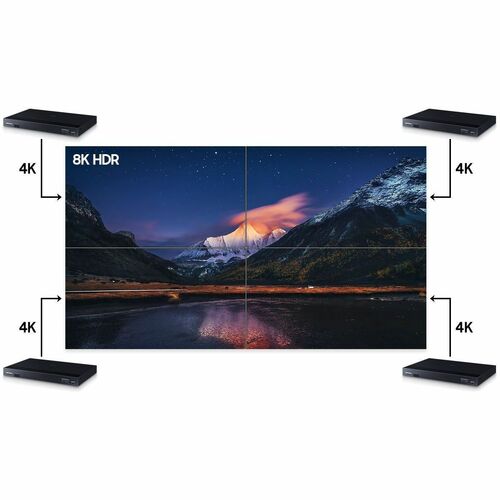

With Multi-link HDR technology, IFR series delivers more impactful content than ever before, providing HDR quality content up to 8K resolution. Using Samsung's proprietary algorithm, Multi-link HDR turns any content into HDR level without needing any special meta-data. Multi-Link HDR is also a flexible solution that can be applied to various layouts and screen sizes with less cabling.
Spécifications techniques
Power Description | |
Input Voltage | 120 V AC |
230 V AC | |
Technical Information | |
Ingress Protection (IP) Rating | IP20 |
Maximum Heat Generation | 167.9 kJ |
Video | |
Brightness | 1600 cd/m² |
Color Depth | 16-bit |
Dynamic Contrast Ratio | 7,200:1 |
Physical Characteristics | |
Weight (Approximate) | 27.34 lb (12400 g) |
Mount Type | Surface Mount |
Ceiling Mount | |
Height | 21.26" (540 mm) |
Width | 37.80" (960 mm) |
Depth | 3.13" (79.50 mm) |
Miscellaneous | |
Application/Usage | Lobby |
Business | |
Corporate | |
Hospitality | |
Indoor | |
Transportation | |
Airport | |
Environmental Conditions | |
Minimum Operating Temperature | 32°F (0°C) |
Maximum Operating Temperature | 104°F (40°C) |
Minimum Storage Temperature | -4°F (-20°C) |
Maximum Storage Temperature | 113°F (45°C) |
Minimum Operating Humidity | 10% |
Maximum Operating Humidity | 80% |
Minimum Storage Humidity | 5% |
Maximum Storage Humidity | 95% |
General Information | |
Product Type | Digital Signage Display |
Manufacturer Part Number | LH020IFRCLSZA |
Manufacturer Website Address | http://www.samsung.com |
Manufacturer | Samsung |
Product Model | IF020R |
Product Name | IF020R Digital Signage Display |
Product Series | IFR |
Brand Name | Samsung |
Display & Graphics | |
Pixel Pitch | 78.74 mil (2 mm) |
Display Resolution | 480 x 270 |
Orientation | Landscape/Portrait |
Display Screen Type | LCD |
Backlight Technology | Direct View LED |
Curved Screen | Yes |
High Dynamic Range (HDR) | Yes |
High Dynamic Range (HDR) Type | LED HDR |
Multi-link HDR | |
HDR10+ | |
Number of Modules Per Cabinet | 4x3 |
Maximum LED Life | 11.4 Year |
