À propos du produit
Expand commercial space with compact display

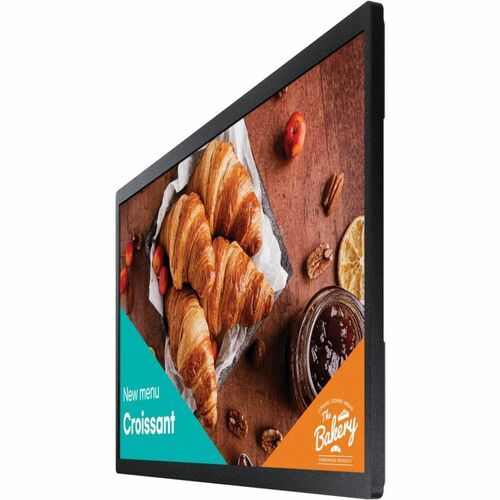

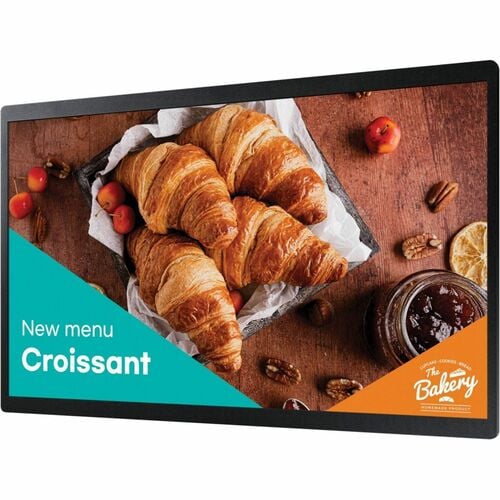

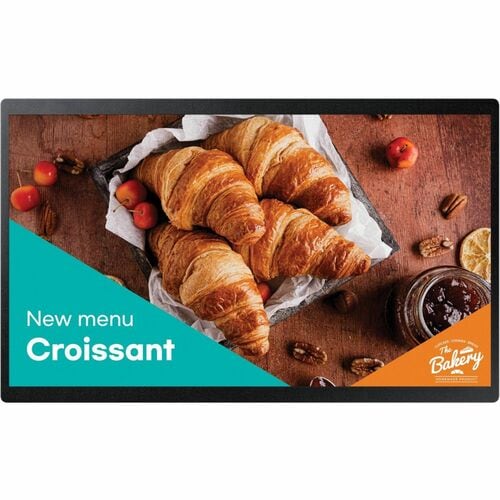

Get the most out of every space with Samsung QB24C small digital signage. The compact display provides sharp messaging with its Full HD resolution. Its enhanced internal solutions and intuitive home screen UX make it easy to use, while also allowing for a reliable performance for any business use.

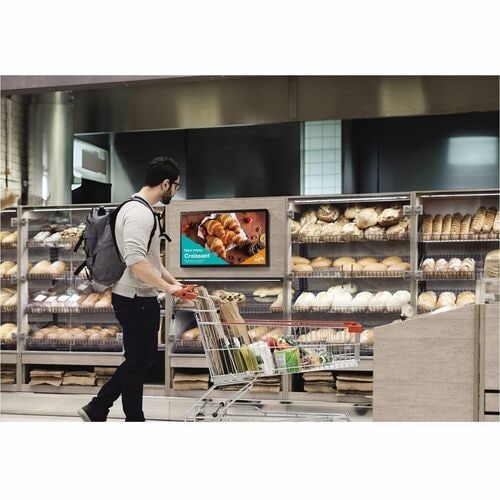

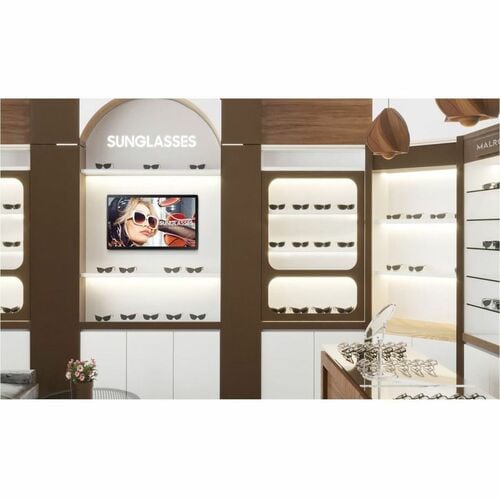

Hold sizable opportunities in small spaces | Compact Design

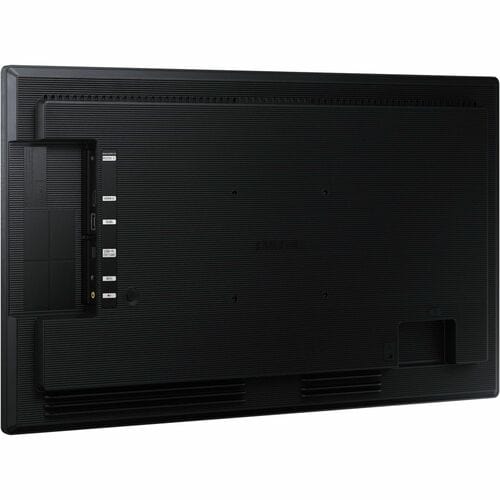

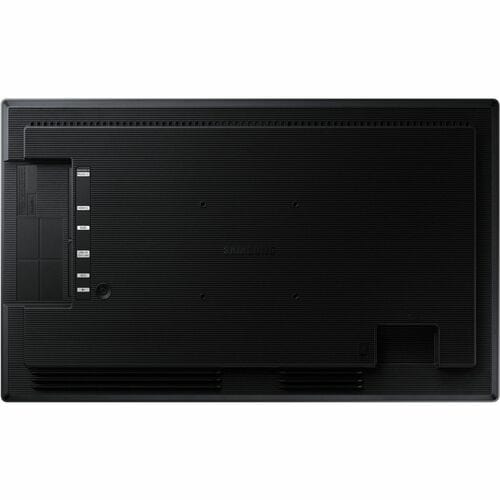

The compact design of the QB24C allows for efficient space utilization, even in compact locations. A sleek rear design makes the display optimal for wall mounting while the connectivity, content play and device controls are easy to operate.
Connect with convenience | Home UI
QB24C boasts greater usability with an upgraded home screen UI. Popular categories like Features, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.
Convenient, clean display control | Center IR
With center IR, each display receives IR signals directly to the panel, allowing easy and convenient remote control. When mounted, the display doesn't require an IR receiver cable extension. Built-in Wi-Fi allows wireless remote management for both content and display.
Safe operation, reliable performance | IP5X / EMC Class B
QB24C is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, the display's IP5x rating underscores its robust durability even in dusty environments.
Change the way to manage your display | Samsung VXT
Samsung VXT is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues from afar, while effortlessly creating and deploying content.
- Compact design
- Home UI
- Center IR
Spécifications techniques
| Software | |
| Operating System | Tizen 7.0 |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Miscellaneous | |
| Application/Usage | Commercial |
| Business | |
| Meeting Room | |
| Network & Communication | |
| Bluetooth | Yes |
| Ethernet | Yes |
| Wireless LAN | Yes |
| Technical Information | |
| Panel Technology | Advanced Super Dimension Switch ( ADS ) |
| Ingress Protection (IP) Rating | IP5X |
| Operation Hours | 16 Hours/ 7 Days |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Humidity | 10% |
| Maximum Operating Humidity | 80% |
| Video | |
| Brightness | 250 cd/m² |
| Scan Format | 1080p |
| Native Contrast Ratio | 1,000:1 |
| Color Gamut | 72% NTSC |
| Physical Characteristics | |
| Weight (Approximate) | 6.61 lb (3000 g) |
| Mount Type | Wall Mountable |
| Height | 13.17" (334.40 mm) |
| Width | 21.57" (547.90 mm) |
| Depth | 1.25" (31.80 mm) |
| VESA Mount Standard | 100 x 100 |
| Display & Graphics | |
| Pixel Pitch | 10.81 mil (0.27 mm) |
| Display Resolution | 1920 x 1080 |
| Response Time | 14 ms |
| Screen Size | 23.8" (604.52 mm) |
| Number of Screens | 1 |
| Graphics Modes | Full HD |
| Display Screen Type | LCD |
| General Information | |
| Product Type | Digital Signage Display |
| Manufacturer Part Number | LH24QBCEBGCXZA |
| Manufacturer Website Address | http://www.samsung.com |
| Manufacturer | Samsung |
| Product Model | QB24C |
| Product Name | QB24C Small Digital Signage |
| Brand Name | Samsung |

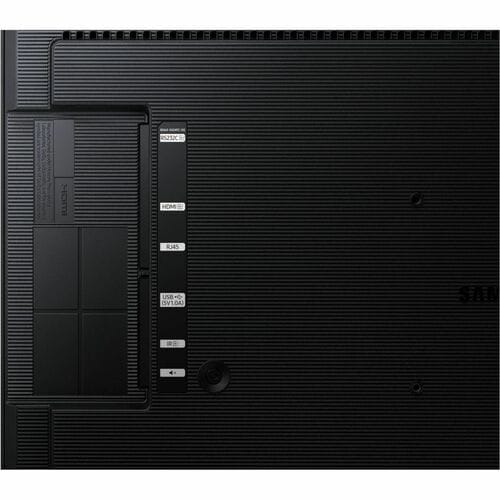

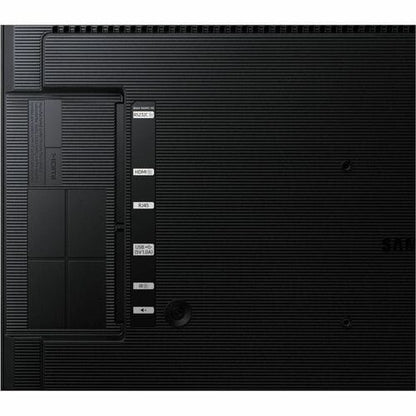

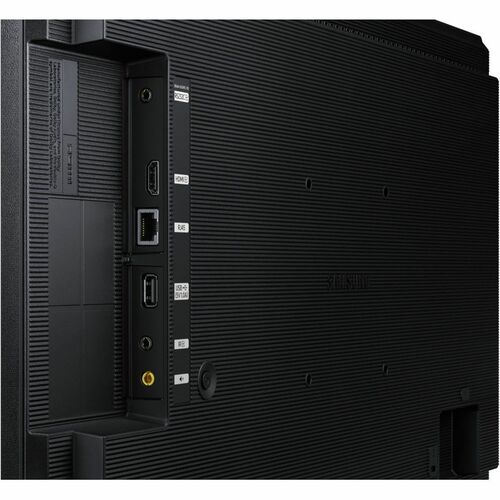

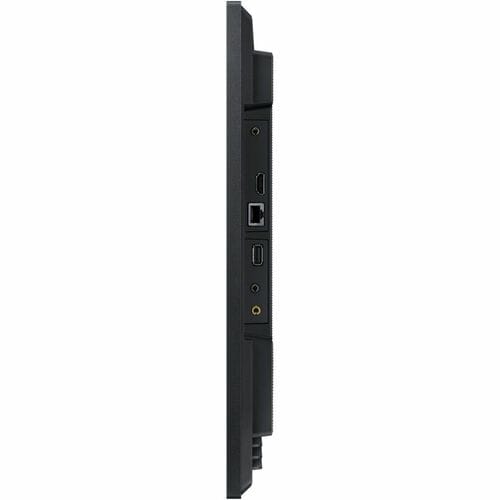

| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| DisplayPort | No |
| Number of HDMI Inputs | 1 |
| Serial | Yes |
| RS-232C Input | Yes |
| Digital Audio Optical Output | Yes |
