À propos du produit

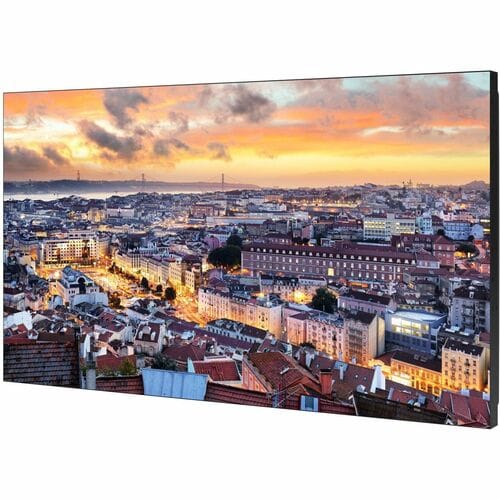

Always-on, space-saving solution with extreme-narrow bezels

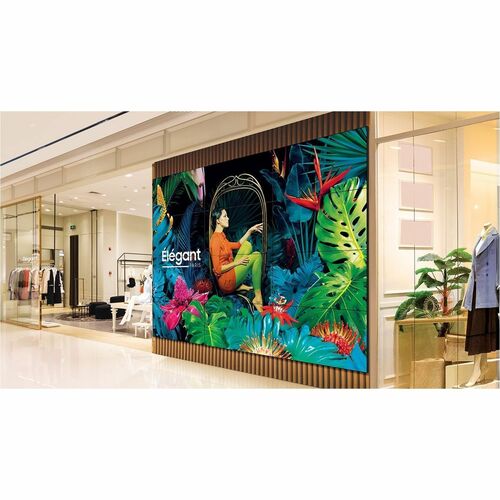

See an immersive and dependable viewing experience, 24/7 with Samsung's VHC-E series. The display's slim depth and 700 nit brightness enables highly visible images and legible messages in a wide range of locations from shopping malls to lobbies, meeting rooms, control rooms and more.
Transform any space with high impact visuals

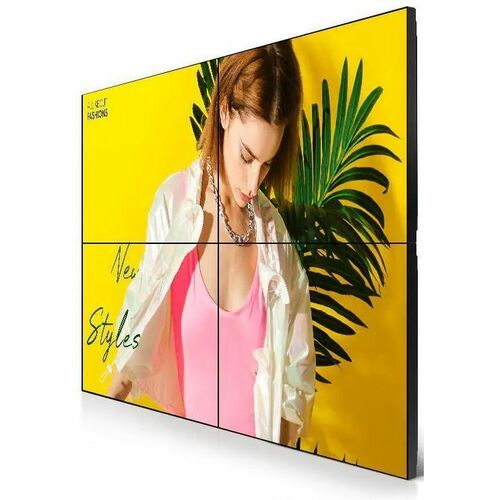

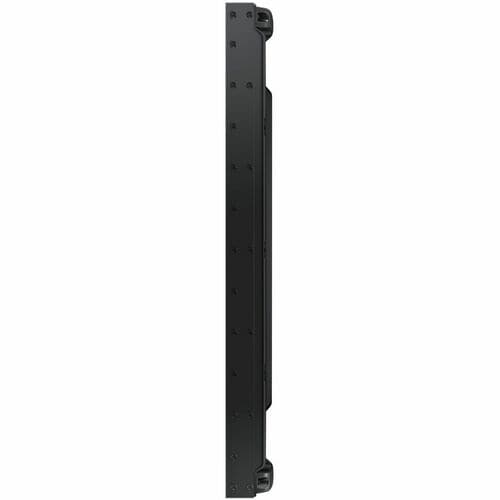

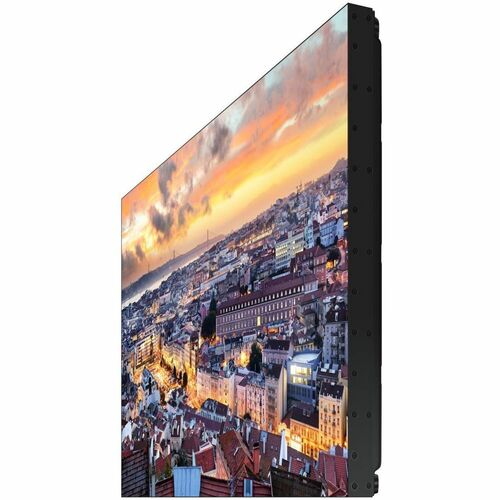

The slender design and 70.4mm cabinet depth provide flexibility for installation and an extreme-narrow 1.74mm bezel-to-bezel width creates a seamless picture opening numerous possibilities for designing a captivating visual experience.
View content from any angle
Wide viewing angles mean content is easily visible even if viewers aren't standing directly in front of the display. Audiences can get clear details and vivid colours all day long.
Vibrant images in any light
Non-glare panels evenly distribute light across the screen to maintain vibrant and accurate content. Combined with a high contrast ratio and 24/7 operation, visuals are vivid and eye-catching any time of the day or night - regardless of ambient light.
Image enhancement technology
Samsung's powerful picture enhancement technology allows for vibrant and clear content. With Picture Enhancer mode, colour saturation and contrast are improved by adjusting the gamma curve. Using Black Equalizer mode, dark images are lightened, making details easy to see.
Comprehensive calibration to fit your needs

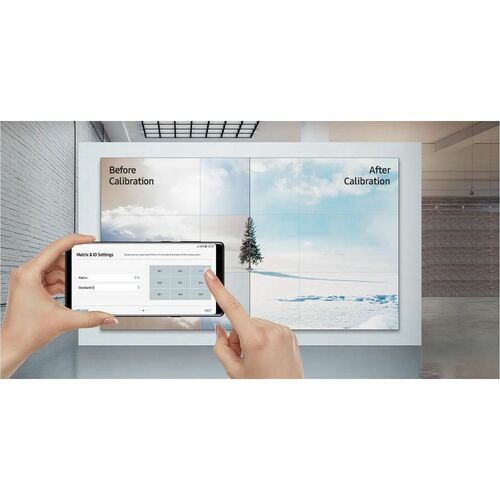

Multi-step factory tuning provides uniform brightness and colour. Users can also fine-tune advanced settings with free powerful Color Expert Pro software. For quick and simple calibration, Color Expert Pro Mobile enables white balance adjustments for displays up to 3x3 using a mobile camera.
Advanced presentation, simplified operation
Utilizing daisy chain design through DisplayPort 1.2 or HDMI ports enables the display to present UHD content on multiple screens without an external graphic card. Samsung's UHD Signage Player Box streamlines functionality by combining the media player and content management software.
Industry standard certified
The VHC-E series is EMC class B compliant, meeting strict standards of electromagnetic wave emission, while IP5x certification protects the display against dust and other conditions. The display packaging also passed a rigorous 2-step, ISTA-certified test to minimize possible damage during delivery.
- Ultra narrow bezel
- Wide viewing angle
- Non-glare
Spécifications techniques
| Network & Communication | |
| Ethernet | Yes |
| Wireless LAN | No |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Humidity | 10% |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Application/Usage | Lobby |
| Meeting Room | |
| Industrial | |
| Control Room | |
| Shopping Mall | |
| Video | |
| Brightness | 700 cd/m² |
| Scan Format | 1080p |
| Dynamic Contrast Ratio | 140,000:1 |
| Native Contrast Ratio | 1,000:1 |
| Color Gamut | 72% |
| Display & Graphics | |
| Pixel Pitch | 24.80 mil (0.63 mm) |
| Display Resolution | 1920 x 1080 |
| Response Time | 8 ms |
| Screen Size | 55" |
| Number of Screens | 1 |
| Display Screen Type | LCD |
| Physical Characteristics | |
| Weight (Approximate) | 42.99 lb (19500 g) |
| Height | 26.89" (683 mm) |
| Width | 47.72" (1212.20 mm) |
| Depth | 2.77" (70.40 mm) |
| VESA Mount Standard | 600 x 400 |
| Bezel Color | Black |
| General Information | |
| Product Type | Digital Signage Display |
| Manufacturer Part Number | LH55VHCEBGBXZA |
| Manufacturer Website Address | http://www.samsung.com |
| Manufacturer | Samsung |
| Product Model | VH55C-E |
| Product Name | VHC-E Extreme Narrow Bezel Video Wall |
| Product Line | Extreme |
| Product Series | VHC-E |
| Brand Name | Samsung |
| Technical Information | |
| Panel Technology | In-plane Switching (IPS) Technology |
| Video Wall Compatible | Yes |
| Display Surface | Gloss |
| Bezel Width (Bottom) | 17.32 mil (0.44 mm) |
| Bezel Width (Top) | 51.18 mil (1.30 mm) |
| Ingress Protection (IP) Rating | IP5X |
| Bezel Width (Left) | 51.18 mil (1.30 mm) |
| Bezel Width (Right) | 17.32 mil (0.44 mm) |
| Operation Hours | 24 Hours/7 Days |

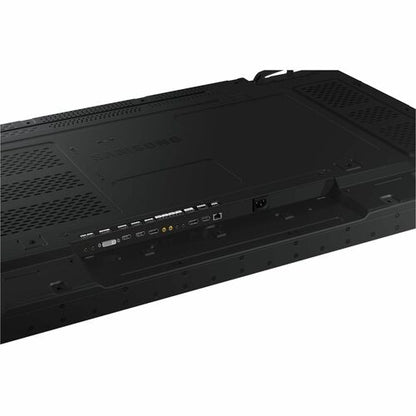

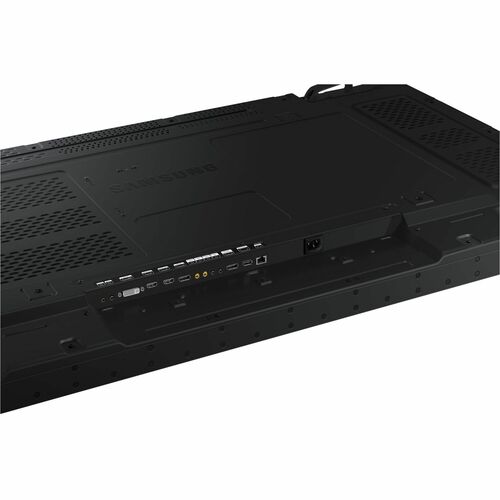

| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| DVI | Yes |
| DisplayPort | Yes |
| Number of HDMI Inputs | 2 |
| Serial | Yes |
| Number of DisplayPorts | 1 |
| Number of DVI Ports | 1 |
| RS-232C Input | Yes |
| RS-232C Output | Yes |
| Number of HDMI 2.0 Ports | 2 |
| Number of DisplayPort 1.2 Ports | 1 |
