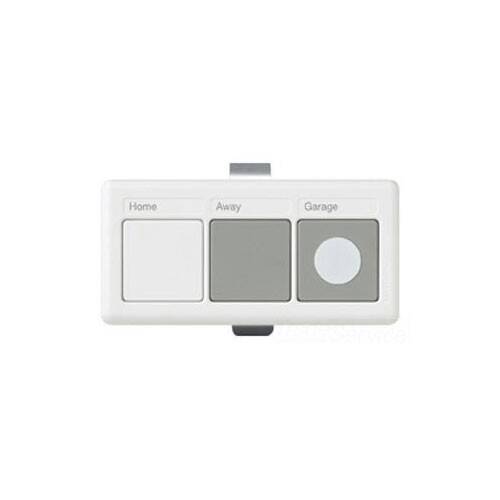

Lutron RadioRA2 Visor Control Transmitter Overview
With just a touch of a button on a Visor Control Transmitter, HomeWorks QS Visor Controls make it possible to control lights, shades/draperies, and other equipment while driving.
The Visor Controls come with labels that can be used to name buttons or scenes on the Receiver and Transmitter that are both pre-printed and blank.
Lutron RadioRA2 Visor Control Transmitter Features:
- Power: 6V 10 mA (2 - CR2032, included – 10 year lifetime)
- Regulatory Approvals: FCC, IC, COFETEL
- Environment: Ambient operating temperature: -40 °F to 235 °F (-40 °C to 113 °C), 0%-90% humidity, non-condensing. Meets the Society of Automotive Engineers (SAE) temperature standards
- Communications: Visor Controls communicate with the system through Radio Frequency (RF). The Receiver must be located within 30 ft (9 m) of a Repeater. The typical operating distance between a Transmitter and a Receiver is 150 ft (46 m).
- The Transmitter can remotely control the ‘Keypad’, ‘Security Input’, and ‘Outputs’ buttons on the Receiver.
Lutron RadioRA2 Visor Control Transmitter Specifications:
- UPC: 02755777468
- Used On: HomeWorks QS System
- Approval: FCC, IC, COFETEL
- Additional Information: Temperature Rating 40 to 235 Deg F; Color Snow; Mounting Type Wall/Ceiling/Surface Mount; Application Indoor
- Catalog Number: LR-3B-H-SW
- Brand Name: HomeWorks[R]
- Type: Transmitter
- Output Voltage: 6 VDC at 10 Milliampere
- Length: 3.25 Inch
- Width: 0.75 Inch
- Height: 1.25 Inch
- Conductor Size: (2) 18 AWG
- Catalog Description: RadioRA 2 Car Visor Transmitter, Snow Finish
- Category: Lighting Controls
- Technical Description: Transmitter Type; 3.25 Inch; 0.75 Inch; 1.25 Inch; Homeworks Qs System Used on; FCC, IC, COFETEL Approval; (2) 18 AWG Conductor Size; 6 VDC at 10 Milliampere Output Voltage; HOMEWORKS[R] Brand; Temperature Rating 40 to 235 Deg F; Color Snow; Mounting Type Wall/Ceiling/Surface Mount; Application Indoor
- Made in USA: Yes
- Manufacturer: Lutron Electronics Co., Inc.
- Manufacturer Brand: Lutron Electronics Co., Inc.
Product Brochure
- Product Description: Lutron Lr-3B-H-Sw RadioRA 2 Car Visor Transmitter, Snow Finish
- Sub-Category: Lighting Control Wallstation Accessories
- UNSPSC: 52161525
- UPC 12 Digit: 027557774680
- Unique Product Key: 6675395
Spécifications techniques
Lutron RadioRA2 Visor Control Transmitter Overview
With just a touch of a button on a Visor Control Transmitter, HomeWorks QS Visor Controls make it possible to control lights, shades/draperies, and other equipment while driving.
The Visor Controls come with labels that can be used to name buttons or scenes on the Receiver and Transmitter that are both pre-printed and blank.
Lutron RadioRA2 Visor Control Transmitter Features:
- Power: 6V 10 mA (2 - CR2032, included – 10 year lifetime)
- Regulatory Approvals: FCC, IC, COFETEL
- Environment: Ambient operating temperature: -40 °F to 235 °F (-40 °C to 113 °C), 0%-90% humidity, non-condensing. Meets the Society of Automotive Engineers (SAE) temperature standards
- Communications: Visor Controls communicate with the system through Radio Frequency (RF). The Receiver must be located within 30 ft (9 m) of a Repeater. The typical operating distance between a Transmitter and a Receiver is 150 ft (46 m).
- The Transmitter can remotely control the ‘Keypad’, ‘Security Input’, and ‘Outputs’ buttons on the Receiver.
Lutron RadioRA2 Visor Control Transmitter Specifications:
- UPC: 02755777468
- Used On: HomeWorks QS System
- Approval: FCC, IC, COFETEL
- Additional Information: Temperature Rating 40 to 235 Deg F; Color Snow; Mounting Type Wall/Ceiling/Surface Mount; Application Indoor
- Catalog Number: LR-3B-H-SW
- Brand Name: HomeWorks[R]
- Type: Transmitter
- Output Voltage: 6 VDC at 10 Milliampere
- Length: 3.25 Inch
- Width: 0.75 Inch
- Height: 1.25 Inch
- Conductor Size: (2) 18 AWG
- Catalog Description: RadioRA 2 Car Visor Transmitter, Snow Finish
- Category: Lighting Controls
- Technical Description: Transmitter Type; 3.25 Inch; 0.75 Inch; 1.25 Inch; Homeworks Qs System Used on; FCC, IC, COFETEL Approval; (2) 18 AWG Conductor Size; 6 VDC at 10 Milliampere Output Voltage; HOMEWORKS[R] Brand; Temperature Rating 40 to 235 Deg F; Color Snow; Mounting Type Wall/Ceiling/Surface Mount; Application Indoor
- Made in USA: Yes
- Manufacturer: Lutron Electronics Co., Inc.
- Manufacturer Brand: Lutron Electronics Co., Inc.
Product Brochure
- Product Description: Lutron Lr-3B-H-Sw RadioRA 2 Car Visor Transmitter, Snow Finish
- Sub-Category: Lighting Control Wallstation Accessories
- UNSPSC: 52161525
- UPC 12 Digit: 027557774680
- Unique Product Key: 6675395
