À propos du produit
Next Generation Copper and Fiber Ethernet AutoTester
- Comprehensive AutoTest validates and troubleshoots all aspects of network link connectivity and services.
- Verifies available link speed from 10Mbps to 10Gbps, tests PoE, identifies connected switch port and VLAN.
- Enables frontline technicians to quickly and thoroughly validate links, troubleshoot device connectivity, and document moves, adds, and changes.
Overview
The LinkRunner AT 3000 is designed for frontline technicians who need fast and comprehensive validation of copper and fiber network links with powerful network connectivity troubleshooting. While offering the same core functions of its predecessors (LinkRunner AT 1000 and 2000 models), the LinkRunner AT 3000 features a large touchscreen and in-depth AutoTest that provides deeper network visibility.
With tools designed to help with network changes and troubleshooting, this network tester's quick cable test and switch identification functionality facilitates installation validation and fast problem isolation.
Test results can be automatically uploaded to the Link-Live collaboration, reporting, and analysis platform to improve teamwork between network engineers and technicians, creating greater job visibility, better project control, and improved tester fleet management. Independent management plane via wired or Wi-Fi connection (with optional adapter) allows remote operation and result uploading independent of the network under test.
- Comprehensive AutoTest validates and troubleshoots all aspects of network link connectivity and services including DHCP and DNS.
- Verifies link speed/duplex for 10/100 Mbps and 1 Gbps, with detection of NBASE-T and Multigigabit 2.5G, 5G, and 10 Gbps links.
- Discovers nearest connected switch name and port information via CDP/LLDP/EDP, including VLANs; monitors VLAN trunk traffic.
- Validates Power over Ethernet switching and cabling up to 90W 802.3bt with TruePower™ loading.
- Advanced twisted-pair cable tests for length, wiremap, and faults such as shorts, opens, mis-wires (split pairs, crossovers), fiber optic link signal strength power measurement and SFP diagnostics. Locate cable endpoints with optional WireView adapters and analog or digital tone generators.
- Use optional USB Wi-Fi/Bluetooth adapter for connectivity and remote control.
- Automate reporting and enable collaboration with test result uploads, management, and tester remote control via Link-Live™ analysis platform.
Spécifications techniques
| Display & Graphics | |
| Display Screen Type | LCD |
| Wireless Specifications | |
| Wireless LAN | No |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Miscellaneous | |
| Application/Usage | Network |

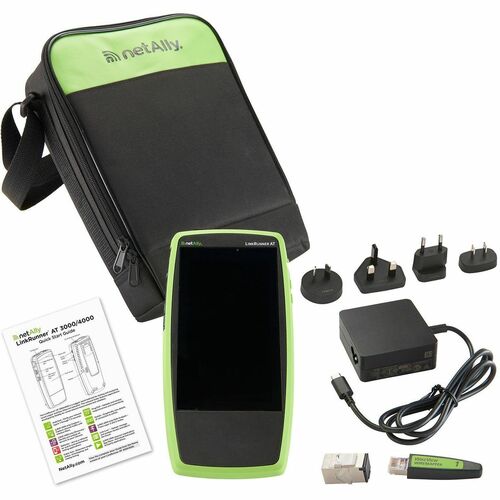

| Package Contents |
|
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| I/O Expansions | |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Total Number of Expansion Slots | 1 |
| Battery Information | |
| Battery Life | 9 Hour |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Size Supported | Proprietary Battery Size |
| Battery Rechargeable | Yes |
| Interfaces/Ports | |
| USB | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of USB Ports | 2 |
| Physical Characteristics | |
| Weight (Approximate) | 1.06 lb (480.81 g) |
| Height | 7.72" (196.09 mm) |
| Width | 4.02" (102.11 mm) |
| Depth | 1.65" (41.91 mm) |
| Technical Information | |
| Device Function | LAN Cable Testing |
| Fiber Optic Cable Testing | |
| PoE Testing | |
| Network Testing | |
| Cable Testing | |
| Network & Communication | |
| Network Standard | 1000Base-SX |
| 1000Base-LX | |
| 1000Base-ZX | |
| 1000Base-X | |
| 1000Base-T | |
| 100Base-FX | |
| Ethernet Technology | Gigabit Ethernet |
| General Information | |
| Product Type | Cable/Network Tester |
| Manufacturer Part Number | LRAT-3000-KIT |
| Manufacturer Website Address | http://www.netally.com |
| Manufacturer | NetAlly |
| Product Model | LRAT-3000-KIT |
| Product Name | LinkRunner AT 3000 Network & Cable Tester |
| Product Line | LinkRunner |
| Brand Name | NetAlly |
