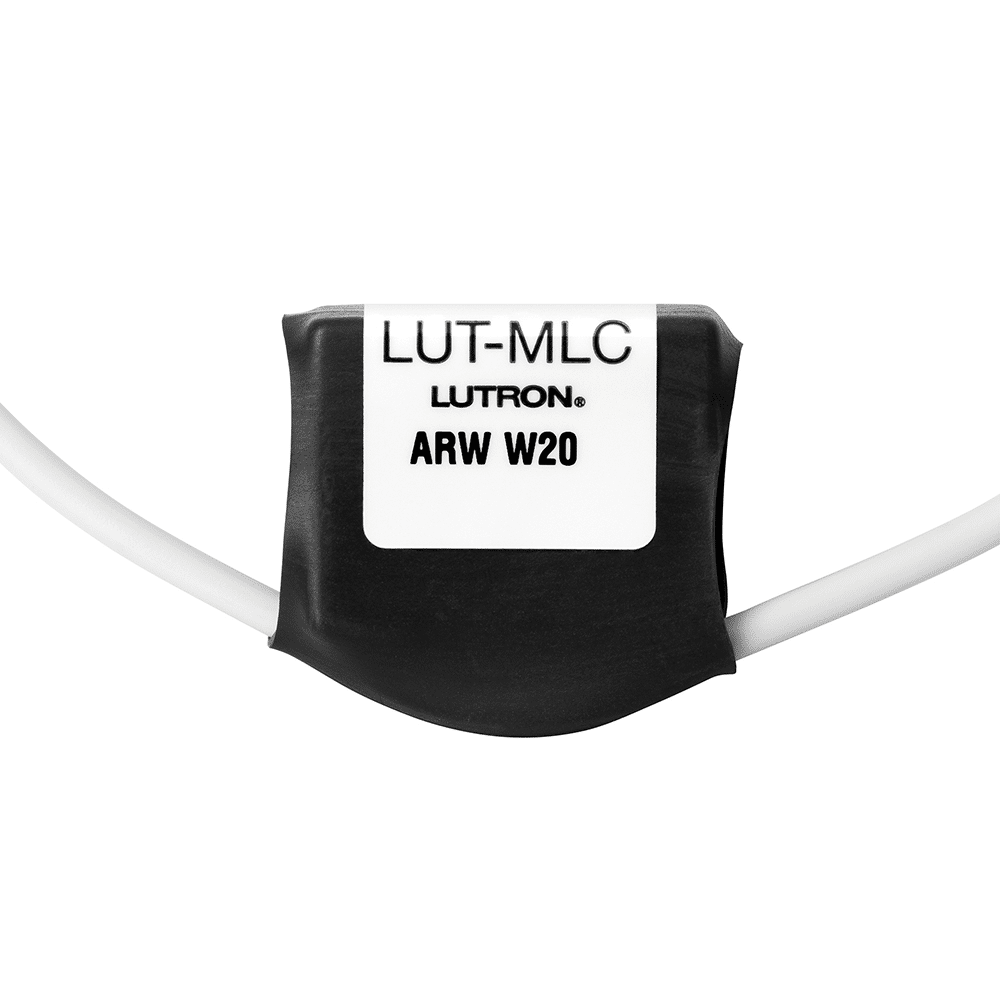

Lutron Minimum Load Capacitor Overview
The LUT-MLC load adapter is provided to help ensure proper operation of the switch with LED, CFL, fluorescent, and ELV lighting loads. When controlling one of these load types, a LUT-MLC may be required, especially at lower wattages. If the status LED on the switch is flashing or a solid red color, a LUT-MLC must be installed. It is recommended to install a LUT-MLC with these load types regardless of wattage to guarantee the best performance.
Lutron Minimum Load Capacitor Features
- Assists non-neutral-based digital switches in meeting minimum load requirements.
Lutron Minimum Load Capacitor Specifications
- Shape: Rectangle
- Brand Name: Lutron
- Number Of Leads: 2
- Capacitance: 470 Nfd
- Type: Shunt capacitor
- Case Material: Plastic
- Pack Description: Bag
- Pack Type: EA
- Number of Sub Packs: 1
- Total Units Imperial: 1 EA
- Gross Weight per Pack Imperial: 0.3 L
- Length Imperial: 4 IN
- Width Imperial: 5 IN
- Height Imperial: 7.5 IN
- Frequency Rating: 50/60 Hz
- Standard: UL, CSA, ENEC IEC
- Voltage Rating: 120-277 VAC
- Package: Thermosetting resin filled
- Temperature Rating: 40 degrees Celsius
- Size: 1.06 in (26.8 mm) x 0.44 in (11.2 mm) x 0.79 in (20.1 mm)
- Country of Origin: US
