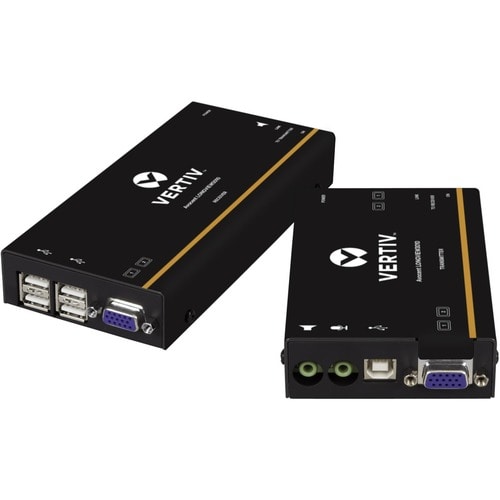

The Vertiv™ Avocent® LongView LV3010 KVM Extender offers industry-leading video clarity, seamless compatibility, and high-density rack performance. Designed for single-screen desktops, this USB, VGA, and audio extender delivers sharp, high-resolution video and crisp audio. The LV3010 provides superb video quality at extended distances up to 1,000 feet (300 meters) via a single CATx cable, thanks to advanced video compensation and a built-in variable noise filter. A local access port at the transmitter enables easy console use, while the receiver includes a 4-port USB hub for connecting peripherals. The LV3010 supports dual-user setups, allowing two units to control one computer simultaneously, with USB arbitration ensuring smooth operation.
- KVM EXTENDER: Delivers seamless KVM control while moving computing assets away from the workspace to secure, climate-controlled environments.
- USB POWERED TRANSMITTER: Supports VGA transmission common to many computer monitors and also supports isochronous USB devices, such as webcams, USB audio and touchscreens.

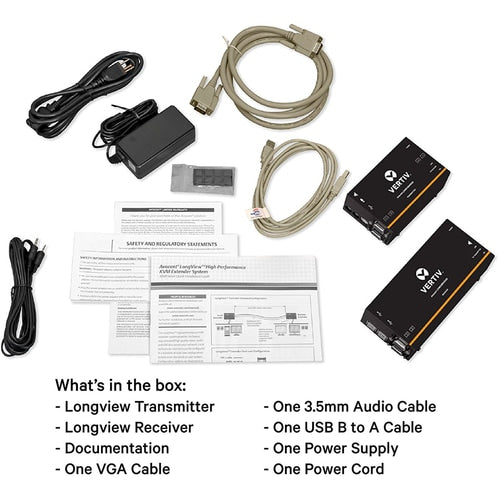

- PURCHASE INCLUDES: 1x transmitter and 1x receiver, 2x VGA cables, 1x 3.5 mm audio cable, 2x USB B to A cables, and 2x power supplies with power cords.
- PRECISION VIDEO: Provides high-resolution (1920x1200) video images and high-quality audio for single and multi-screen desktops
- LOCAL FEED THROUGH PORT: Desktop pass-through port allows use of a local console. Also features plug-and-play design with no drivers or software to install, and no on-site configuration required.
Spécifications techniques
| Miscellaneous | |
| Platform Supported | PC |
| Country of Origin | United Kingdom |
| Video | |
| Maximum Video Resolution | 1920 x 1200 |
| Graphic Mode | WUXGA |
| Power Description | |
| Input Voltage | 240 V AC |
| 120 V AC | |
| Power Consumption | 12 W |
| Input Voltage Range | 100 - 240VAC |
| Interfaces/Ports | |
| USB | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of USB Ports | 5 |
| Number of VGA Ports | 2 |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 1000 ft (304800 mm) |
| Number of Computers Supported | 1 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |
| Device Type | KVM Extender |
| General Information | |
| Product Type | KVM Console/Extender |
| Manufacturer Part Number | LV3010P-001 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Packaged Quantity | 1 |
| Manufacturer | Vertiv |
| Product Model | LV3010 |
| Product Name | LV3010 Single VGA KVM Extender |
| Product Line | LV |
| Product Series | 3000 |
| Brand Name | Vertiv AVOCENT |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |

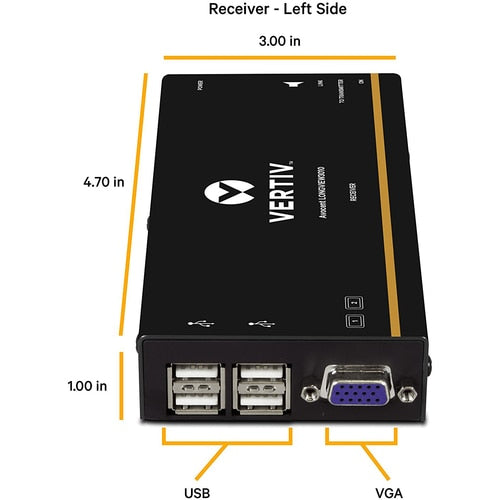

| Transmitter Height | 3" (76.20 mm) |
| Transmitter Width | 6.10" (154.94 mm) |
| Transmitter Depth | 1" (25.40 mm) |
| Receiver Height | 3" (76.20 mm) |
| Receiver Width | 6.10" (154.94 mm) |
| Receiver Depth | 1" (25.40 mm) |
| Transmitter Weight (Approximate) | 15.17 oz (430 g) |
| Receiver Weight (Approximate) | 12.35 oz (350 g) |
