À propos du produit
Atom® Motherboards
C3000 Series BOARDS (System-on-Chip)

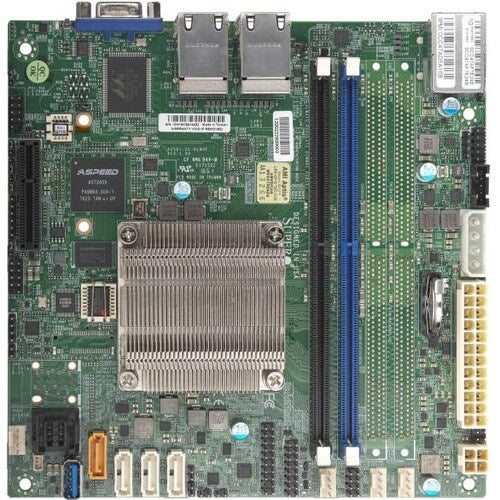

Supermicro's motherboards based on Intel® Atom® processor C3000 series System-on-Chip (formerly Denverton) are well-suited for entry-level server platforms and embedded IPC market.
- Have a perfect symmetry of hardware components needed in the media server or NAS box with Mini ITX form factor
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
Spécifications techniques
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| Interfaces/Ports | |
| VGA | Yes |
| Total Number of USB Ports | 2 |
| Processor & Chipset | |
| Processor Socket | Socket BGA-1310 |
| Chipset Manufacturer | Intel |
| Video | |
| Graphics Controller Model | AST2400 |
| Onboard Video | On-board Video Chipset |
| I/O Expansions | |
| Number of PCI Express x4 Slots | 1 |
| Total Number of PCI Express Slots | 1 |
| Total Number of Expansion Slots | 1 |
| Integrated Processor | |
| Integrated Processor Type | Atom |
| Integrated Processor Model | C3338 |
| Integrated Processor Core | Dual-core (2 Core) |
| Onboard Interfaces | |
| Number of SATA Interfaces | 8 |
| Total Number of Onboard USB Ports | 3 |
| Number of Onboard USB 3.0 Ports | 1 |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.70" (170.18 mm) |
| Depth | 6.70" (170.18 mm) |
| General Information | |
| Product Type | Server Motherboard |
| Manufacturer Part Number | MBD-A2SDI-2C-HLN4F-O |
| Manufacturer Website Address | http://www.supermicro.com |
| Packaged Quantity | 1 |
| Manufacturer | Supermicro Computer, Inc |
| Product Model | A2SDI-2C-HLN4F |
| Product Name | A2SDI-2C-HLN4F Server Motherboard |
| Package Type | Retail |
| Brand Name | Supermicro |
| Memory | |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 2 |
| Memory Form Factor | UDIMM |
| DIMM | |
| Memory Speed Supported | 2400 MHz |
| 1866 MHz | |
| 1600 MHz | |
| 2133 MHz |
