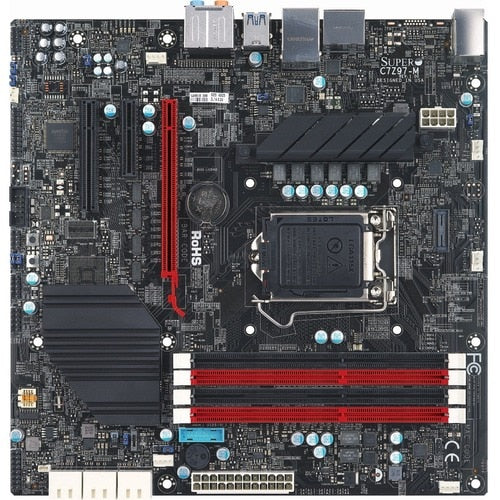

Z97 chipsets / Socket H3 Boards
Supermicro's new motherboard models using Intel Z97 Express Chipset supports 4th generation Desktop Core i7/i5/i3 Processors, Pentium and Celeron. The Z97 new platform supports overclocking of CPU and Memory with increase of up to 50% in performance, with XTU management tool. Z97 platform supports triple displays and collage display and 4K HD resolution graphics. Ideal applications include gaming, workstation and high frequency trading.
Supermicro's new motherboard models using Intel Z97 Express Chipset supports 4th generation Desktop Core i7/i5/i3 Processors, Pentium and Celeron. The Z97 new platform supports overclocking of CPU and Memory with increase of up to 50% in performance, with XTU management tool. Z97 platform supports triple displays and collage display and 4K HD resolution graphics. Ideal applications include gaming, workstation and high frequency trading.
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the Micro ATX workstation motherboard
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- DDR3 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- With 2 USB 2.0 ports, transfer several documents without error
- Supported 0 RAID levels provide data reliability and fault tolerance
- Compatible Intel Core i5 processor provides you with the solid performance to watch videos and play games, while its adaptability makes you more productive
Spécifications techniques
| Network & Communication | |
| Gigabit Ethernet | Yes |
| Audio | |
| Sound Controller Model | ALC1150 |
| Audio Channels | 7.1 |
| Miscellaneous | |
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 9.60" (243.84 mm) |
| Depth | 9.60" (243.84 mm) |
| Video | |
| Graphics Memory Technology | DDR3 SDRAM |
| Graphics Memory Accessibility | Shared |
| Onboard Video | On-board Video Chipset |
| I/O Controller | |
| RAID Levels | 5 |
| 1 | |
| 0 | |
| 10 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of Onboard USB 3.0 Ports | 2 |
| Onboard LEDs Header | Yes |
| Onboard Serial Header | Yes |
| I/O Expansions | |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| PCI Express Standard | PCI Express 3.0 |
| PCI Express 2.0 | |
| Total Number of PCI Express Slots | 3 |
| Total Number of Expansion Slots | 3 |
| Memory | |
| Maximum Memory Supported | 32 GB |
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1600/PC3-12800 |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM |
| UDIMM | |
| Memory Speed Supported | 1600 MHz |
| Processor & Chipset | |
| Processor Supported | Core i5 |
| Core i7 | |
| Core i3 | |
| Total Processor Supported | 1 |
| Processor Socket | Socket H3 LGA-1150 |
| 64-bit Processing | Yes |
| Chipset Manufacturer | Intel |
| Chipset Model | Z97 Express |
| General Information | |
| Product Type | Workstation Motherboard |
| Manufacturer Part Number | MBD-C7Z97-MF-O |
| Manufacturer Website Address | http://www.supermicro.com |
| Packaged Quantity | 1 |
| Manufacturer | Supermicro Computer, Inc |
| Product Model | C7Z97-MF |
| Product Name | C7Z97-MF Workstation Motherboard |
| Package Type | Retail |
| Brand Name | Supermicro |
| Interfaces/Ports | |
| HDMI | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 1 |
| Number of HDMI Outputs | 1 |
| Microphone Port | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.0 Ports | 4 |
| PS/2 Port | Yes |
