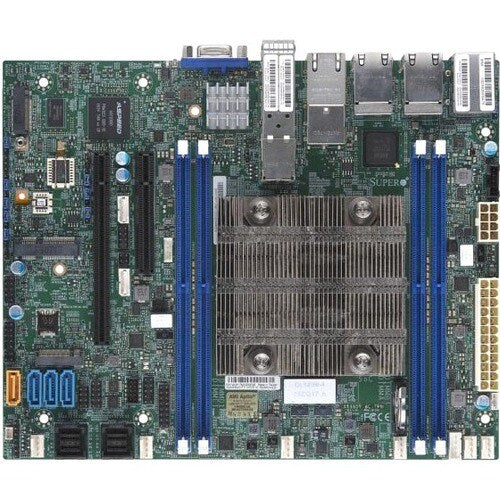

UP Xeon® D-2100 Motherboards - Socket FCBGA 2518
X11SDV Embedded Boards / Xeon D SoC
Supermicro leverages its deep expertise in server technology to bring customers the first Intel® Xeon® D System-on a-Chip (SoC) Family solutions with server-class reliability, availability and serviceability (RAS) features available in ultra-dense and low-power solutions. Xeon D combines the performance and advanced intelligence of Intel® Xeon® processors into a dense, lower-power system-on-a-chip. The solutions will be able to deliver optimized compute and storage for intelligent edge network appliances, mid-range networking, cold and warm storage environments such as storage and network security appliances, SMB storage servers, Hadoop, web hosting, controllers, dedicated compute nodes, and other similar applications.
- Flex ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- RAID supported levels provide data reliability and fault tolerance
Spécifications techniques
| Network & Communication | |
| Gigabit Ethernet | Yes |
| 10Gigabit Ethernet | Yes |
| Processor & Chipset | |
| Processor Socket | Socket BGA-2518 |
| Chipset Manufacturer | Intel |
| Video | |
| Graphics Controller Model | AST2500 |
| Onboard Video | On-board Video Chipset |
| Integrated Processor | |
| Integrated Processor Type | Xeon |
| Integrated Processor Model | D-2123IT |
| Integrated Processor Core | Quad-core (4 Core) |
| Interfaces/Ports | |
| VGA | Yes |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 12 |
| Total Number of Onboard USB Ports | 2 |
| Number of M.2 Interfaces | 2 |
| Physical Characteristics | |
| Form Factor | Flex ATX |
| Width | 9" (228.60 mm) |
| Depth | 7.25" (184.15 mm) |
| I/O Expansions | |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Total Number of PCI Express Slots | 2 |
| Total Number of Expansion Slots | 2 |
| I/O Controller | |
| RAID Levels | 1 |
| 5 | |
| 10 | |
| 0 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| General Information | |
| Product Type | Server Motherboard |
| Manufacturer Part Number | MBD-X11SDV-4C-TP8F-O |
| Manufacturer Website Address | http://www.supermicro.com |
| Manufacturer | Supermicro Computer, Inc |
| Product Model | X11SDV-4C-TP8F |
| Product Name | X11SDV-4C-TP8F Server Motherboard |
| Package Type | Retail |
| Brand Name | Supermicro |
| Memory | |
| Maximum Memory Supported | 512 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM |
| LRDIMM | |
| RDIMM | |
| Memory Speed Supported | 2400 MHz |
| 2666 MHz | |
| 2133 MHz |
