Supermicro Solutions based on Intel® Xeon®-D processors
Supermicro leverages its deep expertise in server technology to bring customers the first Intel® Xeon® D System-on-a-Chip (SoC) Family solutions with server-class reliability, availability and serviceability (RAS) features available in ultra-dense and low-power solutions. Xeon D combines the performance and advanced intelligence of Intel® Xeon® processors into a dense, lower-power system-on-a-chip. The solutions will be able to deliver optimized compute and storage for intelligent edge network appliances, mid-range networking, cold and warm storage environments such as storage and network security appliances, SMB storage servers, Hadoop, web hosting, controllers, dedicated compute nodes, and other similar applications.
These advanced technology building blocks offer the best work load optimized solutions and long life availability with the Intel® Xeon® processor D family including:
- Up to 16 cores providing up to 3x performance improvement
- Up to: 512GB ECC DDR4 LRDIMM operating at 2666MHz
- PCI-E 3.0 x16 and PCI-E 3.0 x8 slots, USB 3.0 I/O
- 12 SATA 3.0 storage ports
- Quad 10 GbE plus quad GbE LAN networking
- IPMI 2.0
- 8-pin 12V DC or ATX power source
- 7 years product life
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the Flex ATX server motherboard
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- RAID supported levels provide data reliability and fault tolerance
Spécifications techniques
| Processor & Chipset | |
| Total Processor Supported | 1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| 10Gigabit Ethernet | Yes |
| Video | |
| Graphics Controller Model | AST2500 |
| Onboard Video | On-board Video Chipset |
| Interfaces/Ports | |
| VGA | Yes |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Miscellaneous | |
| Compatibility | Server:
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Onboard Interfaces | |
| Number of SATA Interfaces | 12 |
| Total Number of Onboard USB Ports | 2 |
| Number of M.2 Interfaces | 2 |
| Physical Characteristics | |
| Form Factor | Flex ATX |
| Width | 9" (228.60 mm) |
| Depth | 7.25" (184.15 mm) |
| I/O Expansions | |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Total Number of PCI Express Slots | 2 |
| Total Number of Expansion Slots | 2 |
| Integrated Processor | |
| Integrated Processor Type | Xeon |
| Integrated Processor Model | D-2146NT |
| Integrated Processor Speed | 2.30 GHz |
| Integrated Processor Core | Octa-core (8 Core) |
| I/O Controller | |
| RAID Levels | 1 |
| 5 | |
| 0 | |
| 10 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| General Information | |
| Product Type | Server Motherboard |
| Manufacturer Part Number | MBD-X11SDV-8C-TP8F-O |
| Manufacturer Website Address | http://www.supermicro.com |
| Manufacturer | Supermicro Computer, Inc |
| Product Model | X11SDV-8C-TP8F |

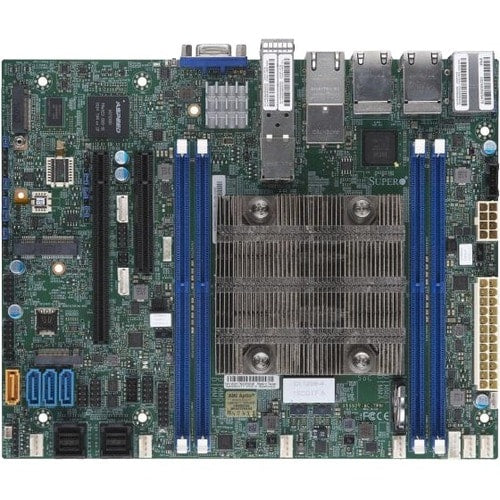

| Product Name | X11SDV-8C-TP8F Server Motherboard |
| Package Type | Retail |
| Brand Name | Supermicro |
| Memory | |
| Maximum Memory Supported | 512 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 4 |
| Memory Form Factor | RDIMM |
| DIMM | |
| LRDIMM | |
| Memory Speed Supported | 2400 MHz |
| 2666 MHz | |
| 2133 MHz |
