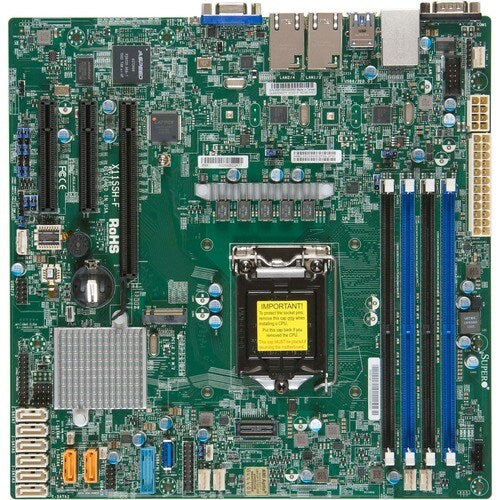

Xeon® E3-1200 v5 Family Boards / Socket H4 (LGA 1151)
Supermicro's single processor Socket H4 designs feature the Intel® C236/C232 chipset which support the Intel® Xeon E3-1200 v5 processor family and Intel® 6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0/USB 3.1, PCI-E 3.0 M.2 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, and DVI ports. Designed with performance, reliability, manageability and long life in mind, Supermicro's single processor motherboards are the perfect solution for a variety of server, workstation and embedded applications.
Supermicro's single processor Socket H4 designs feature the Intel® C236/C232 chipset which support the Intel® Xeon E3-1200 v5 processor family and Intel® 6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0/USB 3.1, PCI-E 3.0 M.2 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, and DVI ports. Designed with performance, reliability, manageability and long life in mind, Supermicro's single processor motherboards are the perfect solution for a variety of server, workstation and embedded applications.
- Micro ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- Supported 0 RAID levels provide data reliability and fault tolerance
- Compatible Intel Core i3 processor is smart and responsive, which lets you use multiple applications without any lag
Spécifications techniques
| Miscellaneous | |
| Compatibility | Supermicro SuperChassis 1U Chassis:
|
| Network & Communication | |
| Gigabit Ethernet | Yes |
| Video | |
| Graphics Controller Model | AST2400 |
| Onboard Video | On-board Video Chipset |
| Interfaces/Ports | |
| VGA | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 2 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 8 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 3.0 Ports | 3 |
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 9.60" (243.84 mm) |
| Depth | 9.60" (243.84 mm) |
| I/O Expansions | |
| Number of PCI Express x8 Slots | 2 |
| Number of PCI Express x16 Slots | 1 |
| Total Number of PCI Express Slots | 3 |
| Total Number of Expansion Slots | 3 |
| I/O Controller | |
| RAID Levels | 0 |
| 1 | |
| 10 | |
| 5 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| General Information | |
| Product Type | Server Motherboard |
| Manufacturer Part Number | MBD-X11SSH-F-O |
| Manufacturer Website Address | http://www.supermicro.com |
| Manufacturer | Supermicro Computer, Inc |
| Product Model | X11SSH-F |
| Product Name | X11SSH-F Server Motherboard |
| Package Type | Retail |
| Brand Name | Supermicro |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM |
| UDIMM | |
| Memory Speed Supported | 1600 MHz |
| 2133 MHz | |
| 1866 MHz | |
| Processor & Chipset | |
| Processor Supported | Pentium |
| Core i3 | |
| Xeon | |
| Celeron | |
| Total Processor Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Chipset Manufacturer | Intel |
| Chipset Model | C236 |
