À propos du produit

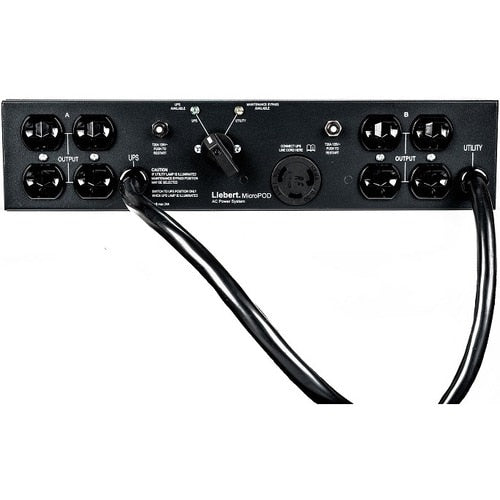

The Vertiv Liebert MicroPod External Maintenance Bypass POD (MP2-130C) is an external power output distribution (POD) unit and maintenance bypass switch for your uninterruptible power supply (UPS) unit. With the MicroPod, you can avoid initiating unnecessary downtimes during UPS maintenance or replacements. It allows the manual transfer of power from the UPS to the utility source without power interruption to the connected load, ensuring continuous uptime for your critical operations. The MicroPod MP2-130C is designed for the Vertiv Liebert GXT and Vertiv Liebert PSI UPS 3kVA models and below, but is compatible with other UPS brands as well. It comes with brackets for easy rack mounting and is equipped with three NEMA L5-30P input connectors. The MicroPOD has eight NEMA 5-20R output connectors and is available at 120V and supports a max current of 24A.
- Avoid initiating unnecessary downtimes during UPS maintenance or replacement
- Designed for Vertiv Liebert PSI and Vertiv Liebert GXT UPS but is compatible with any UPS brand 3kVA models or lower
- Shipped with mounting brackets for easy mounting on any standard 19" rack, oin the floor, or on the wall
- Output: Eight (8) NEMA 5-20R| Input: Three (3) NEMA L5-30P| Max Current: 24Amps| AC 120V
- Comes with two-year, full-unit, and no-hassle replacement warranty
Spécifications techniques
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Liebert Micro-UPS Systems |
| Certifications & Standards |
|
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Current | 24 A |
| Physical Characteristics | |
| Form Factor | External |
| Height | 3.50" (88.90 mm) |
| Width | 17" (431.80 mm) |
| Depth | 3.50" (88.90 mm) |
| Technical Information | |
| Protection Type | Surge |
| Signal | |
| Receptacles | 8 x NEMA 5-20R |
| Plug/Connector Type | NEMA L5-30P |
| General Information | |
| Product Type | Bypass Switch |
| Manufacturer Part Number | MP2-130C |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | MP2-130C |
| Product Name | MicroPOD MP2-130C Bypass Switch |
| Product Line | MicroPOD |
| Brand Name | Vertiv Liebert |
