À propos du produit
Thunderbolt 3 Dock Turns Your MacBook Pro into a 10-Port 8K Workstation
This Thunderbolt 3 docking station dramatically expands the potential of your MacBook Pro or Windows laptop by adding 10 ports to its Thunderbolt 3 or USB-C MFDP port. Not only does the MTB3-DOCK-03INT allow you to transmit 8K video to one display or 4K video to two displays, you can also add USB peripherals, record a podcast, connect to a Gigabit Ethernet network, charge your laptop and more, all at the same time.
Supports DisplayPort Alternate Mode for Transmitting Audio/Video Signals
By connecting the included Thunderbolt 3 cable to a source device that supports DisplayPort Alt Mode, you can output 4K video and digital audio to a compatible monitor, television or projector without installing special software drivers.
Thunderbolt 3 Supports Blisteringly Fast 40 Gbps Data Transfer Speeds
The included Thunderbolt 3 cable supports bidirectional speeds up to 40 Gbps, which is eight times faster than USB 3.2 Gen 1, four times faster than Thunderbolt 1 and twice as fast as Thunderbolt 2. With dual 20 Gbps channels moving data both directions at the same time, the MTB3-DOCK-03INT is perfectly suited for 4K video streaming and editing on two monitors, as well as transferring large RAW video or CAD files. When connected to a host computer's USB-C MFDP port, the cable supports 26.2 Gbps speeds.
DisplayPort Multi-Stream Transport (MST) Allows Connection of Multiple Displays
By connecting the included Thunderbolt 3 cable to a source that supports DisplayPort MST Mode, you may connect two displays simultaneously at resolutions of 8K (30 Hz) plus 4K (30 Hz) or both displays at 4K (60 Hz). This allows you to display the same image on both monitors, extend your host desktop across both with different windows open on each, or combine both into one large display as a video wall.
Transmits Crystal-Clear 8K and 4K Video for Professional Editing and Digital Signage
Both the DisplayPort and Thunderbolt 3 video ports can achieve resolutions up to 8K (7680 x 4320) at 30 Hz, when used with a Thunderbolt 3-enabled source computer and Thunderbolt 3 cable. When used with an MFDP-enabled source computer, the DisplayPort connector's maximum resolution is 4K (3840 x 2160) at 60 Hz. The Thunderbolt 3 port also allows daisy-chaining up to six Thunderbolt 3 devices, including RAID memory and other storage devices.
- Connects 2 displays at the same time for multitasking and increasing productivity
- Transmits 8K video (7680 x 4320) @ 30 Hz to a single display for professional users
- Can operate with Thunderbolt 3 or USB-C Multi-Function DisplayPort (MFDP) host
- Supports Thunderbolt 3 speeds up to 40 Gbps between compatible devices
- USB 3.2 Gen 2 data ports allow connection of flash drives and other peripherals
- 3-year limited warranty
Spécifications techniques
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Power Description | |
| Maximum Power Supply Wattage | 120 W |
| Software | |
| Operating System Supported | Windows |
| macOS | |
| General Information | |
| Product Type | Docking Station |
| Manufacturer Part Number | MTB3DOCK03INT |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Manufacturer | Eaton Corporation |
| Product Model | MTB3-DOCK-03INT |
| Product Name | MTB3-DOCK-03INT Docking Station |
| Brand Name | Tripp Lite by Eaton |
| Physical Characteristics | |
| Weight (Approximate) | 3.37 lb (1529.97 g) |
| Height | 0.69" (17.53 mm) |
| Width | 5.83" (148.08 mm) |
| Depth | 3.15" (80.01 mm) |
| Product Color | Black |
| Gray | |
| Color Family | Dual Color |
| Miscellaneous | |

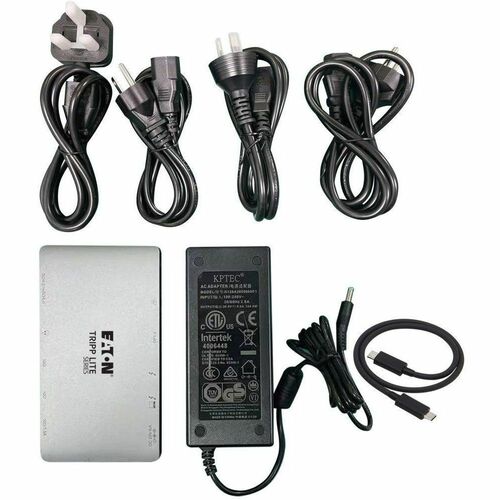

| Package Contents |
|
| Compatibility | MacBook Pro or Windows Laptop |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Brand Compatibility | Apple |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Interfaces/Ports | |
| Host Interface | Thunderbolt 3 |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Number of USB 3.0 Ports | 2 |
| Thunderbolt | Yes |
| Headphone/Microphone Combo Port | Yes |
| Number of RJ-45 Ports | 1 |
| Number of Thunderbolt 3 Ports | 2 |
| USB Type-C | Yes |
| DisplayPort Version | 1.4 |
| USB Type-A | Yes |
| Technical Information | |
| Device Supported | Notebook/Monitor |
| Connectivity Technology | Wired |
| Memory Card Supported | SD |
| microSD | |
| Memory Card Reader | Yes |
| Number of Displays Supported | 2 |
| Supported Resolutions | 1280 x 720 |
| 7680 x 4320 | |
| 1920 x 1080 | |
| 3840 x 2160 | |
| 5120 x 2880 | |
| Screen Mode Supported | 8K |
| 5K | |
| 4K |
