À propos du produit
The N022-01K-BK Cat5e 350 MHz Bulk Solid-Core PVC Cable is premium cabling designed for Cat5/5e premise applications, such as connecting an Ethernet wall jack to a router, patch panel or switch. Designed for fast transmission and excellent signal quality, this black cable ensures peak performance through your LAN (local area network).
Manufactured from 24 AWG copper wire, the four-pair solid UTP N022-01K-BK delivers speeds up to 350 MHz/1 Gbps. Protected by a CMR-rated PVC jacket, this cable is ideal for all non-plenum horizontal wiring applications, including 10/100/1000 Base-T Ethernet, 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice and Token Ring Type 3 applications.
The N022-01K-BK meets most current industry standards, including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 5e, draft 11).
Manufactured from 24 AWG copper wire, the four-pair solid UTP N022-01K-BK delivers speeds up to 350 MHz/1 Gbps. Protected by a CMR-rated PVC jacket, this cable is ideal for all non-plenum horizontal wiring applications, including 10/100/1000 Base-T Ethernet, 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice and Token Ring Type 3 applications.
The N022-01K-BK meets most current industry standards, including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 5e, draft 11).
- Ideal for all non-plenum horizontal wiring applications
- Rated for 350 MHz/1 Gbps communications

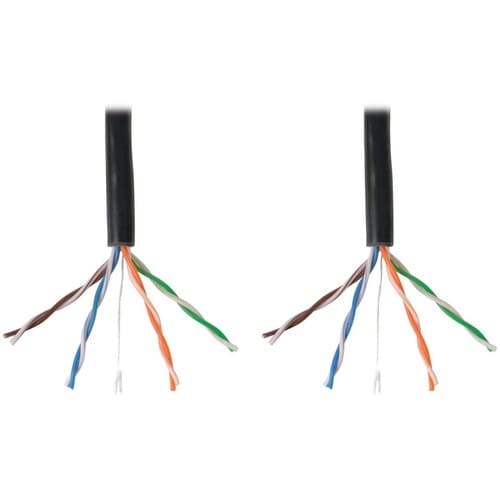

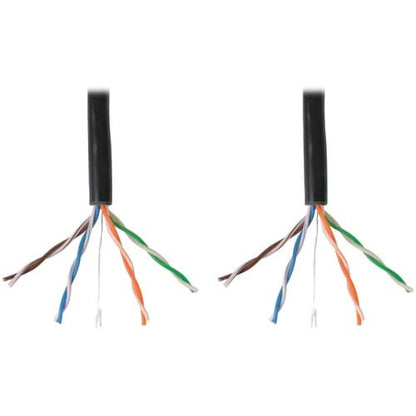

- High-quality 24 AWG 4-pair solid copper wire
- CMR-rated PVC jacket
- Meets IEEE 802.3ab and ANSI/EIA/TIA 568 standards
Spécifications techniques
| Miscellaneous | |
| Certifications & Standards |
|
| Country of Origin | South Korea |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Material Details | Copper - Conductor |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Product Color | Black |
| Color Family | Black |
| Product Material | PVC |
| Copper | |
| Jacket Color | Black |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | N022-01K-BK |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Manufacturer | Eaton Corporation |
| Product Model | N022-01K-BK |
| Product Name | Cat5e 350 MHz Bulk Solid-Core PVC Cable, Black, 1000 ft |
| Package Type | Bulk |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Cable Length | 1000 ft (304.80 m) |
| Conductor | Copper |
| Data Transfer Rate | 1 Gbit/s |
| Device Supported | Network Device |
| Patch Panel | |
| Switch | |
| Router | |
| Jacket Type | CMR |
| Shielding | No |
| Cable Characteristic | Patch Cable |
| Cable Type | Category 5e |
| Connector Type on First End | Bare Wire |
| Connector Type on Second End | Bare Wire |
| American Wire Gauge | 24 AWG |
| Connector on First End Details | Bare Wire |
| Connector on Second End Details | Bare Wire |
| Number of Pairs | 4 |
