À propos du produit

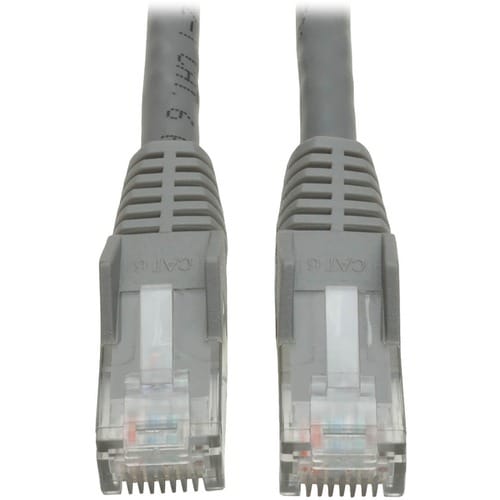

This category 6, molded patch cable lets you stay ahead of the game by using a high-speed cable to distribute data, voice and video. Cable delivers stable performance up to 550MHz. High-quality copper wire and a staggered-pin plug design keep near-end cross-talk levels to a minimum. Snagless design protects the locking tabs on the RJ45 connectors from being damaged or snapped off during installation. 7' cable is designed for use in category 6, category 5e and category 5 applications.
- Premium cabling for Category 6, Category 5e and Category 5 applications—rated for 550 MHz/1 Gbps communications
- Designed to meet Category 6 specifications; reduces cross-talk and return loss
- IEC 802.3ab
- PVC 4-pair stranded UTP

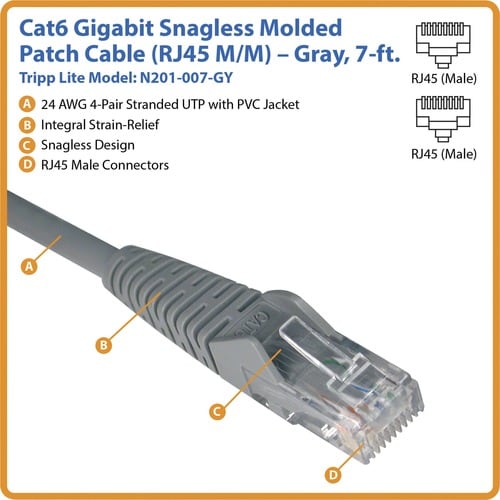

- All cables feature boots with integral strain-relief and RJ45 (Male) connectors
Spécifications techniques
| Warranty | |
| Additional Warranty Information | Limited Lifetime warranty |
| Miscellaneous | |
| Additional Information |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | N201-007-GY |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Packaged Quantity | 1 / Bag |
| Manufacturer | Eaton Corporation |
| Product Model | N201-007-GY |
| Product Name | Cat.6 UTP Patch Network Cable |
| Brand Name | Tripp Lite by Eaton |
| Physical Characteristics | |
| Material Details | Copper - Conductor |
| Shipping Weight (Approximate) | 3.20 oz (90.72 g) |
| Shipping Height | 7" (177.80 mm) |
| Shipping Width | 9" (228.60 mm) |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Product Color | Gray |
| Color Family | Gray |
| Product Material | Copper |
| Technical Information | |
| Cable Length | 7 ft (2.13 m) |
| Conductor | Copper |
| Data Transfer Rate | 1 Gbit/s |
| Device Supported | ATM |
| Network Device | |
| Jacket Type | CM |
| Shielding | No |
| Features | Strain Relief |
| Stranded | |
| Molded | |
| Minimized Near-End Crosstalk (NEXT) | |
| Damage Resistant | |
| Cable Characteristic | Patch Cable |
| Cable Type | Category 6 |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| American Wire Gauge | 26 AWG |
| Contact Plating | Gold |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Boot Type | Snagless |
| Number of Pairs | 4 |
