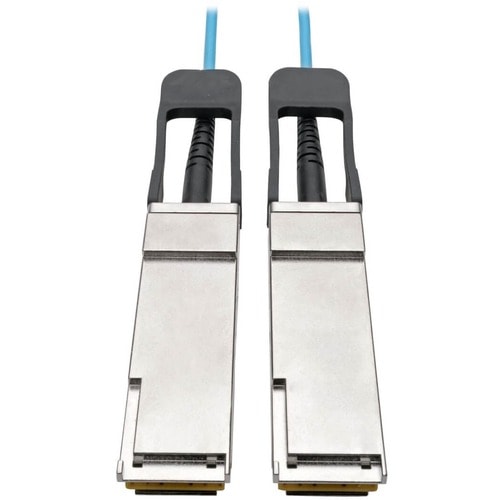

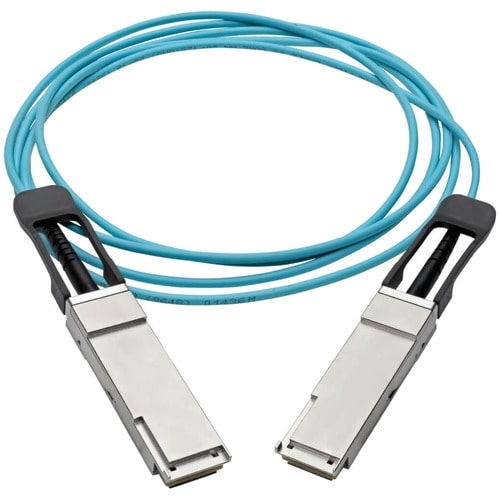

QSFP+ Fiber Cable Connects Network Equipment at Speeds up to 40 Gbps
This one-meter (three-foot) QSFP+ Active Optical Cable (AOC) provides next-generation performance by combining four full-duplex 10 Gbps SFP+ channels into one affordable high-density package. Each male connector contains four fiber optic transceivers, each capable of data transfer speeds up to 10 Gbps. Together, the N28F-01M-AQ provides an aggregated speed up to 40 Gbps, making it ideal for switches, servers, routers and other high-end networking equipment.

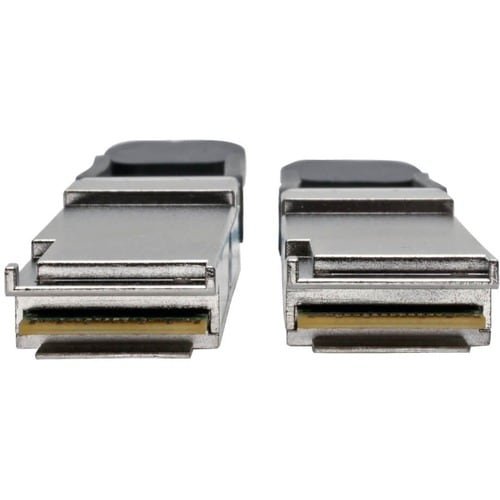

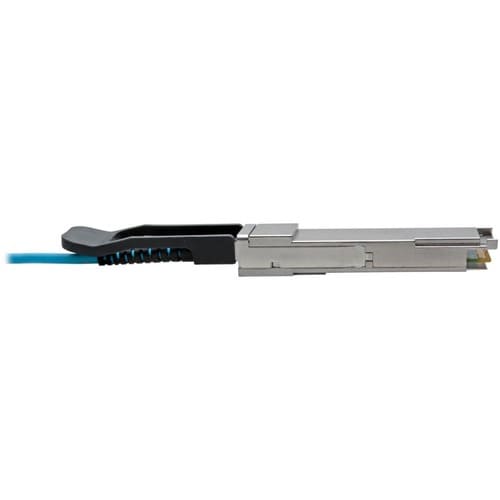

Push/Pull Tab Connectors Provide Quick, Easy Connections
The hot-pluggable QSFP+ connectors include ergonomic push/pull tabs, which are easily accessible in high-density applications and make the cable easy to install and remove with just one hand.
Engineered and Optimized for Bandwidth-Intense Applications
This QSFP+ to QSFP+ cable integrates a 40 Gbps Ethernet-optimized 38-position "board as connector" design. Die-cast zinc connectors offer superior EMI (electromagnetic interference) resistance and reduced crosstalk. The connectors have also been tested to meet stringent insertion loss standards. The QSFP+ optical cable's 8-pair wire technology is optimized for 40GBASE-CR4, 6G SAS, Fibre Channel, PCIe, SONET and InfiniBand applications. The plenum-rated OFNP jacket is designed for connecting network components in drop ceiling, walls and ducts.
Cisco-Compatible Cable Fully Compliant with the Latest Standards
This QSFP+ cable is fully compliant with the latest QSFP+ Multi-Source Agreement (MSA), IEEE 802.3ba standards and industry-standard SFF-8436 specifications. It is compatible with all QSFP and QSFP+ ports and Cisco's QSFP-H40G-AOC1M cable.
- Features Active
- Experience a simpler way to connect devices with the entire business network
- Features Fiber Optic cable type
- Fully compatible with servers
Spécifications techniques
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 3.17 oz (89.99 g) |
| Shipping Height | 12" (304.80 mm) |
| Shipping Width | 9.10" (231.14 mm) |
| Product Color | Aqua |
| Color Family | Green |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | N28F-01M-AQ |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | N28F-01M-AQ |
| Product Name | QSFP+ to QSFP+ Active Optical Cable - 40Gb, AOC, M/M, Aqua, 1 m (3 ft.) |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Cable Length | 3.3 ft (1.01 m) |
| Data Transfer Rate | 40 Gbit/s |
| Device Supported | Router |
| Switch | |
| Server | |
| Network Device | |
| Features | Active |
| EMI Protection | |
| Cable Type | Fiber Optic |
| Connector Type on First End | QSFP+ Network - Male |
| Connector Type on Second End | QSFP+ Network - Male |
| Fiber Optic Mode | Multi-mode |
| Connector on First End Details | 1 x QSFP+ Network - Male |
| Connector on Second End Details | 1 x QSFP+ Network - Male |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
