À propos du produit
Among the many features available on the Dahua VU-MORE Colour Lite Series camera are motion detection and Smart Dual Illumination, which offer deterrent, overtness, and full-color video. For a reasonable price, the camera offers improved colour seeing at night for a range of small to mid-size applications.
For network video security applications, Dahua's Lite Series network video recorders provide outstanding performance and good recording quality. With a fast CPU and up to 4K resolution, this professional NVR is ideal for applications where details are crucial for identification. The NVR also has backup storage, edge storage, centre storage, remote management, and a mouse shortcut operating menu.
The NVR is compatible with several third-party devices making it the appropriate answer for security systems with or without a video management system (VMS). When paired with 4K cameras, its open design allows for multi-user access and compatibility with the ONVIF S, T, and G protocols.

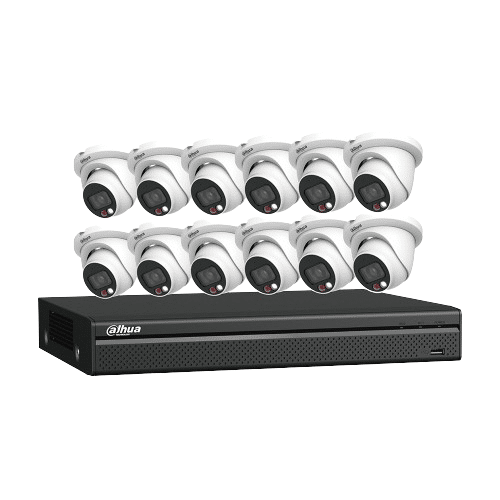

IP Kit: 16-CH NVR + 12 x 4MP, VU-MORE Night Color Eyeball Cameras Features:
- 4MP Network Cameras
- 4MP at 20 fps Maximum Resolution, 2.8 mm Fixed Lens
- Analytics+ Function – Perimeter Protection and Smart Motion Detection+
- Smart Dual Illumination — IR and White Light
- True WDR (120 dB) and Day/Night (ICR)
- 16-channel 4K NVR
- Lite Series NVR with Sixteen (16) Channels
- Two (2) SATA III Ports, Up to 10 TB capacity per HDD
- Maximum 160 Mbps Recording Bandwidth
- Compatible with DMSS Application
IP Kit: 16-CH NVR + 12 x 4MP, VU-MORE Night Color Eyeball Cameras Specifications:
N42DJS2 4MP VU-MORE Color Eyeball Network Camera
- Camera
- Image Sensor 1/3-in. CMOS
- Effective Pixels 2688 (H) × 1520 (V), 4MP
- Scanning System Progressive
- RAM/ROM 128 MB/128 MB
- Electronic Shutter Speed Auto, Manual, 1/3 s to 1/100,000 s
- Minimum Illumination0.008 lux at F1.6 (Color, 30 IRE) 0.0008 lux at F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)
- S/N Ratio > 56 dB
- IR Distance 30 m (98.43 ft) (IR), 15 m (49.21 ft) (Warm light)
- IR On/Off Control Auto; Manual
- Illuminators One (1) IR LED, One (1) Warm Light
- Lens
- Lens Type Fixed-focal
- Iris Type Fixed
- Mount Type M12
- Focal Length 2.8 mm
- Maximum Aperture F1.6
- Angle of View
- Horizontal 95°
- Vertical 52°
- Diagonal 114°
- Close Focus Distance 0.9 m (2.95 ft)
- DORI1 Distance
- Detect 63.6 m (208.66 ft)
- Observe25.4 m (83.33 ft)
- Recognize 12.7 m (41.67 ft)
- Identify 6.4 m (20.99 ft)
- Pan / Tilt / Rotation
- Pan: 0° to 360°
- Tilt: 0° to 78°
- Rotation: 0° to 360°
- Video
- Compression Smart H.265+, Smart H.264+, H.264H, H.265, H.264, H.264B, MJPEG (Only supported by the substream)
- Streaming Capability Two (2) Streams
- Resolution 4MP (2688 × 1520), 3.6MP (2560 × 1440), 3MP (2304 × 1296), 1080p (1920 × 1080), 1.3MP (1280 ×960), 720p (1280 × 720), D1 (704 × 480), VGA (640 × 480), CIF (352 × 240)
- Frame Rate
- Main Stream 2688 × 1520 at 20 fps
- Sub Stream 704 × 480 at 20 fps
- Bit Rate H.264: 32 kbps to 6144 kbps H.265: 12 kbps to 6144 kbps
- Bit Rate Control CBR, VBR
- Day/Night Auto (ICR); Manual
- BLC Mode BLC , HLC, True WDR (120 dB)
- White Balance Auto, Natural, Street Lamp, Outdoor, Manual, Regional, Custom
- Gain Control Auto, Gain Priority, Shutter Priority, Manual
- Noise Reduction 3DNR
- Motion Detection Off, On (4 Zones, Rectangle)
- Region of Interest Off, On (4 Zones)
- Smart IR Supported
- Image Rotation 0°, 90°, 180°, 270°
- Mirror Off, On
- Privacy Masking Off, On (4 Areas, Rectangle)
- Audio
- Built-in Microphone Yes
- Compression G.711a, G.711Mu, PCM, G.726
- Network
- Ethernet RJ-45 (10/100 Base-T)
- Protocol IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP
- Interoperability ONVIF (Profile S, Profile T), CGI, P2P, Milestone, SDK, API
- Maximum User Access 6 (Total bandwidth: 36 M)
- Edge Storage FTP, SFTP, Micro SD Card Slot (Maximum 256 GB)
- Web Viewer IE, Chrome, Firefox
- Management Software DSS, DMSS
- Mobile Operating System iOS, Android
- Cyber Security Configuration Encryption, Trusted Execution, Digest, Security Logs, WSSE, Account Lockout, Syslog, Video Encrypton, 802.1x, IP/MAC Filtering, HTTPS, Trusted Upgrade, Trusted Boot, Firmware Encryption, Generating and Importing X.509 Certification
- Certifications
- Safety EN 62368-1
- Electromagnetic Compatibility (EMC) FCC CFR 47 Part 15 Subpart B Electromagnetic Compatibility Directive 2014/30/ EU
- Electrical
- Power Supply 12 VDC or PoE (802.3af)
- Power Consumption:
- Basic 1.9 W (12 VDC), 2.4 W (PoE)
- Maximum 5.2 W (12 VDC), 5.9 W (PoE) (H.265 + Intelligence + WDR + Warm Light)
- Environmental
- Operating Conditions –40°C to +60°C (–40°F to +140°F), < 95% RH
- Storage Conditions –40°C to +60°C (–40°F to +140°F)
- Ingress Protection IP67
- Construction
- Casing Metal
- Dimensions 100.9 mm × ?109.9 mm (3.97 in. × ?4.33 in.)
- Net Weight 0.37 kg (0.82 lb)
- Gross Weight 0.51 kg (1.12 lb)
- Analytics+ Functions
- Perimeter Protection
- Detects human or vehicle violations using the following methods: Tripwire: a target crosses a defined line. Intrusion: a target enters or exits a defined perimeter.
- Monitors a combination of detection methods.
- Search and retrieve video based on target type.
- Intelligent Search: Works with a Smart NVR to perform and refine intelligent searches, event extraction and merging to event videos
- Smart Motion Detection+2
- Differentiates between and classifies human and vehicle objects.
- Filters false alarms due to leaves, lights, animals, and other inconsequential objects.
- Extracts human or vehicle objects from recorded video for quick target search and retrieval.
- Perimeter Protection
- Intelligent Video System Functions (IVS triggers an alarm and takes a defined action for the following events):
- Standard Features:
- Tampering with the camera.
- Error writing to an onboard Micro SD card.
- Error sending or receiving data over the network.
- Unauthorized access to the camera.
- IP Address Conflict
- Standard Features:
N42C3P4 16-channel 4K Network Video Recorder (4 TB)
- System
- Main Processor Industrial-grade Embedded Processor
- Operating System Embedded Linux
- Audio and Video
- IP Camera Input 16 Channels
- Audio
- Input: One (1) Channel, RCA
- Output: One (1) Channel, RCA
- Analytics+ Recording3
- Perimeter Protection
- Channels Eight (8)
- Search By Channel, Time, and Event Type
- Smart Motion Detection+
- Channels 12
- Search By Target Classification (Human or Vehicle)
- Perimeter Protection
- Display
- Interface One (1) HDMI One (1) VGA
- Native Output Resolution 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720
- Maximum Decoding:
- Two (2) Channel of 8 MP at 30 fps
- Four (4) Channels of 4 MP at 30 fps
- Eight (8) Channels of 2 MP at 30 fps
- 16 Channels of 2 MP at 15 fpss
- Multi-screen Display 1/4/8/9/16
- On-screen Display Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording
- Recording
- Video Compression Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
- Audio Compression PCM, G.711A, G.711Mu, G.726
- Supported IP Camera Resolution 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1
- Maximum Recording Bandwidth 160 Mbps
- Record Mode Manual Recording; Alarm Recording; SMD Recording; Smart Recording
- Video Detection and Alarm
- Alarm Input Four (4) Channels
- Relay Output Two (2) Channels
- General Alarms Motion Detection, Privacy Masking, Video Loss, Scene Changing, PIR Alarm, IPC External Alarm
- Anomaly Alarms Camera Disconnection, Storage Error, Disk Full, IP Conflict, MAC Conflict, Login Locked, Cybersecurity ExceptionAnalytics+ Alarms Face Detection, Perimeter Protection (Intrusion and Tripwire), IVS, People Counting, Heat Map, SMD Alarms
- Alarm Actions Recording, Snapshot, Audio, Buzzer, Log, Preset, Email
- Playback and Backup
- Sync Playback 1/4/8
- Search Mode Time/Date, Alarm, MD and Exact Search (Accurate to One (1) Second), Smart Search
- Playback Function Play, Pause, Stop, Rewind, Fast Play, Slow Play, Reverse, By Frame, Full Screen, Backup Selection (Video Clip or File), Partial Zoom, Audio On/Off
- Backup Mode USB Device, Network
- Third-party Support
- Brands Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and Others
- Network
- Ethernet One (1) RJ-45 Port (10/100/1000 Mbps), Selfadaptive
- PoE 16 Ports (IEEE802.3af/at)
- Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP Camera, DVR, NVS), P2P, Auto-register
- Maximum User Access 128
- Mobile Operating System iOS, Android
- Browser Chrome, Microsoft Edge
- Interoperability ONVIF Profiles (S,T,G); CGI; SDK
- Storage
- Internal HDD Two (2) SATA III Ports, Up to 10 TB capacity per HDD
- HDD Mode Single
- Auxiliary Interface
- USB Two (2) USB 2.0 Ports (Rear Panel)
- RS-232 One (1) Port
- Electrical
- Power Supply 100 VAC to 240 VAC, 47 Hz to 63 Hz, 3.5 A
- NVR Power Consumption < 10 W, without HDD
- Total PoE Budget 25.5 W single port, 117 W total
- Environmental
- Operating Conditions –10° C to 55° C (14° F to 131° F), 10% to 93% RH
- Storage Conditions 0° C to 40° C (32° F to 104° F), 30% to 85% RH
- Construction
- Dimensions (W x L x H) 375.0 mm x 327.90 mm x 53.0 mm (14.76 in. x 12.91 in. x 2.09 in.)
- Net Weight 2.63 kg (5.80 lb), without HDD
- Gross Weight 3.91 kg (8.62 lb), without HDD
- Construction
- Safety EN 62368-1, UL 62368-1, CAN/CSA C22.2 No.62368-1-14
- Electromagnetic Compatability (EMC) CFR 47 FCC Part 15 Subpart B, EN55032, EN55024, EN55035, EN61000-3-2, EN61000-3-3, EN50130-4
