À propos du produit

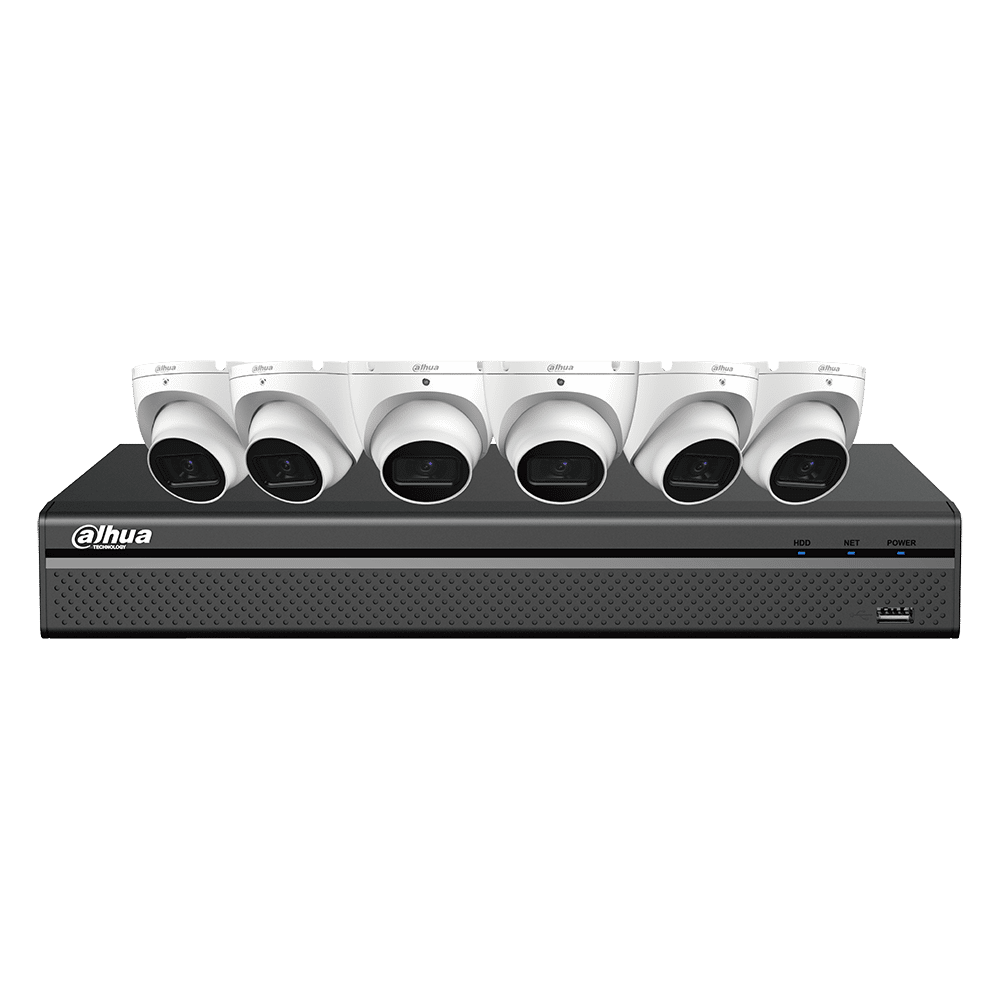

Dahua N488L64A E-VU IP Kit 8-CH NVR 4TB + 6 x 8MP Turret Cameras
The Dahua Network Security System provides all the components to quickly install, configure, and employ a complete video security solution. The IP cameras offer the clarity of 8MP video, and the NVR offers built-in motion detection algorithms, alarm triggers, and customized recording modes. The NVR also features Plug and Play technology to connect quickly to cameras on the same network. Each component accepts a PoE power supply to facilitate installation.
8MP Network Cameras
- 8MP at 15 fps Maximum Resolution
- Maximum IR LED Length 30 m (98.43 ft) with Smart IR
- 2.8 mm fixed lens
- Built-in Microphone
- IP67 Ingress Protection
4K Network Video Recorder
- 4 TB Pre-installed Hard Disk Drive
- Supports Remote Configuration and Management of Network Cameras
- Smart H.265+ and Smart H.264+ Dual Codec
- Maximum 160 Mbps Incoming Bandwidth
- Up to 8MP Resolution for Preview and Playback
Dahua N488L64A E-VU IP Kit Turret Cameras Features
- Smart IR Illumination
- With IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts the intensity of the camera's infrared LEDs to compensate for the distance of an object. Smart IR technology prevents IR LEDs from whitening out images as they come closer to the camera. The camera's integrated infrared illumination provides high performance in extreme low-light environments up to 30 m (98 ft).
- Flexible Recording
- The NVR offers a variety of configurable recording options and schedules that saves disk space and active monitoring time. The NVR monitors incoming video and can be programmed to record if motion is detected or if an alarm is triggered. The NVR can also be programmed to record on a schedule or at different intervals. The recording options and schedules can be set for each individual camera or copied to all cameras.
- High-Efficiency Video Coding (H.265)
- The H.265 (ITU-T VCEG) video compression standard offers double the data compression ratio at the same level of video quality, or substantially improved video quality at the same bit rate, as compared to older video compression technologies. H.265 offers such impressive compression by expanding the pattern comparison and difference-coding, improving motion vector prediction and motion region merging, and incorporating an additional filtering step called sample-adaptive offset filtering.
- Environmental
- With a temperature range of –40° C to +60° C (–40° F to +140° F), the cameras are designed for extreme temperature environments. The cameras, subjected to rigorous dust and water immersion tests, are certified to the IP67 rating making them suitable for demanding outdoor applications.
The NVR features an operating temperature of -10° C to +55° C (+14° F to +131° F).
Dahua N488L64A E-VU IP Kit Turret Cameras Specifications
N81CJ02 8MP Fixed Eyeball Network Camera
- Camera:
- Image Sensor: 1/2.7-in. 8MP Progressive-scan CMOS
- Effective Pixels: 3840 (H) × 2160 (V)
- RAM/ROM: 256 MB / 16 MB
- Scanning System: Progressive
- Electronic Shutter Speed: Auto, Manual; 1/3 s to 1/100000 s
- Minimum Illumination:
- Color, 30 IRE: 0.04 lux at F2.0
- B/W, 30 IRE: 0.004 lux at F2.0
- 0 lux (Illuminator On)
- Minimum Illumination:
- S/N Ratio: > 56 dB
- IR Distance: Distance up to 30.0 m (98.43 ft)
- IR On/Off Control: Auto, Manual
- IR LEDs: One (1)
- Lens
- Lens Type: Fixed-focal
- Iris Type: Fixed
- Mount Type: M12
- Focal Length: 2.8 mm
- Maximum Aperture: F2.0
- Field of View:
- Horizontal: 105°
- Vertical: 56°
- Diagonal: 125°
- Close Focus Distance: 1.0 m (3.28 ft)
- DORI1 Distance:
- Detect: 74.7 m (245.08 ft)
- Observe: 29.9 m (98.10 ft)
- Recognize: 14.9 m (48.88 ft)
- Identify: 7.5 m (24.61 ft)
- Pan/Tilt/Rotation:
- Range:
- Pan: 0? to 360?
- Tilt: 0? to 78?
- Rotation: 0? to 360?
- Range:
- Video:
- Compression: Smart H.265+, H.265, Smart H.264+, H.264, H.264B, MJPEG
- Streaming Capability: Two (2) Streams
- Resolution: 3840 × 2160, 3072 × 2048, 3072 ×1728, 2592 × 1944, 2688 × 1520, 3MP (2048 × 1536); 2304 × 1296, 1080p (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240)
- Frame Rate:
- Main Stream: 2688 x 1520 at 1 to 30 fps
- Sub Stream: 704 × 480 at 1 to 15 fps
- Bit Rate Control: CBR/VBR
- Bit Rate:
- H.264: 32 kbps to 8192 Kbps
- H.265: 12 kbps to 8192 Kbps
- Day/Night: Auto (ICR), Color, B/W
- Backlight: BLC, HLC, DWDR
- White Balance: Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom
- Gain Control: Auto, Gain Priority, Shutter Priority, Manual
- Noise Reduction: 3D DNR
- Motion Detection: Off, On (4 Zones, Rectangle)
- Region of Interest: Off, On (4 Zones)
- Smart IR: Support
- Image Rotation: 0°, 90°, 180°, 270° (Supports 90°, 270° with 2688 x 1520 resolution or lower)
- Mirror: Off, On
- Privacy Masking: Off, On (4 Areas)
- Network:
- Ethernet: RJ-45 (10/100 Base-T)
- Protocol: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTIP, RTSP, SMTIP, FTIP, DHCP, DNS, DDNS, NTP, Multicast
- Interoperability: ONVIF (Profile S, T), CGI, P2P, SDK, API
- Max. User Access: 6 (Total Bandwidth: 48 MB)
- Edge Storage: FTP
- Web Viewer: IE, Chrome, Firefox
- Management Software: DMSS
- Mobile Operating System: iOS, Android
- Cybersecurity: Video Encryption Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, Generating and Importing X.509 Certification, HTTPS, Trusted Boot, Trusted Execution, Trusted Upgrade
- Audio:
- Compression: G.711A, G.711Mu, G.726, PCM
- Input: Built-in Microphone
- Certifications:
- Safety: EN 62368-1
- Electromagnetic Compatibility (EMC): FCC CFR 47 Part 15 Subpart B Electromagnetic Compatibility Directive 2014/30/EU
- Electrical:
- Power Supply: 12 VDC or PoE (802.3af)
- Power Consumption:
- Basic: 2.3 W (12 VDC), 3.1 W (PoE)
- Maximum (ICR + H.265 + Maximum Resolution + Main Stream + DWDR + IR Intensity): 4.6 W (12 VDC), 5.6 W (PoE)
- Environmental
- Operating Conditions: –40°C to +55°C (–40°F to +131°F), Less than or equal to 95% RH
- Storage Conditions: –40°C to +55°C (–40°F to +131°F),
- Ingress Protection: IP67
- Construction:
- Casing: Metal
- Dimensions: 85.6 mm x 94.0mm (3.4 in. x 3.7 in.)
- Net Weight: 0.32 kg (0.71 lb)
- Gross Weight: 0.43 kg (0.95 lb)
N42C2P4 Eight-channel 4K Network Video Recorder (4 TB)
- System:
- Main Processor: Industrial-grade Embedded Processor
- Operating System: Embedded Linux
- Audio and Video:
- IP Camera: Input Eight (8) Channels
- Audio:
- Input: One (1) Channel, RCA
- Output: One (1) Channel, RCA
- Analytics+ Recording2:
- Perimeter Protection:
- Channels: Eight (8)
- Search: By Channel, Time, and Event Type
- Smart Motion Detection+:
- Channels: Eight (8)
- Search: By Target Classification (Human or Vehicle)
- Perimeter Protection:
- Display:
- Interface:
- One (1) HDMI
- One (1) VGA
- Native Output Resolution: 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720
- Maximum Decoding:
- Two (2) Channel of 8MP at 30 fps
- Four (4) Channels of 4MP at 30 fps
- Eight (8) Channels of 2MP at 30 fps
- Multi-screen Display: 1/4/8/9
- On-screen Display: Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording
- Interface:
- Recording:
- Video Compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
- Audio Compression: PCM, G.711A, G.711Mu, G.726
- Supported IP Camera Resolution: 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1
- Maximum Recording Bandwidth: 160 Mbps
- Record Mode: Manual Recording; Alarm Recording; SMD Recording; Smart Recording
- Video Detection and Alarm
- Alarm Input: Four (4) Channels
- Relay Output: Two (2) Channels
- General Alarms: Motion Detection, Privacy Masking, Video Loss, Scene Changing, PIR Alarm, IPC External Alarm
- Anomaly Alarms: Camera Disconnection, Storage Error, Disk Full, IP Conflict, MAC Conflict, Login Locked, Cybersecurity Exception
- Analytics+ Alarms: Face Detection, Perimeter Protection (Intrusion and Tripwire), IVS, People Counting, Heat Map, SMD Alarms
- Alarm Actions: Recording, Snapshot, Audio, Buzzer, Log, Preset, Email
- Playback and Backup:
- Sync Playback: 1/4/8
- Search Mode: Time/Date, Alarm, MD and Exact Search (Accurate to One (1) Second), Smart Search
- Playback Function: Play, Pause, Stop, Rewind, Fast Play, Slow Play, Reverse, By Frame, Full Screen, Backup Selection (Video Clip or File), Partial Zoom, Audio On/Off
- Backup Mode: USB Device, Network
- Third-party Support:
- Third-party Support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and Others
- Network:
- Ethernet: One (1) RJ-45 Port (10/100/1000 Mbps), Self-adaptive
- PoE: Eight (8) Ports (IEEE802.3af/at)
- Network Function: HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP Camera; DVR; NVS); P2P; Auto-register
- Maximum User Access: 128
- Mobile Operating System: iOS, Android
- Browser: Chrome; IE 9 or later
- Interoperability: ONVIF Profiles (S, T, G); CGI; SDK
- Storage
- Internal HDD: Two (2) SATA III Ports, Up to 10 TB capacity per HDD
- HDD Mode: Single
- Auxiliary Interface
- USB: Two (2) USB 2.0 Ports
- Electrical
- Power Supply: 100 VAC to 240 VAC, 47 Hz to 63 Hz, 3.5 A
- NVR Power Consumption: < 10 W, without HDD
- Total PoE Budget: 25.5 W single port, 117 W total
- Environmental
- Operating Conditions: –10° C to +55° C (+14° F to +131° F), 10% to 93% RH
- Storage Conditions: 0° C to +40° C (32° F to 104° F), 30% to 85% RH
- Construction
- Dimensions (W x L x H): 375.0 mm x 327.90 mm x 53.0 mm (14.76 in. x 12.91 in. x 2.09 in.)
- Net Weight: 2.51 kg (5.53 lb), without HDD
- Gross Weight: 3.79 kg (8.36 lb), without HDD
- Certifications
- Safety
- EN62368-1
- UL 62368-1
- CAN/CSA C22.2 No.62368-1-14
- Electromagnetic Compatability (EMC):
- CFR 47 FCC Part 15 Subpart B
- EN55032, EN55024, EN55035, EN61000-3-2,
- EN61000-3-3, EN50130-4
- Safety
- Ordering Information
- Type: 4K IP E-Vu Security System
- Part Number: N488L64A
- Description:
- N81CJ02 8MP Fixed Eyeball Network Camera (x6)
- N42C2P4 8-channel 1U 8 PoE 4K, 4 TB HDD Network Video Recorder (x1)
- Accessories, optional:
- DH-PFA13A-E: Junction Box
- PFA130-E: Waterproof Junction Box
- PFB204W: Wall Mount Bracket
- PFA152-E: Pole Mount
- PFH101: Rack Mount Tray, compatible with 1U, Mini 1U, and Compact 1U Storage Devices 482.60 mm x 281.20 mm x 43.70 mm (19.0 in. x 11.07 in. x 1.72 in.)
- Package Contents
- Network Cameras
- Printed Manual
- Printed Regulatory Guide
- Plastic Wall Anchors with Screws (x3)
- Mounting Template
- Waterproof Ethernet Connector
- 4K NVR
- Quick Network Guide
- Printed Manual
- Printed Regulatory Guide
- Mouse
- Power Adapter with Power Cord
- Ethernet Cable, RJ-45
- Rubber Feet (x4)
- Network Cameras
