À propos du produit

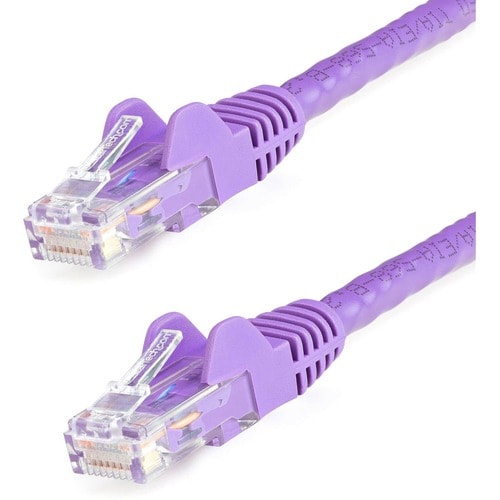

This 100-foot Cat6 cable meets or exceeds all Category 6 cable specifications to ensure reliable Gigabitnetwork connections. Plus, the cable features a durable purple PVC jacket that enables you to color code your network cable runs as needed.

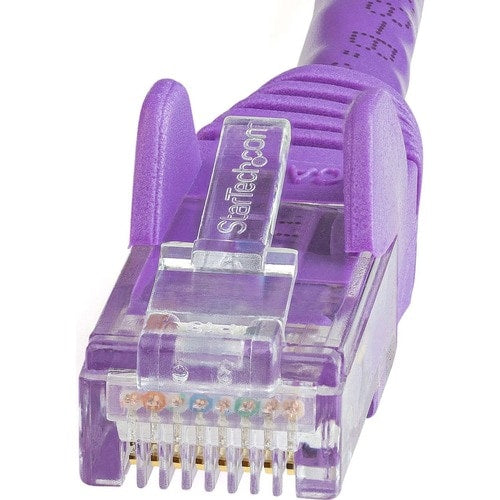

Snagless RJ45 clips help protect your network connections
For easier cable runs, the snagless connectors protect the cable's RJ45 clips during installation, making them less likely to snag or break. This ensures a sturdy connection by preventing the cable from becoming loose from the port.

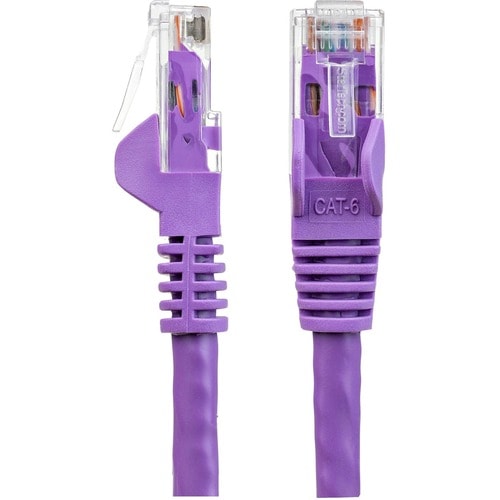

The cable features molded boots that offer connector strain relief, by stopping the RJ45 connector termination points from bending at sharp angles, and reducing the risk of damage to the cable, which could decrease network performance.
100% copper for outstanding value
Get the highest value for your cable investment with our Cat 6cables, each one manufactured using high-quality copper conductors.
24-gauge wire for high-performance network connection
Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet, using cables that include 24 AWG copper.
50-micron gold connectors provide peak conductivity
Rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.
The N6PATCH100PL is backed by StarTech.com's lifetime warranty for guaranteed reliability.
More from the Manufacturer
- Colored hoods for departmental color coding
- Molded strain relief prevents the cable from being bent at sharp angles at the RJ45 connector, to minimize the stress at the plug termination point
- HIGH PERFORMANCE CAT6 ETHERNET CABLE: 100% copper for error-free Multi Gigabit 1/2.5/5Gbps connections; 10Gbps up to 160'; Fluke patch cord tested to comply w/ANSI/TIA-568-2.D Category 6; ETL Verified
- POE SUPPORT: 24 AWG stranded copper conductors & UL Rated Wiring (E132276-A) supports up to 100W for PoE devices like VOIP phone & security systems; IEEE 802.3bt & DTE power compliance reduces cable heating
- QUALITY CONSTRUCTION: ETL & UL certified wire; 50-micron gold-plated connectors prevent rust/corrosion to avoid costly network downtime; High quality PVC jacket resists bending or fraying damage
- EASY INSTALLATION: 100 foot snagless patch cord for easy installation & flexible disconnection in wiring conduits; Compatible w/Cat5e & earlier standards; Molded boots available for constrained spaces
- SPECS: Length: 100ft (30.5m) | Color: Purple | 650 MHz Rated | Structure: 4 Pair UTP | RJ45 | Jacket: PVC | Wire Gauge: 24 AWG Copper | Wiring: ANSI/T568B | ETL Verified | Warranty: Lifetime
Spécifications techniques
| Miscellaneous | |
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 2.79 lb (1265.52 g) |
| Shipping Height | 12.99" (329.95 mm) |
| Shipping Width | 1.81" (45.97 mm) |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Product Color | Purple |
| Color Family | Purple |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | N6PATCH100PL |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Model | N6PATCH100PL |
| Product Name | 100 ft Purple Snagless Cat6 UTP Patch Cable |
| Brand Name | StarTech.com |
| Technical Information | |
| Cable Length | 100 ft (30.48 m) |
| Conductor | Copper |
| Data Transfer Rate | 10 Gbit/s |
| Device Supported | Workstation |
| Network Device | |
| Features | Bend Resistant |
| Corrosion Resistant | |
| Damage Resistant | |
| Fray Resistant | |
| Molded | |
| PoE | |
| Rust Resistant | |
| Strain Relief | |
| Stranded | |
| Stress Resistant | |
| Cable Characteristic | Patch Cable |
| Cable Type | Category 6 |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Plating | Gold |
| American Wire Gauge | 24 AWG |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Boot Type | Snagless |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
