À propos du produit

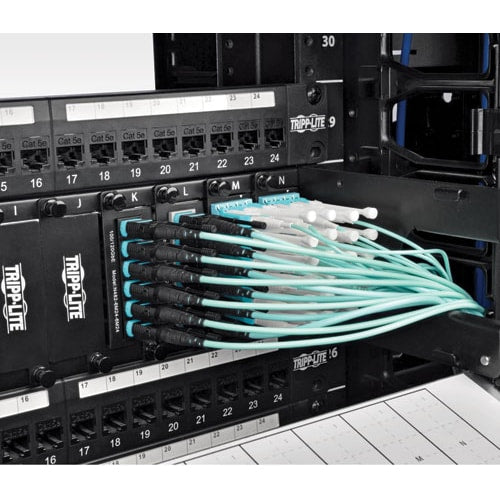

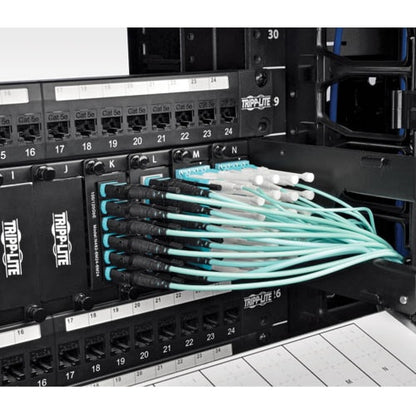

Tripp Lite MTP/MPO to MTP/MPO fiber patch cables allow high-density connections between network equipment in telecommunication rooms. They use a simple push-pull latching mechanism for easy and intuitive insertion and removal. The MTP/MPO connector is approximately the same size of a SC connector but since it can accommodate 12 fibers, it provides up to 12 times the density, thereby offering savings in circuit card and rack space. N844 series cables are manufactured using laser-optimized, 50/125, OM3 multimode cable, and support speeds up to 40GbE.

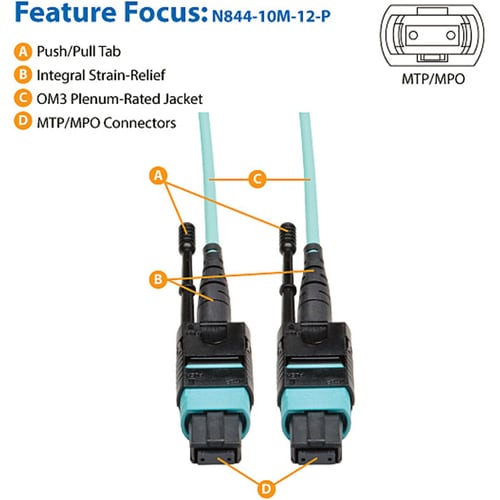

- Hi-density MTP/MPO 12-fiber connectors for reduced cabling
- Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand
- OM3 rated 50/125 Multimode
- Supports to 40GbE speeds
Spécifications techniques
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 3.20 oz (90.72 g) |
| Shipping Height | 7" (177.80 mm) |
| Shipping Width | 9" (228.60 mm) |
| Product Color | Aqua |
| Color Family | Green |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | N84410M12P |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | N844-10M-12-P |
| Product Name | 10 Meter MTP / MPO Patch Cable, 12 Fiber, 40GbE Aqua OM3 Plenum |
| Product Series | N844 |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Cable Length | 32.8 ft (10 m) |
| Device Supported | Network Device |
| Jacket Type | Plenum |
| Cable Characteristic | Patch Cable |
| Cable Type | Fiber Optic |
| Connector Type on First End | MTP Network - Female |
| Connector Type on Second End | MTP Network - Female |
| Fiber Optic Mode | Multi-mode |
| Connector on First End Details | 1 x MTP Network - Female |
| Connector on Second End Details | 1 x MTP Network - Female |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
