À propos du produit

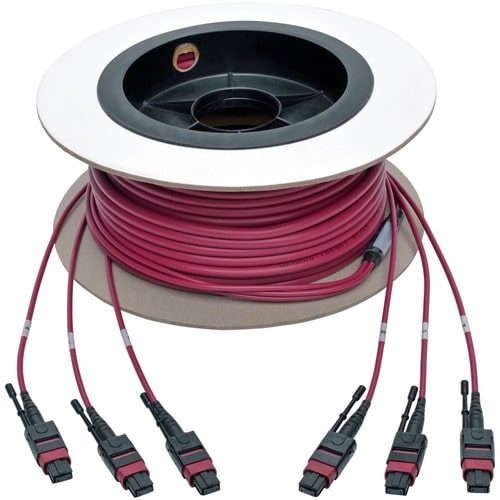

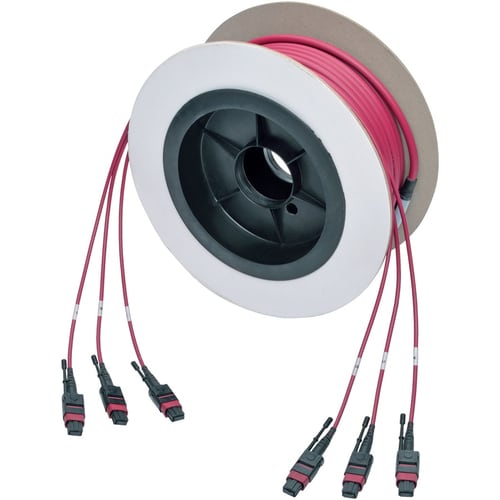

The 15-meter (49-foot) N858-15M-3X8-MG MTP/MPO Multimode Base-8 Trunk Cable supports 40/100 Gb Ethernet speeds and is designed for high-density connections between network equipment in telecommunication rooms and data centers.

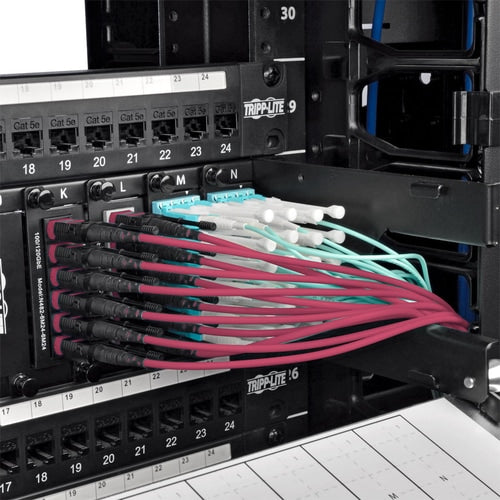

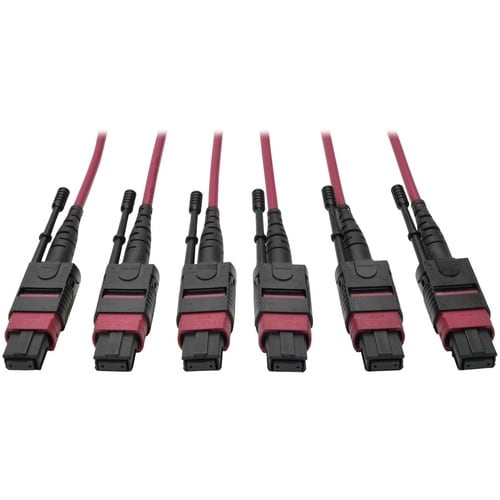

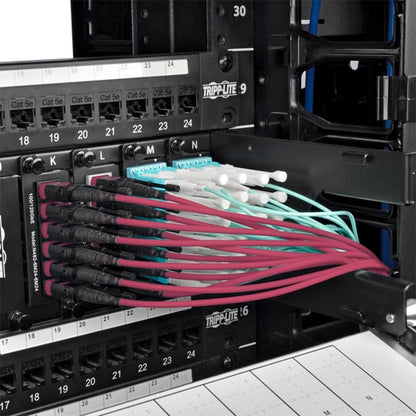

With three female MTP/MPO connectors on each end, this OM4-rated multimode fiber optic cable is recommended for high-density fiber patching between data center MDFs (main distribution frames) and IDFs (intermediate distribution frames). It's colored magenta for instant identification as an OM4 cable. Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand.
The 8-fiber MTP/MPO connectors are about the same size as SC connectors, but are 12 times denser, freeing up rack space for other cables. Optimized for QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 networks, this cable is tested for low insertion loss and back reflection on every connector and attenuation loss that meets or exceeds current standards. The 5.6-millimeter ruggedized plenum-rated jacket and bend-insensitive fiber are perfect for connecting high-speed network components in ceilings, walls and ducts.
Features
OM4-Rated for 40/100 Gb Ethernet Applications
- Designed to extend high-density connections between network equipment in telecom rooms and data centers
- Recommended for patching between data center MDFs and IDFs
- Optimized for QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 networks
- Magenta-colored for identification as an OM4 cable
MTP/MPO Connectors with Push/Pull Tabs

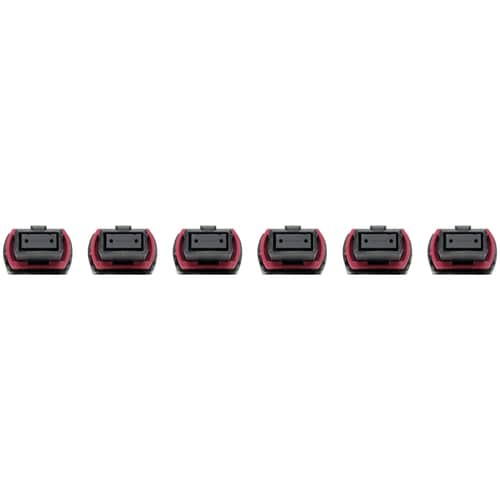

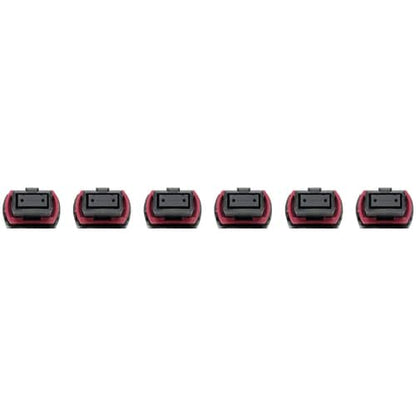

- 8-fiber female connectors 12 times denser than SC connectors

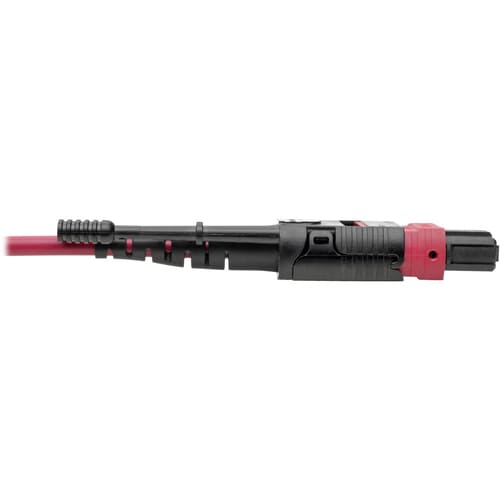

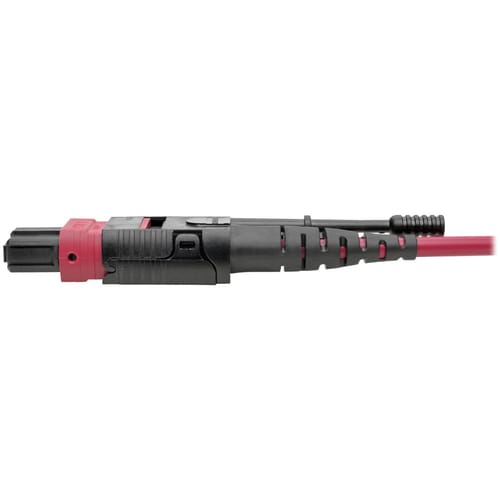

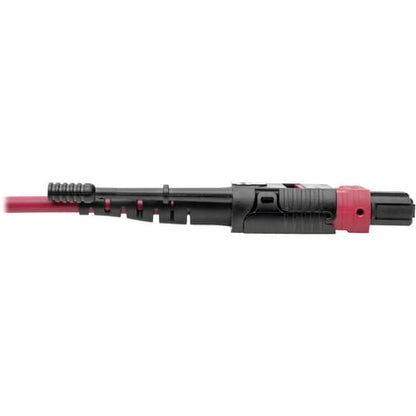

- Push/pull tab connectors easy to install and remove with one hand
- 100% tested for low insertion loss and back reflection
Error-Free Signal Transfer
- 50/125 duplex glass fiber construction
- Plenum-rated jacket and bend-insensitive fiber perfect for ceilings, walls and ducts
- Features Fiber Optic cable type
- Fully compatible with network devices
- This Network Cable provides splendid performance and clear connectivity
Spécifications techniques
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 1.83 lb (830.07 g) |
| Shipping Height | 3.74" (95 mm) |
| Shipping Width | 8.27" (210.06 mm) |
| Product Color | Magenta |
| Color Family | Pink |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | N85815M3X8MG |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | N858-15M-3X8-MG |
| Product Name | N858-15M-3X8-MG MTP/MPO Multimode Base-8 Trunk Cable, Magenta, 15 m |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Cable Length | 49.2 ft (15 m) |
| Data Transfer Rate | 100 Gbit/s |
| Device Supported | Network Device |
| Cable Type | Fiber Optic |
| Connector Type on First End | MTP/MPO Network - Female |
| Connector Type on Second End | MTP/MPO Network - Female |
| Fiber Optic Mode | Multi-mode |
| Connector on First End Details | 3 x MTP/MPO Network - Female |
| Connector on Second End Details | 3 x MTP/MPO Network - Female |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
