À propos du produit
1.05kVA/540W/120V Battery Backup for PCs, Home Theaters or Digital Signage
This OmniSmart® line-interactive UPS system with AVR protection provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The 120V battery backup is ideal protection for your home office, media center or commerce components, including computers, routers, printers, HDTVs, Blu-ray players, game consoles, ATMs, security systems and digital signage equipment.
Allows Time to Backup Critical Files During a Blackout
Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but internal battery should keep a half load (270W) powered as long as nine minutes and a full load (540W) up to 3.6 minutes. During normal operation, incoming utility power keeps the replaceable internal battery fully charged, so backup power will always be available.

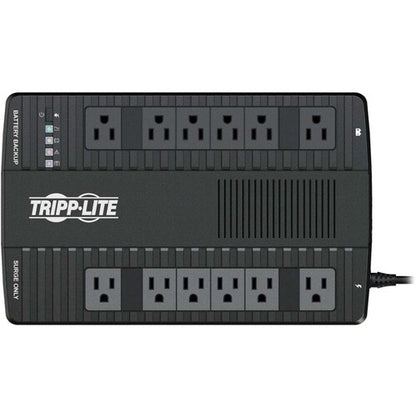

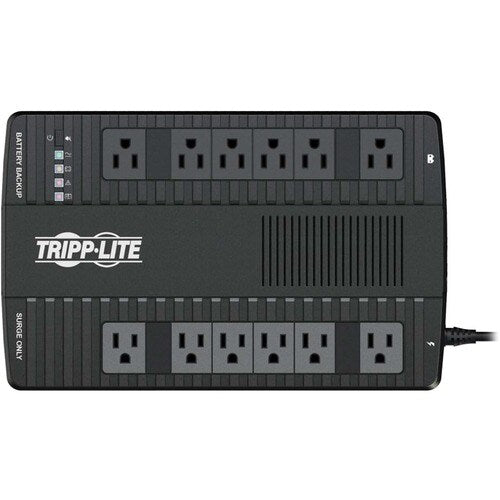

12 NEMA 5-15R Outlets Protect Your Connected Components

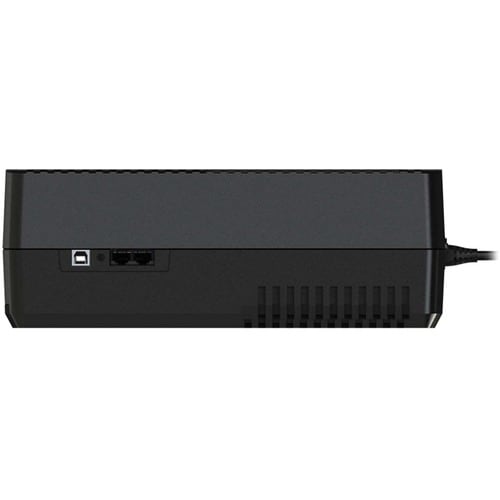

Six 5-15R outlets provide battery backup, surge protection and voltage regulation for your computer, monitor and other crucial components. The other six 5-15R outlets provide surge suppression only for printers, speakers and other desktop equipment regarded as non-essential during a blackout. In addition, RJ45 jacks protect a telephone/DSL dial-up or 10BaseT Ethernet connection.
Double-Boost AVR Corrects Low/High-Voltage Conditions for Enhanced Performance
A double-boost, single-cut AVR (Automatic Voltage Regulation) circuit, designed specifically for the LATAM region, protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. Slight under-voltages as low as 93V are boosted by 13%. More severe brownouts as low as 78V are increased by 35%. A voltage cut of 16% reduces UPS output during overvoltage conditions as high as 152V, all while keeping the battery fully charged and ready to take over in case of power failure.
600 Joules Fight Back Against Unexpected Power Surges
A 600-joule surge suppression rating protects connected components from the harmful effects of power surges.
Designed for High Efficiency to Help You Save Money and Protect the Environment
A >98.3% efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.
- 1.05 kVA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 540 W load capacity
- 1.05 kVA load capacity provides sufficient backup during power failures
- Keep your sensitive devices powered with a backup of up to 3.60 minute at full load
- Up to 3.60 minute runtime on full load to preserve critical data from power shortage interruptions
Spécifications techniques
| Controls/Indicators | |
| Status Indicators | LED Indicators:
|
| Interfaces/Ports | |
| USB (HID Compliant) Port | Yes |
| Environmental Conditions | |
| Thermal Dissipation | 36.86 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Management | |
| Alarm | Low Battery |
| Overload | |
| Fault | |
| Replace Battery | |
| Battery Information | |
| Backup/Run Time (Half Load) | 9 Minute |
| Backup/Run Time (Full Load) | 3.60 Minute |
| Replaceable Battery | Yes |
| DC System Voltage | 12 V DC |
| Typical Battery Recharge Time | 5 Hour |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 14.55 lb (6600 g) |
| Form Factor | Ultra-compact Desktop/Tower/Wall Mount |
| Height | 4.13" (105 mm) |
| Width | 7.48" (190 mm) |
| Depth | 12.01" (305 mm) |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | OMNISMART1050MX |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | OMNISMART1050MX |
| Product Name | OmniSmart OMNISMART1050MX 1050VA Ultra-compact Desktop/Tower/Wall Mount UPS |
| Product Line | OmniSmart |
| Brand Name | Tripp Lite by Eaton |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 600 J |
| Waveform Type | Pure Sine Wave |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 1.05 kVA |
| Load Capacity (Watt) | 540 W |
| Technical Information | |
| Application/Usage | Telephone |
| ATM | |
| Blu-ray Player | |
| Computer | |
| Digital Signage | |
| DVR | |
| Gaming Console | |
| HDTV | |
| High-end System Component | |
| Home | |
| Media Center | |
| Network Equipment | |
| Office | |
| Printer | |
| Router | |
| Security System | |
| Dataline Protection | RJ-11/RJ-45 |
| RS-232 | |
| Plug/Connector Type | NEMA 5-15P |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15R |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |
| Energy Saving | Greater than 95% efficiency - GREEN UPS |
| Number of Battery & Surge Outlets | 6 |
| Number of Surge-only Outlets | 6 |
| Transfer Time | 6 ms |
| Receptacle Detail | 12 x NEMA 5-15R |
