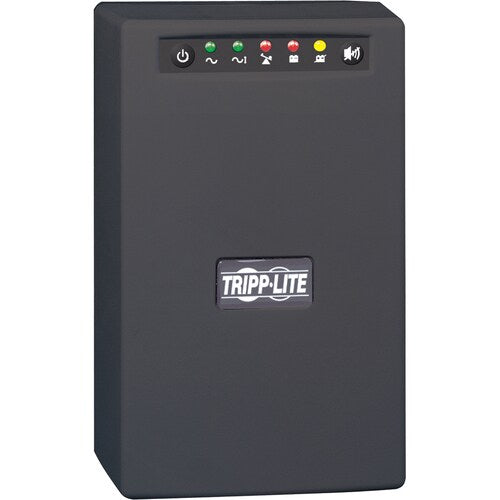

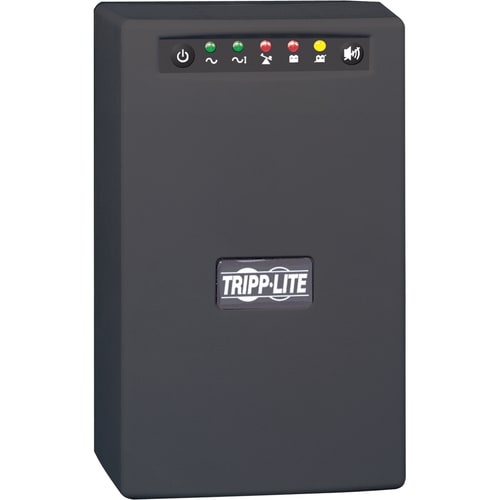

Tripp Lite's OMNIVSINT1500XL line interactive UPS system offers voltage regulation, surge suppression and expandable battery support for sensitive electronics. Internal UPS circuits support entry level PC systems for up to 75 minutes during power failures. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 151 and overvoltages up to 282 volts back to usable 230V levels without using battery power. Includes 8 IEC320-C13 outlets with battery support and AC surge suppression. USB port enables unattended system shutdown. PowerAlert software available via free download from www.tripplite.com. Built-in single line RJ jacks. Built-in audible alarm and 4 front panel LEDs indicate line power status, battery power status, battery low/replace status and voltage boost operation. 1500VA power handling ability. Offers 4.5 minutes battery runtime with a full load of 1500VA and 13 minutes with a half load of 750VA. Supports hot-swappable battery replacement via access panel.
- 1500VA / 1.5kVA tower 230V line interactive extended-run UPS
- Corrects brownouts and overvoltages from 151 to 282V
- USB port, TEL/DSL/ethernet protection, External battery pack options

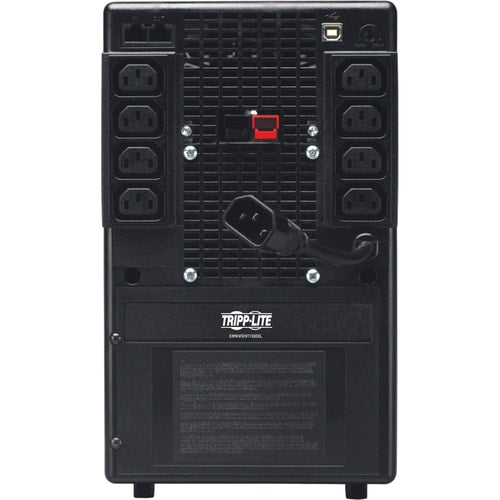

- C14 input and 8 C13 outlets
Spécifications techniques
| Controls/Indicators | |
| Status Indicators | 4 Front Panel LEDs:
|
| Environmental Conditions | |
| Maximum Operating Temperature | 122°F (50°C) |
| Interfaces/Ports | |
| USB | Yes |
| Management | |
| Alarm | Power Failure |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Battery Information | |
| Battery Life | 6 Year |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 14 Minute |
| Backup/Run Time (Full Load) | 5 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Power Description | |
| Input Voltage | 220 V AC |
| Output Voltage | 230 V AC |
| Surge Energy Rating | 1920 J |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 940 W |
| Technical Information | |
| Dataline Protection | RJ-11 |
| RJ-45 | |
| Plug/Connector Type | IEC 320-C14 |
| Cord Length | 5.9 ft (1.80 m) |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 8 x IEC 60320 C13 |
| Physical Characteristics | |
| Weight (Approximate) | 33 lb (14968.55 g) |
| Form Factor | Tower |
| Height | 11.75" (298.45 mm) |
| Width | 7.25" (184.15 mm) |
| Depth | 7.50" (190.50 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | OMNIVSINT1500XL |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Name | Omni VS 1500VA Tower UPS |
| Product Line | Omni |
| Product Series | VS |
| Brand Name | Tripp Lite by Eaton |
