À propos du produit

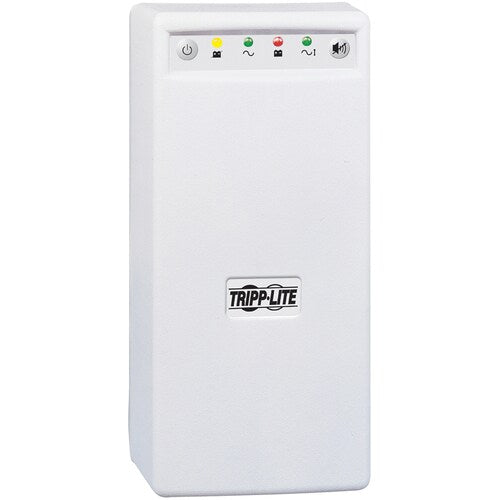

Tripp Lite's OMNIX350HG offers medical-grade UPS protection with built-in line interactive voltage regulation, intelligent monitoring and unattended shutdown capability. IEC320 plug & outlets, plus built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise. Tested to CE/IEC 60601-1 as medical electrical equipment. 350VA power handling capacity supports computers, inter-networking equipment and other critical loads during commercial power failures. Line interactive voltage regulation corrects brownouts as low as 159V back to normal 230V levels, saving battery reserves for use only during complete power failures. Includes, 2 line phone surge suppression and built-in USB communications port that works with PowerAlert Software and cabling to provide automatic unattended shutdown of connected network and PC applications.
- 350VA line interactive tower UPS
- Professional features include USB port, IEC320 plug & outlets, built-in isolation transformer

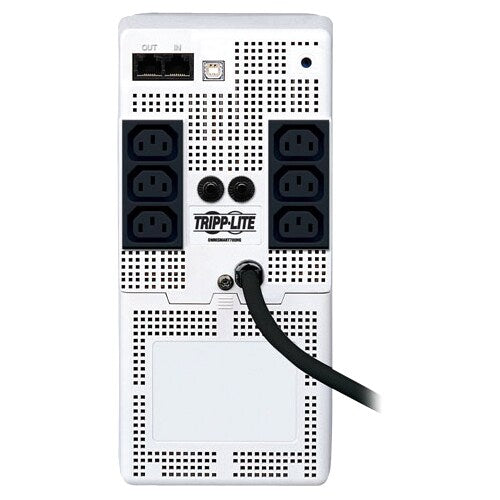

- Input: IEC320 C14 inlet (230V) / Output: 6 IEC320 C13 (230V)
- 2 line phone suppression for TEL/DSL line protection
Spécifications techniques
| Interfaces/Ports | |
| USB | Yes |
| Technical Information | |
| Transfer Time | 5 ms |
| Receptacle Detail | 6 |
| Battery Information | |
| Battery Life | 6 Year |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 37 Minute |
| Backup/Run Time (Full Load) | 15.50 Minute |
| Typical Battery Recharge Time | 7.20 Hour |
| Physical Characteristics | |
| Weight (Approximate) | 25.40 lb (11521.25 g) |
| Form Factor | Tower |
| Height | 10.60" (269.24 mm) |
| Width | 5.20" (132.08 mm) |
| Depth | 7.40" (187.96 mm) |
| Power Description | |
| Input Voltage | 220 V AC |
| Output Voltage | 230 V AC |
| Input Current | 1.80 A |
| Load Capacity (VA) | 350 VA |
| Load Capacity (Watt) | 225 W |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Certifications & Standards | Tested to CE/ IEC 60601-1 (Series AGOM6832), Class B (emissions) |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | OMNIX350HG |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | OMNIX350HG |
| Product Name | OmniSmart OMNIX350HG 350VA Tower UPS |
| Product Line | OmniSmart |
| Brand Name | Tripp Lite by Eaton |
