What's New
- High-speed 144b DDR4 8 GB cache with integrated cache protection to accelerate RAID and cache performance in the SR932i-p.
- IImpressive RAID 5 Write Performance: Up to 12 GB/s throughput and up to 850K IOPs with the SR932i-p.
- Integrated Switchtec™ PCIe switch enabling increased performance and reduced latency access to NVMe storage devices for HBA and RAID modes.
- Supports Hardware Root of Trust.
Key Features | Industry's Highest Performance RAID Controller
The Microchip SmartRAID Controllers for HPE Gen10 Plus features up to 46 GB/s bi-directional throughput and up to 3.5M IOPs.
Impressive RAID 5 Transactional Performance
Up to 12 GB/s throughput and up to 850K IOPs via high-speed 144b DDR4 8 GB cache with integrated cache protection.
Increase RAID Controller Density
The Microchip SmartRAID Controllers for HPE Gen10 Plus is a type-a Flexible/Modular Controller and does not occupy a PCIe Expansion Slot.
Supports up to 32 direct-connected NVMe/SAS/SATA storage devices.
Fully-utilized online capacity expansion and RAID level migration, a dynamic caching algorithm, and hot-plug drive support.
Integrated Switchtec PCIe Switch
The Microchip SmartRAID Controllers for HPE Gen10 Plus feature increased performance and reduced latency access to NVMe storage devices for HBA and RAID modes.
With the HPE Silicon Root of Trust integration, this product is designed with enhanced security and a controller-based encryption feature.
Utilize secure boot support for the uEFI host BIOS and Smart Storage Administrator GUI and CLI utilities for configuration, management and diagnosis of SmartRAID controllers.
Controller-based Encryption feature.
Spécifications techniques
| Memory | |
| Cache Memory | 4 GB |
| Miscellaneous | |
| Platform Supported | PC |
| Interfaces/Ports | |
| Total Number of SAS Ports | 16 |
| Number of SAS Ports (Internal) | 16 |
| SAS Connector Details | 16 (SlimSAS SFF-9402 connectors supporting U.2 and U.3) |
| Physical Characteristics | |
| Weight (Approximate) | 120 g |
| Form Factor | Plug-in Module |
| Length | 4.40" (111.76 mm) |
| Height | 3.90" (99.06 mm) |
| General Information | |
| Product Type | SAS Controller |
| Manufacturer Part Number | P12688-B21 |
| Manufacturer Website Address | http://www.hpe.com |
| Manufacturer | Hewlett Packard Enterprise |
| Product Model | SR416i-a |

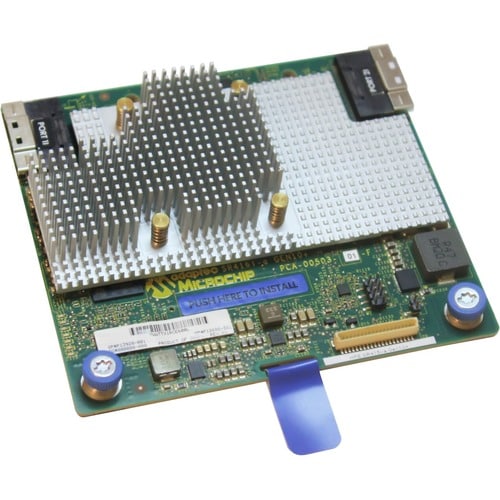

| Product Name | Microchip SmartRAID SR416i-a SAS Controller |
| Product Line | SmartRAID |
| Brand Name | HPE |
| Technical Information | |
| Host Interface | PCI Express |
| Device Supported | Server |
| RAID Levels | 60 |
| 6 | |
| 50 | |
| 5 | |
| 10 ADM | |
| 1 | |
| 1 ADM | |
| 10 | |
| 0 | |
| Controller Type | 24Gb/s SAS |
| RAID Supported | Yes |
