À propos du produit
Panduit Basic Rack PDUs provide reliable and cost effective power distribution in a variety of inputs (Single or Three Phase; Delta or WYE) and outlet configurations (IEC C13, C19, or NEMA compliant).
These Rack PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 48 outlets and come standard with a 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware.
These Rack PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 48 outlets and come standard with a 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware.
- PDU distributes AC power to multiple servers and balances the load on the servers
- PDU provides power control as remote controlled relay & load monitoring
- Basic PDU deliver power to wiring closets, server rooms & equipment racks in a cost-effective way
- With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
Spécifications techniques
| Management | |
| Remote Outlet Switching | No |
| Miscellaneous | |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 16 A |
| Output Voltage Range | 120 V AC - 240 V AC |
| Power Rating (VA) | 1.40 kVA |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-20R |
| PDU Type | Basic |
| Receptacle Detail | 12 x NEMA 5-20R |
| Physical Characteristics | |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.60" (40.64 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 2" (50.80 mm) |
| Mounting Orientation | Horizontal |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | P12B01M |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 |
| Manufacturer | PANDUIT CORP |
| Product Model | P12B01M |

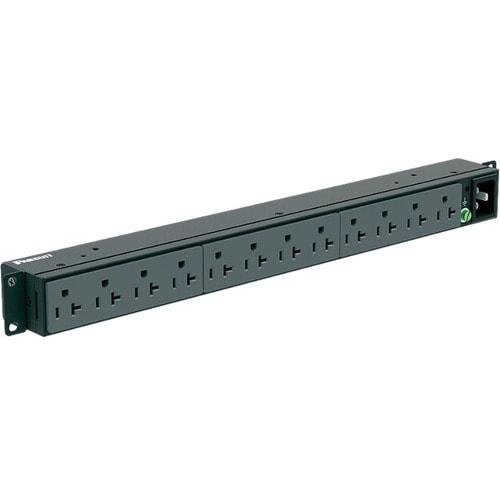

| Product Name | P12B01M Horizontal Basic Power Distribution Unit |
| Product Line | SmartZone |
| Brand Name | Panduit |
