À propos du produit

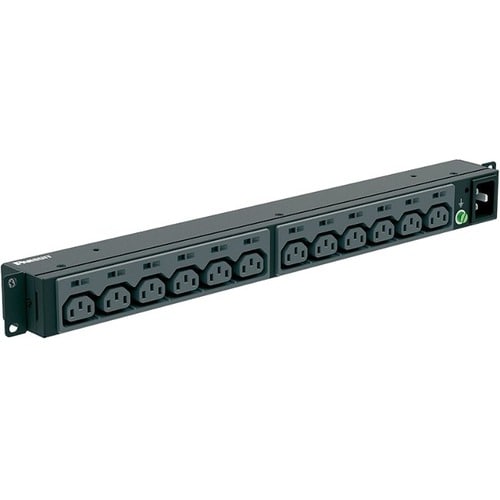

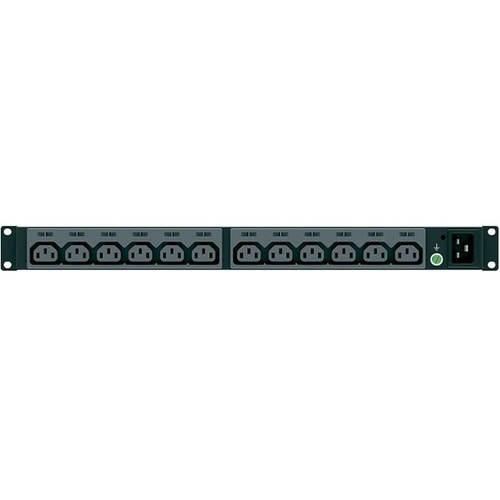

The 20A, 208V horizontal single phase PDU has (12) C13 receptacles, a 10' (3m) power cord with a NEMA L6-20P plug, and measures 1.6"H x 17.5"W x 2.0"D (40.6mm x 444.5mm x 50.8). UL Listed. Color: Black
- PDU distributes AC power to multiple servers and balances the load on the servers
- With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
Spécifications techniques
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Input Current | 20 A |
| Power Rating (VA) | 3.30 kVA |
| Technical Information | |
| Plug/Connector Type | NEMA L6-20P |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13 |
| PDU Type | Basic |
| Receptacle Detail | 12 x IEC 60320 C13 |
| Physical Characteristics | |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.60" (40.64 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 2" (50.80 mm) |
| Mounting Orientation | Horizontal |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | P12B46M |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 |
| Manufacturer | PANDUIT CORP |
| Product Model | P12B46M |
| Product Name | P12B46M Horizontal Power Distribution Unit |
| Brand Name | Panduit |
