À propos du produit
- A device fitted with multiple outputs for the distribution of electric power
- PDU provides power control as remote controlled relay & load monitoring
- With monitored PDU, you can remotely monitor single-or three-phase voltage easily
- Before critical input source become overloaded always be warned with monitored PDUs
Spécifications techniques
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management | SNMP |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Environmental Conditions | |
| Minimum Operating Temperature | 50°F (10°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | 24.8°F (-4°C) |
| Maximum Storage Temperature | 284°F (140°C) |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 20 A |
| Input Frequency | 60 Hz |
| Power Rating (Watt) | 1.90 kW |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | P12E22G |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 |
| Manufacturer | PANDUIT CORP |

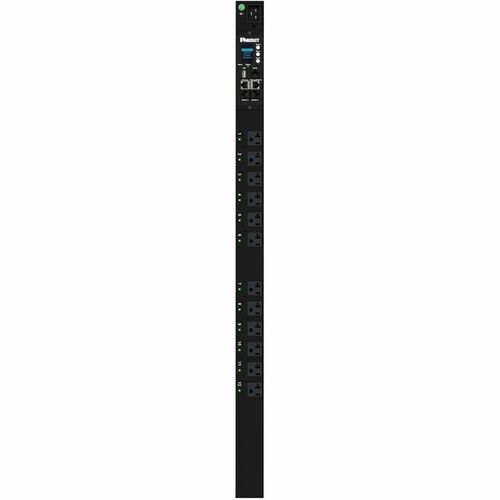

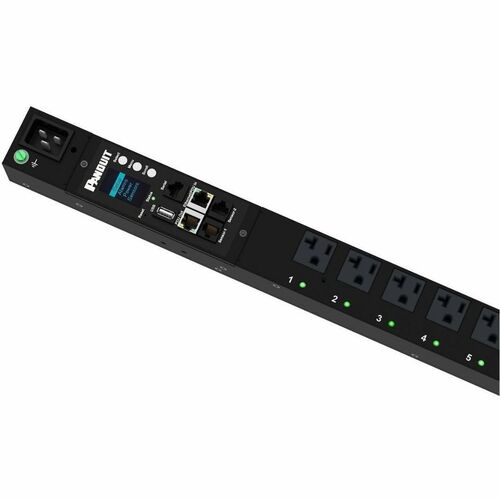

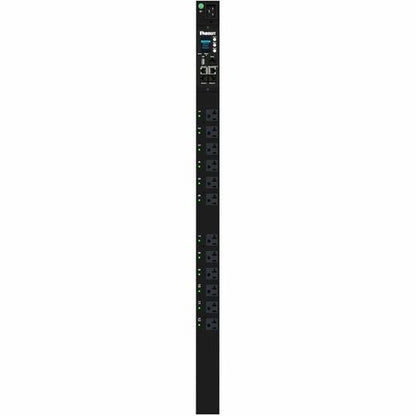

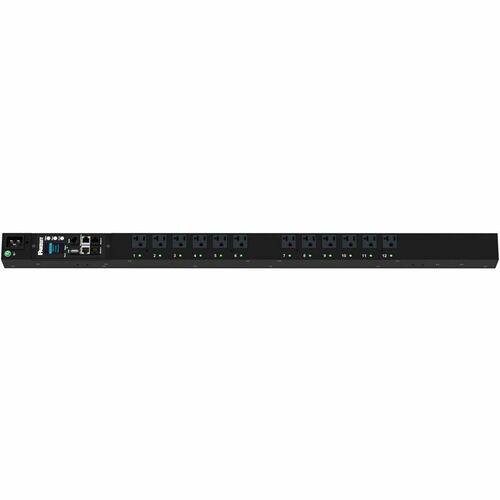

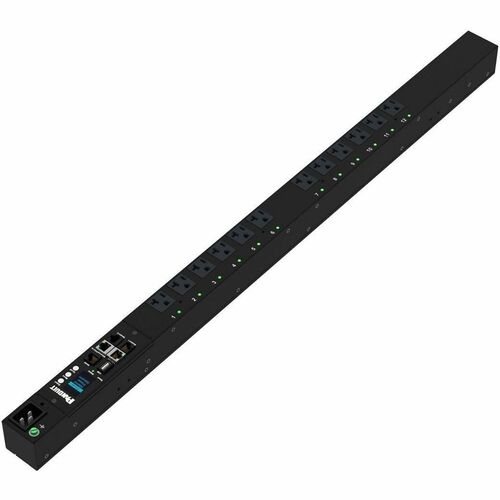

| Product Name | G6 12-Outlets PDU |
| Product Series | G6 |
| Brand Name | Panduit |
| Technical Information | |
| Features | Onboard Display |
| Plug/Connector Type | NEMA L5-20P |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-20R |
| Load Capacity (Watt) | 1.90 kW |
| PDU Type | Monitored |
| Switched | |
| Receptacle Detail | 12 x NEMA 5-20R |
| Physical Characteristics | |
| Mount Type | Rack-mountable |
| Rack Height | 21U |
| Cord Length | 10 ft (3.05 m) |
| Height | 36" (914.40 mm) |
| Width | 2" (50.80 mm) |
| Depth | 2.10" (53.34 mm) |
| Mounting Orientation | Vertical |
| Product Color | Black |
| Color Family | Black |
