À propos du produit
Playing Video from Your DisplayPort Computer to HDMI Monitor Is Easy and Inexpensive

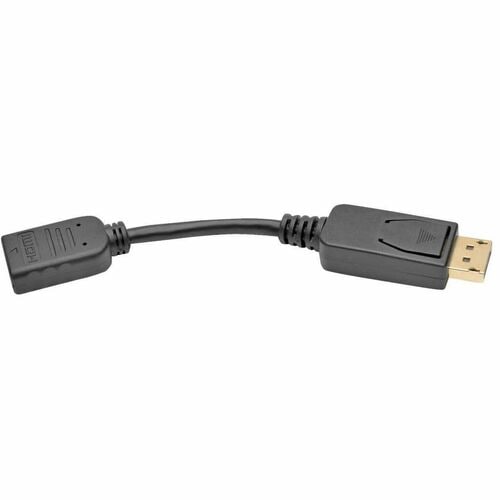

This set includes 50 Tripp Lite P136-000 DisplayPort-to-HDMI passive adapters (M/F). Each adapter allows you to play stereo audio and high-definition video from your DisplayPort computer or laptop to an HDMI television, monitor or projector. This allows you to continue using your existing HDMI display without the time, effort or expense of replacing it with a new DP monitor. These adapters are an easy, inexpensive way to play 1080p video in classrooms, conference rooms, trade shows and other on-the-road presentations.
Ready to Use Right Out of the Package

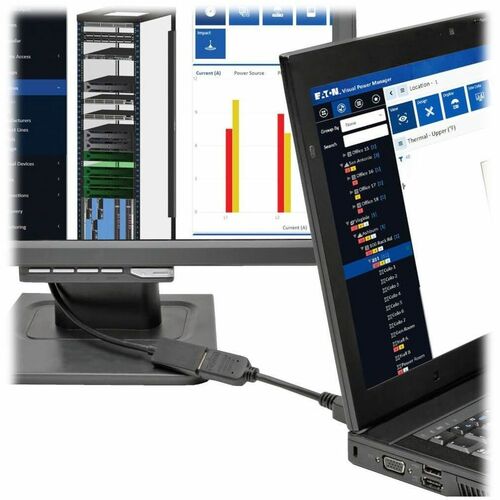

Ideal for displaying video on a large monitor or digital sign, each six-inch adapter is perfectly sized for carrying in your pocket, briefcase, purse or laptop bag for convenient use anywhere. Just connect the male DP end to your computer's DisplayPort and the female HDMI end to an HDMI cable to begin sharing HD audio/video signals. The plug-and-play adapter requires no software, drivers or external power.
Enjoy Outstanding 1080p Picture Quality on Any HDMI Display
Each P136-000 adapter supports video resolutions up to 1920 x 1200, HD resolutions up to 1080p and 7.1-channel surround sound audio.
Passive Adapters Require DisplayPort++ for HDMI Pass Through
Because they are passive adapters, these units require that the connected source device have a DisplayPort++ (DP++) dual-mode port, which allows HDMI signals to pass through. Check your DisplayPort source's documentation for compatibility.
- Features Passive
- Enjoy the feast of movies with both video and sound device supported
- With DisplayPort and HDMI ports, transfer high-quality pictures and 3D sound effects simultaneously at a high-speed
- Fully compatible with audio/video devices
Spécifications techniques
| Miscellaneous | |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 2.45 lb (1111.30 g) |
| Weight (Approximate) | 3.52 oz (99.79 g) |
| Shipping Height | 17.72" (450.09 mm) |
| Shipping Width | 15.75" (400.05 mm) |
| Product Color | Black |
| Color Family | Black |
| Product Material | ABS |
| General Information | |
| Product Type | A/V Cable |
| Manufacturer Part Number | P136-000-BP |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Packaged Quantity | 50 |
| Manufacturer | Eaton Corporation |
| Product Model | P136-000-BP |
| Product Name | P136-000-BP DisplayPort/HDMI Audio/Video Cable |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Cable Length | 6" (152.40 mm) |
| Device Supported | Computer |
| Notebook | |
| Audio/Video Device | |
| HDTV | |
| Projector | |
| Monitor | |
| Features | Passive |
| Cable Type | DisplayPort/HDMI |

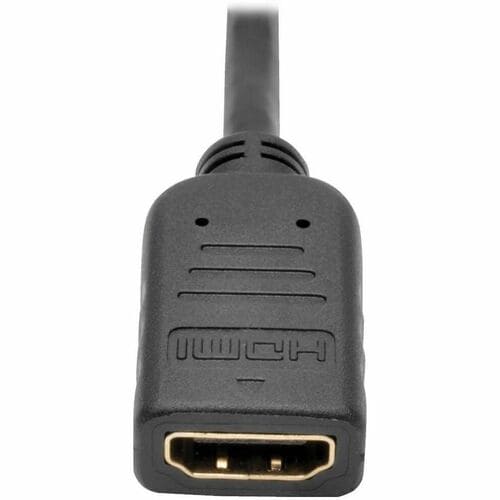

| Connector Type on First End | HDMI Digital Audio/Video - Female |

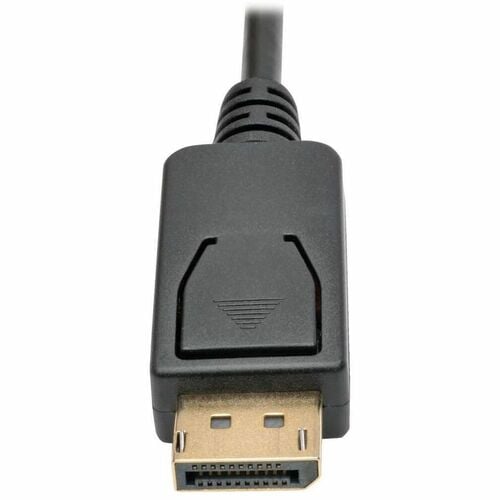

| Connector Type on Second End | DisplayPort 1.1 Digital Audio/Video - Male |
| Connector Plating | Gold |
| American Wire Gauge | 30 AWG |
| Supported Resolution | 1920 x 1200 |
| Contact Plating | Gold |
| Connector on First End Details | 1 x HDMI Digital Audio/Video - Female |
| Connector on Second End Details | 1 x DisplayPort 1.1 Digital Audio/Video - Male |
