À propos du produit

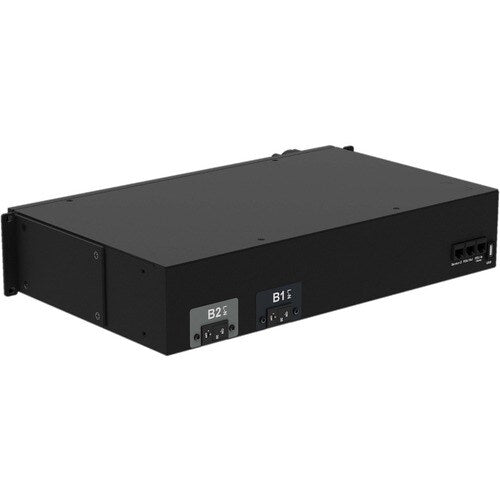

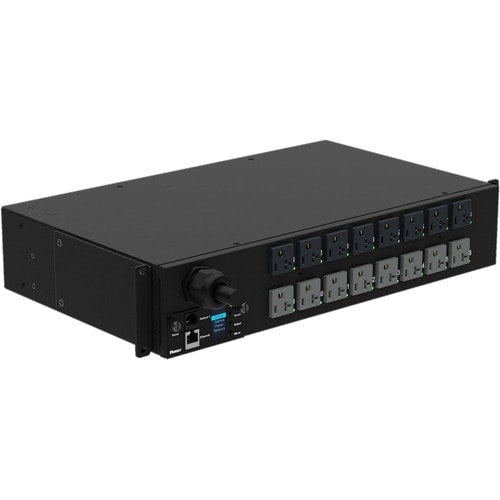

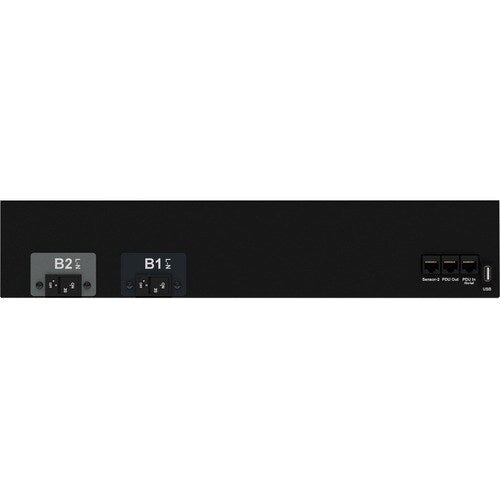

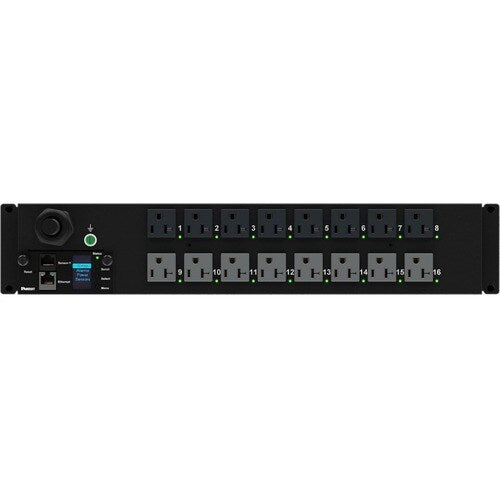

The Panduit® SmartZone™ G5 iPDU is more than a power distribution unit and energy meter. These iPDUs monitor the data center power and environment (at the rack or cabinet level), by continuously scanning for electrical circuit overloads, and physical environmental conditions that place critical IT equipment at risk. Panduit's iPDUs provide comprehensive, accurate, energy measurement data to efficiently use power resources, make informed capacity planning decisions, improve uptime, measure PUE (power usage effectiveness), and drive green data center initiatives to save energy and money.
Making the right choice in IT equipment is essential for a safe, efficient data center operation. Our full range of iPDUs, environmental sensors, and dual locking power cords are the key to fulfilling mission-critical data center needs.
Making the right choice in IT equipment is essential for a safe, efficient data center operation. Our full range of iPDUs, environmental sensors, and dual locking power cords are the key to fulfilling mission-critical data center needs.
- A device fitted with multiple outputs for the distribution of electric power
- Remotely monitor single-or-three phase voltage, frequency even load levels with monitored PDUs
Spécifications techniques
| Management | |
| Remote Outlet Switching | Yes |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 30 A |
| Output Voltage Range | 120 V AC - 240 V AC |
| Power Rating (VA) | 2.90 kVA |
| Physical Characteristics | |
| Mount Type | Rack-mountable |
| Rack Height | 2U |
| Height | 3.43" (87.12 mm) |
| Width | 17.46" (443.48 mm) |
| Depth | 10.60" (269.24 mm) |
| Mounting Orientation | Horizontal |
| Technical Information | |
| Protection Type | Double Pole |
| Overload Protection | |
| Plug/Connector Type | NEMA L5-30P |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-20R |
| PDU Type | Monitored |
| Receptacle Detail | 16 x NEMA 5-20R |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | P16E17M |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 |
| Manufacturer | PANDUIT CORP |
| Product Model | P16E17M |
| Product Name | P16E17M Horizontal Intelligent Power Distribution Unit |
| Product Line | SmartZone |
| Product Series | MS |
| Brand Name | Panduit |
