À propos du produit

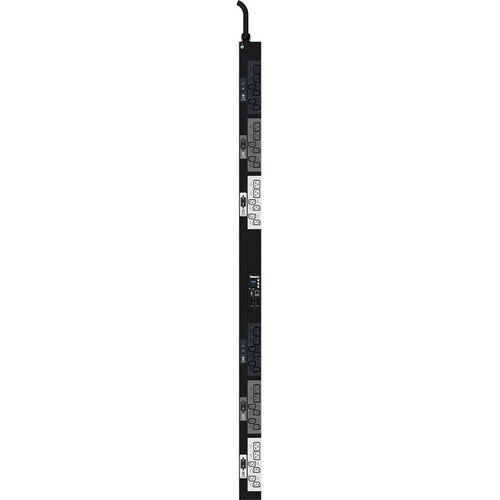

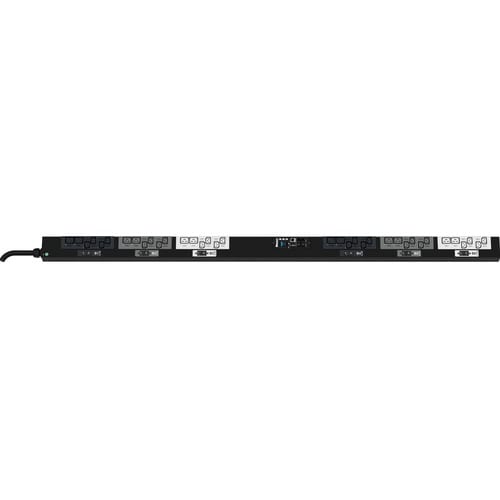

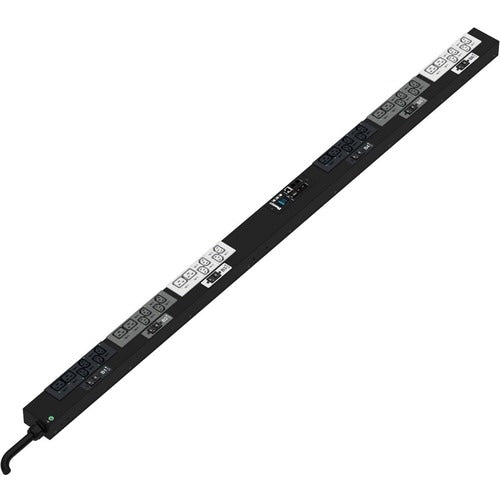

The Panduit® SmartZone™ G5 iPDU is more than a power distribution unit and energy meter. These iPDUs monitor the data center power and environment (at the rack or cabinet level), by continuously scanning for electrical circuit overloads, and physical environmental conditions that place critical IT equipment at risk. Panduit's iPDUs provide comprehensive, accurate, energy measurement data to efficiently use power resources, make informed capacity planning decisions, improve uptime, measure PUE (power usage effectiveness), and drive green data center initiatives to save energy and money.
Making the right choice in IT equipment is essential for a safe, efficient data center operation. Our full range of iPDUs, environmental sensors, and dual locking power cords are the key to fulfilling mission-critical data center needs.
- PDU distributes AC power to multiple servers and balances the load on the servers
- Remotely monitor single-or-three phase voltage, frequency even load levels with monitored PDUs
Spécifications techniques
| Management | |
| Management |
|
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Power Description | |
| Input Voltage | 415 V AC |
| Output Voltage | 240 V AC |
| Input Current | 30 A |
| Power Rating (VA) | 17.30 kVA |
| Power Rating (Watt) | 17.30 kW |
| Physical Characteristics | |
| Length | 68.90" (1750.06 mm) |
| Mount Type | Cabinet-mountable |
| Rack-mountable | |
| Rack Height | 0U |
| Width | 2" (50.80 mm) |
| Depth | 2.10" (53.34 mm) |
| Mounting Orientation | Vertical/Toolless |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | P36E01M |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 |
| Manufacturer | PANDUIT CORP |
| Product Model | G5 |
| Product Name | P36E01M Monitored Switched PDU |
| Product Line | SmartZone |
| Product Series | MS |
| Brand Name | Panduit |
| Technical Information | |
| Protection Type | Overcurrent Protection |
| Overload Protection | |
| Circuit Protection | |
| Plug/Connector Type | IEC 60309 3P+N+E 6h 30A (IP67) |
| Phase | Three Phase |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| PDU Type | Monitored |
| Receptacle Detail | 12 x IEC 60320 C19 |
| 24 x IEC 60320 C13 |
