À propos du produit

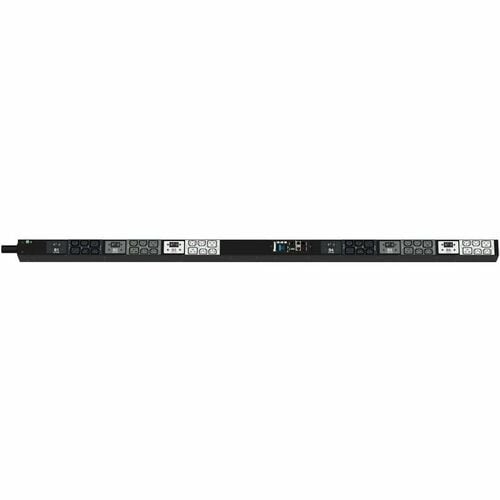

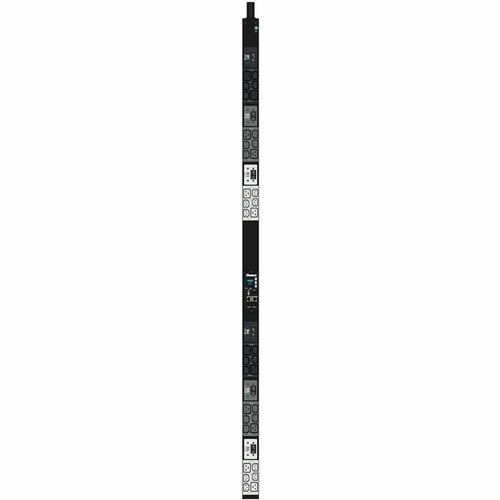

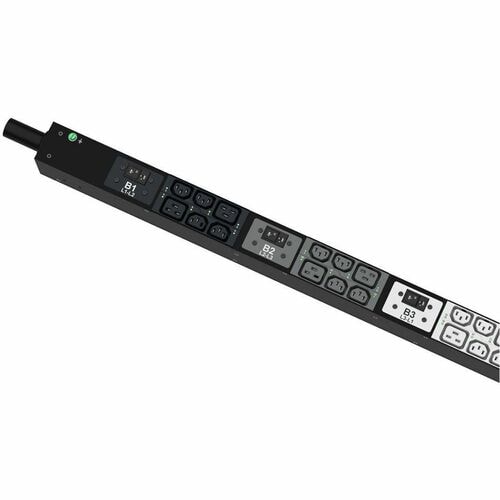

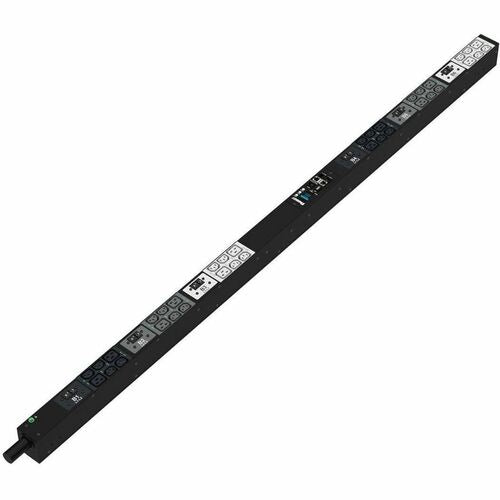

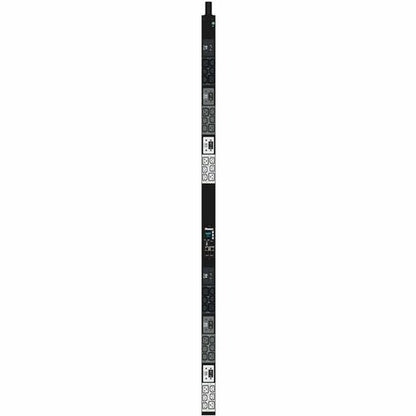

The Panduit™ G6 Monitored & Switched per Outlet PDU features (24) C13 and (12) C19 outlets. It is a 60 amp, 208 V, 3 phase PDU with a IEC 60309 3P+E 9h (IP44) input plug and a 10 foot (3m) power cord. The PDU is black.
- PDU is reliable for power protection and management solutions
- PDU provides active metering enabling energy optimization and circuit protection
- With switched PDU, remotely monitor, connect or disconnect data center loads
- Remotely control individual outlets for rebooting of locked equipment with switched PDUs
Spécifications techniques
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management | SNMP Network Card |
| Environmental Conditions | |
| Minimum Operating Temperature | 50°F (10°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | 284°F (140°C) |
| Maximum Storage Temperature | 24.8°F (-4°C) |
| Miscellaneous | |
| Application/Usage | Data Center |
| Switch | |
| Package Contents |
|
| Certifications & Standards |
|
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Input Current | 60 A |
| Input Frequency | 60 Hz |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | P36G31G |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 |
| Manufacturer | PANDUIT CORP |
| Product Name | G6 MSPO PDU, 60A, (24)C13, (12)C19, IEC 60309 3P+E 9h |
| Product Series | G6 |
| Brand Name | Panduit |
| Physical Characteristics | |
| Mount Type | Rack-mountable |
| Rack Height | 38U |
| Cord Length | 10 ft (3.05 m) |
| Height | 66" (1676.40 mm) |
| Width | 2.30" (58.42 mm) |
| Depth | 2.90" (73.66 mm) |
| Mounting Orientation | Vertical |
| Product Color | Black |
| Color Family | Black |
| Technical Information | |
| Features | Onboard Display |
| Plug/Connector Type | IEC 60309 3P+E 9H 60A (IP44) |
| Phase | Three Phase |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| Load Capacity (Watt) | 17.30 kW |
| PDU Type | Switched Outlet Monitored |
| Monitored | |
| Switched | |
| Receptacle Detail | 12 x IEC 60320 C19 |
| 24 x IEC 60320 C13 |
